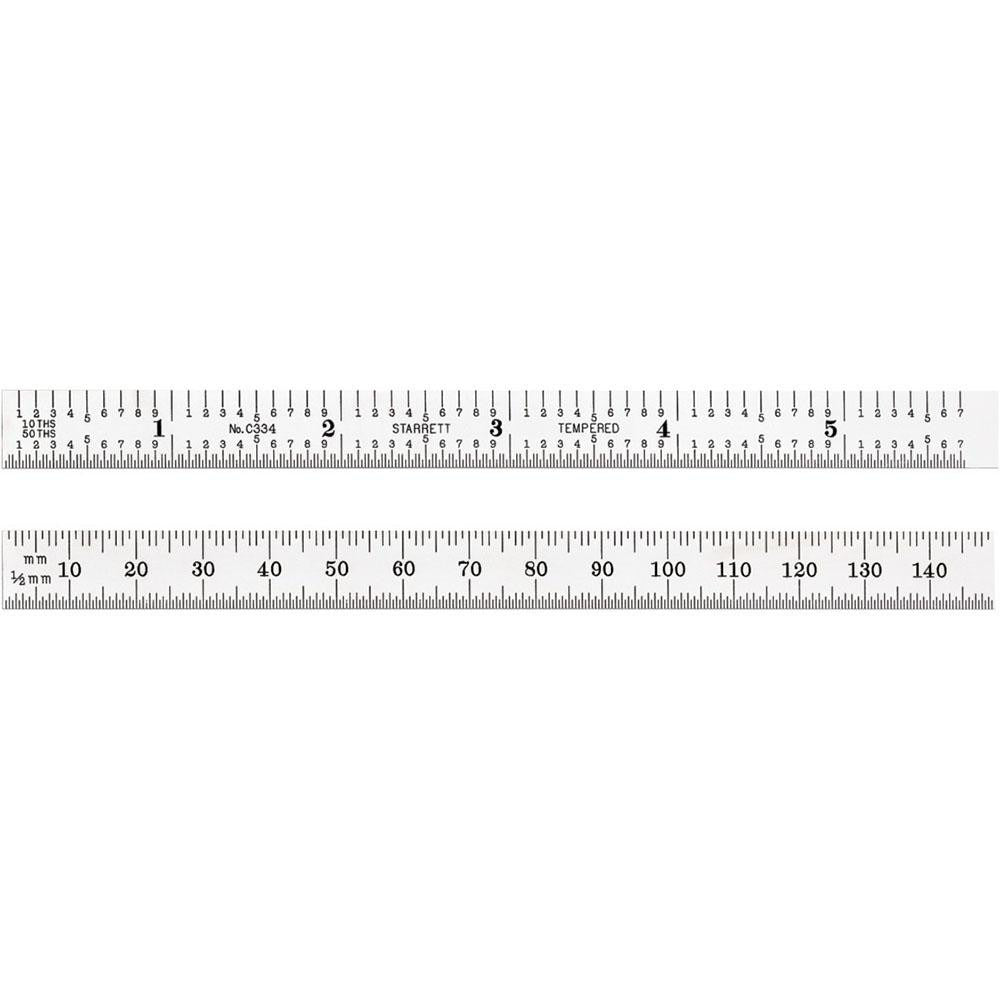

Starrett 56262 Flexible Steel Rule 5-3/4 in Decimal Metric

Product Description

The STARRETT 56262 is a flexible steel rule designed for layout, inspection, and measurement work in trade and industrial environments. Measuring 5-3/4 inches in overall length and 1/2 inch in overall width, this rule carries both decimal and metric graduations on a single blade, making it useful across mixed-unit work environments. The satin chrome-plated finish reduces glare and improves readability in shop lighting. At 0.032 pounds and 0.40 mm thick, the blade flexes to conform to contoured surfaces without sacrificing graduation legibility. Machinists, pipefitters, HVAC technicians, and sheet metal workers commonly keep a rule this size in a tool pouch for quick field measurements.

This rule is suited for residential and commercial trade applications where a compact, dual-graduation measuring tool is needed. The horizontal scale orientation and flexible construction make it practical for measuring in tight spaces, along curved surfaces, or inside enclosures where a rigid rule would not seat flat. The 150 mm blade length corresponds to the 5-3/4 inch nominal length, supporting seamless inch-to-metric cross-referencing on the same tool. No hook is included, and the blade is non-magnetic.

Key Features

• Flexible blade conforms to curved and contoured surfaces for accurate contact measurement
• Dual graduation system: decimal inch (0.02 inch and 1/50 inch) and metric (0.1 mm and 1 mm) on a single rule
• Satin chrome-plated finish minimizes glare and resists corrosion in shop environments
• Compact 5-3/4 inch (150 mm) length fits tool pouches and tight access areas
• 1/2 inch (12.70 mm) blade width provides a stable reading surface without bulk
• Lightweight at 0.032 pounds for comfortable extended use

Compatibility

Designed as a general-purpose flexible steel rule suitable for standard layout and inspection tasks in HVAC, plumbing, sheet metal, and mechanical trade applications.

Installation Notes

No installation is required for this measuring tool. Store the rule flat or in a protective sleeve to prevent set or permanent bend in the flexible blade. Avoid using the rule as a scraping or prying tool, as this can distort the blade and compromise graduation accuracy. Clean with a dry cloth after use in oily or wet environments to preserve the satin chrome finish.
