Starrett 53063 Edge Finder 0.2 in Head 1/2 in Shank Mechanical

Product Description

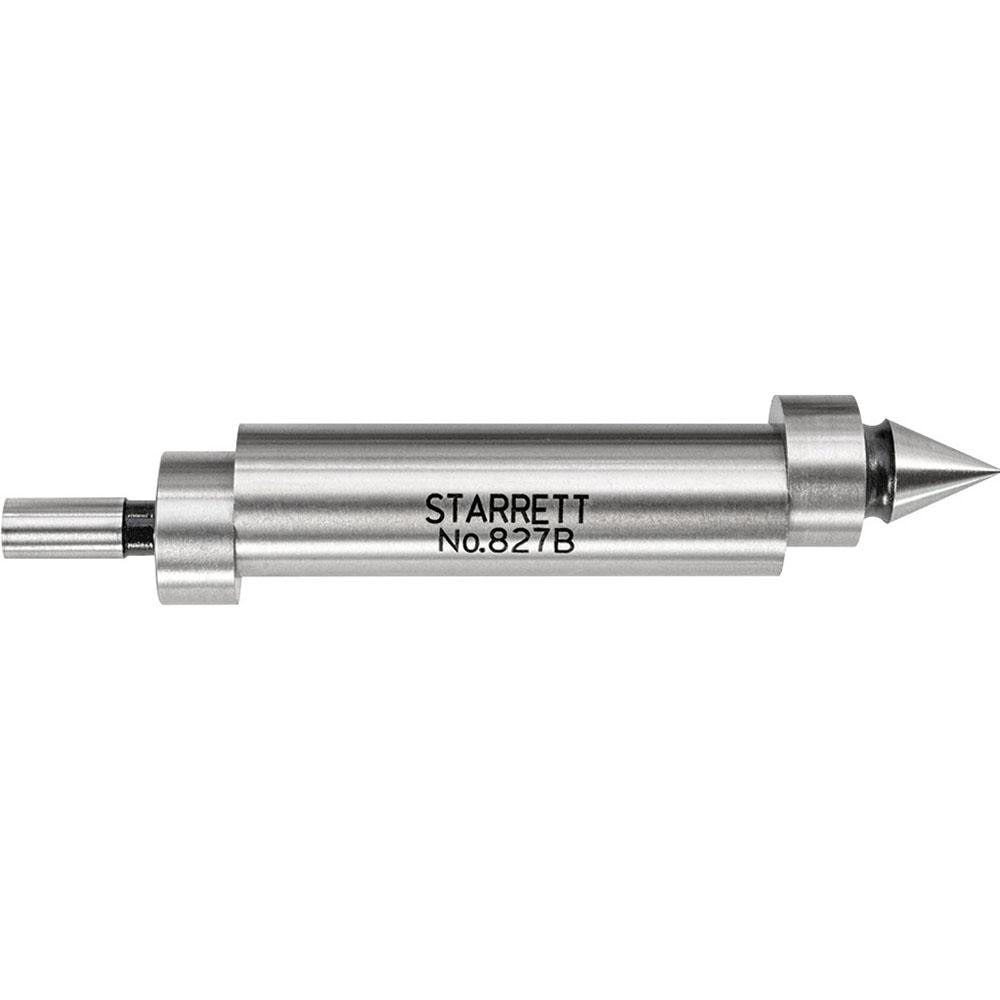

The STARRETT 53063 is a mechanical double-end edge finder designed for locating workpiece edges and reference points on milling machines, drill presses, and machining centers. The tool features a 0.2-inch conical and cylindrical contact head on a 1/2-inch shank, giving machinists a reliable, repeatable method to establish X and Y zero positions without electronics or batteries. At 2.5 inches overall length and constructed of steel, the 53063 is a compact, durable shop tool suited for both manual and CNC setup operations. Machinists, tool and die makers, and CNC operators are the primary installers and users.

The STARRETT 53063 is used in machine shop environments for workpiece edge location during setup on vertical milling machines and similar equipment. The double-end configuration provides both conical and cylindrical contact styles in a single tool, allowing the operator to select the contact geometry best suited to the workpiece surface. It is appropriate for production shops, tool rooms, and maintenance machining operations where fast, accurate part setup is required.

Key Features

• Double-end design with conical and cylindrical contact types in one tool
• 0.2-inch head diameter for precise edge location
• 1/2-inch shank diameter fits standard collets and drill chucks
• 2.5-inch overall length for clearance in typical milling setups
• Steel construction for durability in shop environments
• Mechanical operation requires no power source or batteries

Compatibility

Designed as a standard mechanical edge finder for use with milling machines, drill presses, and machining centers equipped with 1/2-inch collets or chucks.

Installation Notes
