Starrett 52800 666-3 Thickness Gauge 0.003 in (25 feet Roll) 30C287

Product Description

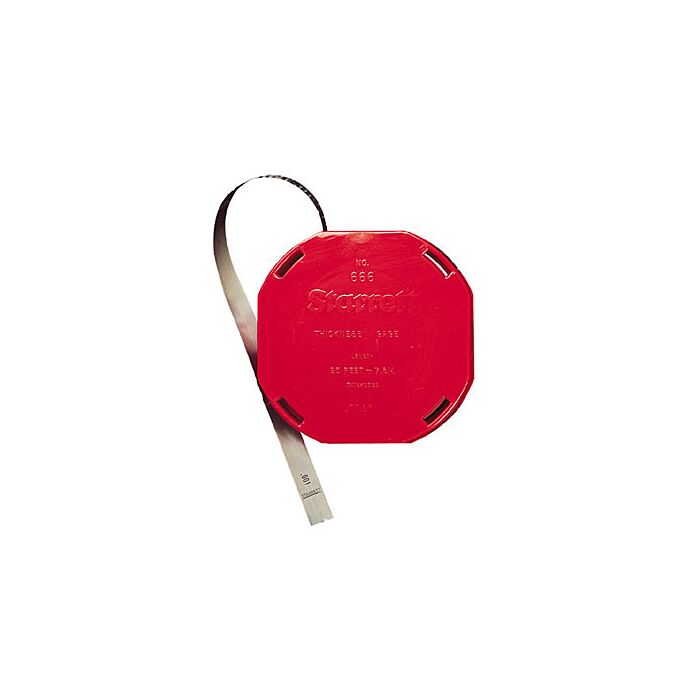

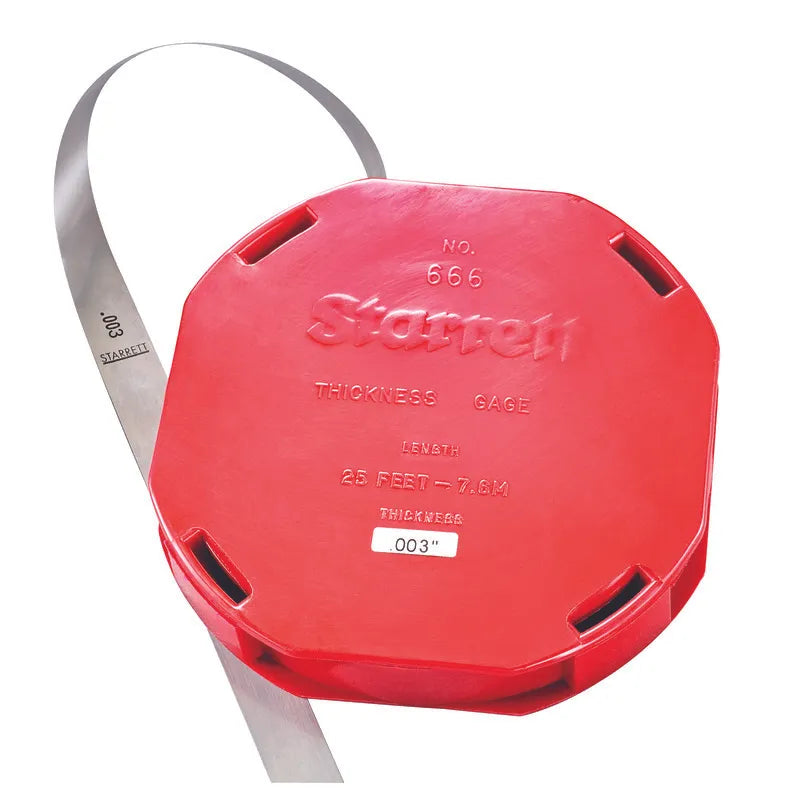

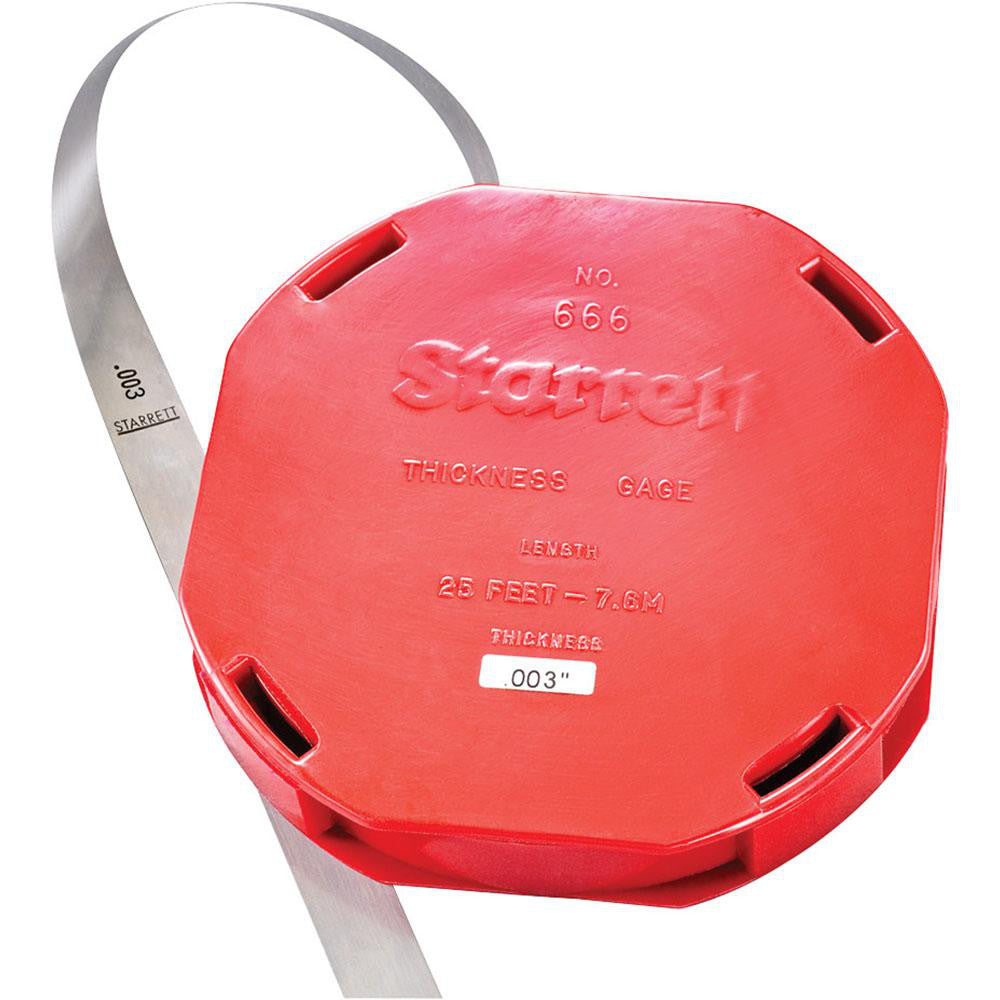

Starrett 52800 is a 0.003-inch tempered steel thickness gauge supplied as a 25-foot roll in a rewindable dispenser case. The roll is 1/2 inch (12.7 mm) wide, marked every 6 inches (150 mm), and provided as straight leaves for feeler and gap measurement. The dispenser permits retracting and snipping off exact lengths and can accommodate stock up to 0.015 inch (0.35 mm). Applications include automotive, aviation, and industrial measurement and setup tasks.

• 0.003 in (0.08 mm) tempered steel feeler stock on a continuous 25 ft (7.62 m) roll, 1/2 in (12.7 mm) wide
• Compact plastic rewindable dispenser case with markings every 6 in (150 mm) and ability to snip exact lengths
• Straight leaf type; dispenser handles stock up to 0.015 in (0.35 mm); used for automotive, aviation, industrial, jig and fixture work

Product Highlights

Tempered steel 0.003 in feeler stock, 25 ft roll, 1/2 in wide, rewindable dispenser marked every 6 in

Product Information

Standard Information

• Brand: STARRETT
• Manufacturer Part Number: 52800
• Country of Origin: China

Technical Specifications

• Brand: Starrett
• Manufacturer Part Number: 52800
• Model/Order Number: 666-3
• Thickness: 0.0030 in (0.08 mm)
• Length: 25 ft (7.62 m)
• Width: 1/2 in (12.7 mm)
• Material: Tempered steel
• Dispenser Type: Plastic rewindable dispenser case
• Markings Interval: Marked every 6 in (150 mm)
• Leaf Type: Straight
• Case Capacity (Maximum Stock Handled): Up to 0.015 in (0.35 mm)
• Applications: Automotive, aviation, industrial, jig, fixture, experimental work
• Country of Origin: China
• UPC: 049659528008
• Cross Reference: 30C287 / 52800
