Starrett 52682 Steel Rule 36in 4R Graduation Rigid

Product Description

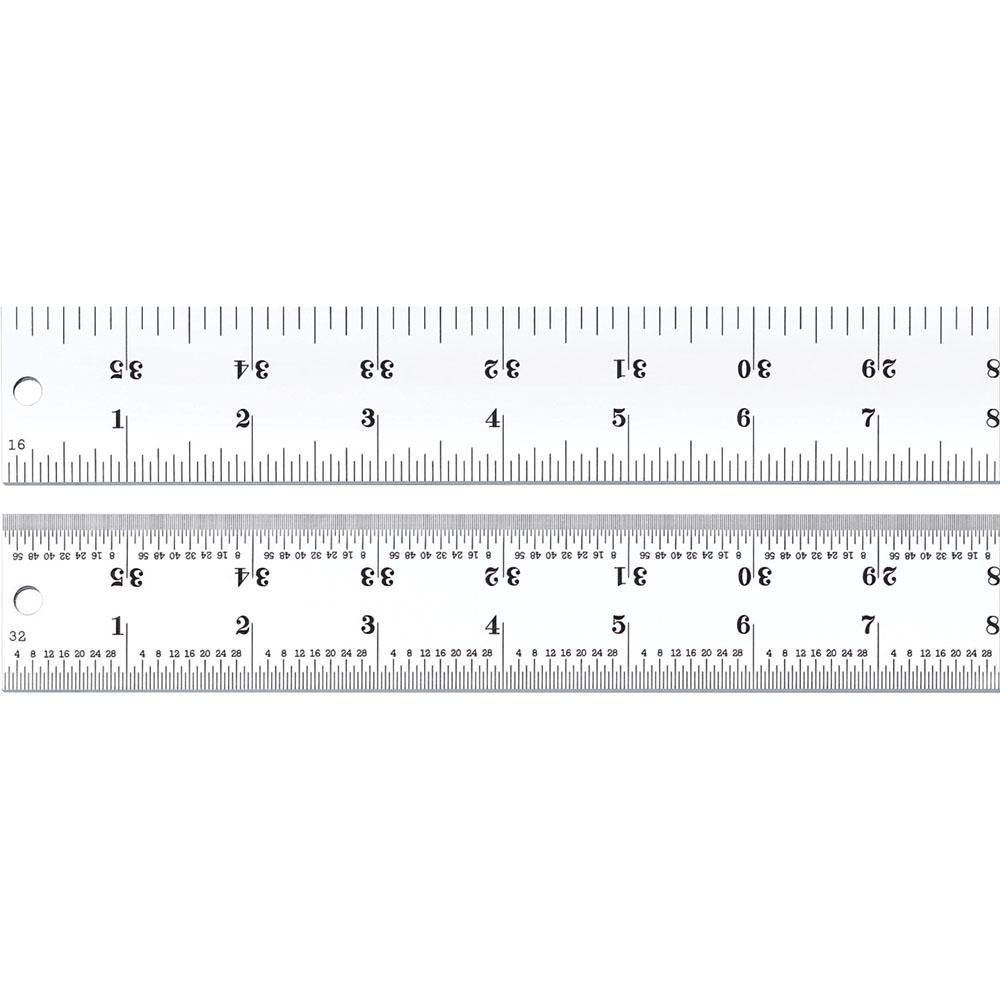

The STARRETT 52682 is a rigid steel rule designed for accurate linear measurement in professional trade and manufacturing environments. Measuring 36 inches in overall length and 1-1/4 inches in overall width, it features a 4R graduation pattern with four scales: 1/16, 1/32, 1/64, and 1/8 inch increments. The rule is made from spring steel with a satin chrome-plated finish that reduces glare and resists corrosion. At 0.050 inches thick, it maintains a rigid profile that stays flat against a workpiece. Machinists, pipefitters, fabricators, and HVAC sheet metal technicians rely on this type of rule for layout and inspection work.

This rule is suited for use in fabrication shops, mechanical rooms, plumbing rough-in, and HVAC ductwork layout where precise linear measurement is required over longer spans. The horizontal scale orientation makes it straightforward to read when laying out cuts or checking dimensions on flat stock. The 36-inch length covers full-yard measurements without extension, reducing the chance of cumulative error across multiple shorter rule placements. It is not magnetic and does not include a hook end, making it a direct-reading layout tool.

Key Features

• 36-inch overall length covers full-yard measurements in a single placement
• 4R graduation pattern includes 1/16, 1/32, 1/64, and 1/8 inch scales
• Spring steel construction maintains rigidity across the full length
• Satin chrome-plated finish reduces glare and resists surface corrosion
• 0.050-inch thickness provides a stable, flat reading edge
• Non-magnetic, no-hook design for straightforward direct-reading layout use

Compatibility

Designed as a general-purpose rigid steel rule for professional layout, fabrication, and inspection applications requiring a 36-inch graduated measuring tool.

Installation Notes

No installation is required for this hand tool. Keep the rule clean and dry to preserve the satin chrome finish and maintain legibility of the graduation markings. Avoid storing it in contact with abrasive surfaces that could scratch the scales. Inspect graduation markings periodically for wear if the rule is used in high-frequency production environments.
