Starrett 50315 Thickness Gage 0.0015 to 0.025

Product Description

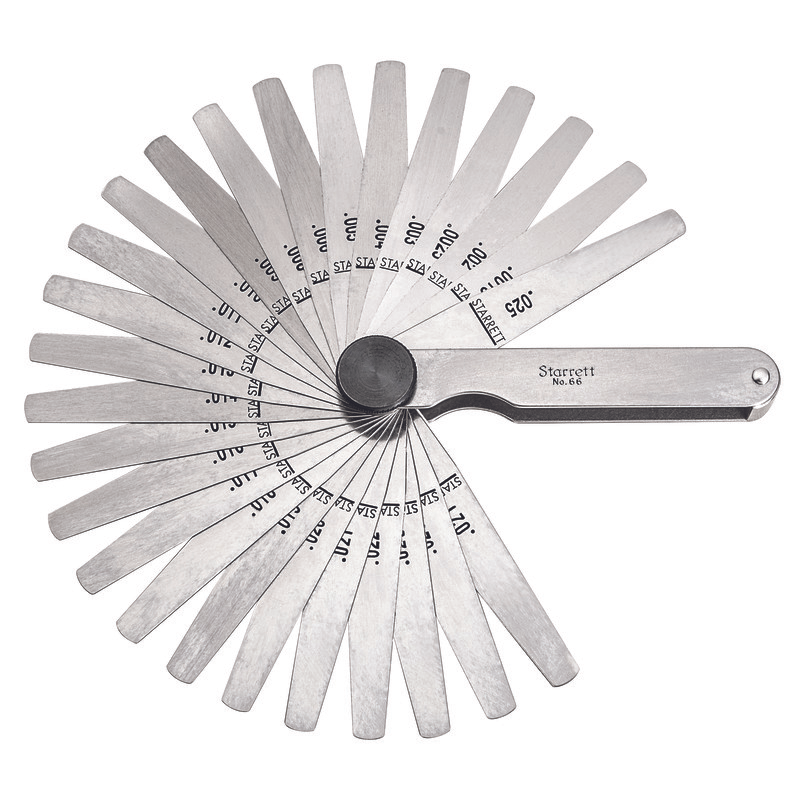

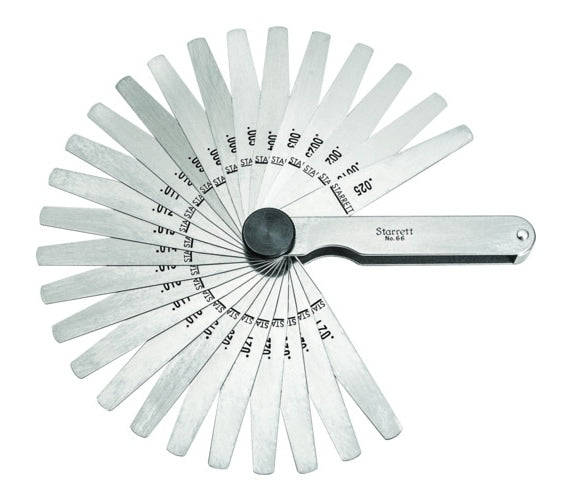

The STARRETT 66T Thickness Gage (MPN 50315) provides precise measurements for narrow slots and clearances. The tool is equipped with twenty-six tapered leaves made of tempered steel, clearly marked with thickness values in inches. The measurement range extends from zero point zero zero one five to zero point zero two five.

• Includes 26 tapered leaves for versatile measurement.
• Leaf thickness range: 0.0015 to 0.025 inches.
• Locking device secures leaves in position during measurement.

Product Highlights

This thickness gage is ideal for automotive, aviation, and equipment manufacturing applications, ensuring accurate thickness assessments.

Product Information

Standard Information

• Brand: Starrett
• MPN: 50315

Technical Specifications

• Gage Type: Thickness Gage
• Number of Leaves: 26
• Blade Length: 3 1/32 inches
• Material: Tempered Steel
• Locking Device: Yes
• Tolerance: +/- 0.00025 inches
• Weight: 0.19 lb
• Dimensions: 0.8 x 3.5 x 0.8 inches
