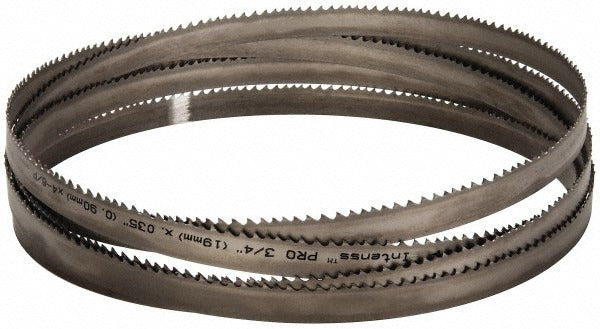

Starrett 20694 Welded Bandsaw Blade 4-6 Tpi Bi-metal

Product Description

The STARRETT 20694 is a welded bi-metal bandsaw blade engineered for cutting ferrous and non-ferrous metals in industrial and fabrication environments. The blade measures 14 feet 8 inches long and 3/4 inch wide, with a thickness of 0.035 inches. It runs a variable pitch of 4 to 6 teeth per inch using a raker tooth set and a positive rake angle, which helps reduce vibration and improve chip clearance during aggressive metal cutting. The high speed steel tooth tips are electron-beam welded to a flexible steel back, delivering durability through interrupted cuts and contour work. This is a professional-grade blade suited for shop band saws used in metal fabrication shops, maintenance facilities, and production environments.

The STARRETT 20694 is rated for cutting both ferrous and non-ferrous metals, including structural steel, angle iron, tubing, aluminum, and copper stock. The variable 4-6 TPI pitch pattern reduces harmonic vibration, which is especially useful when cutting varying cross-sections or bundled material. The straight tooth form with raker set promotes consistent chip evacuation and extends blade life on repetitive cuts. It is part of the Intenss PRO series, which is designed for metal-cutting band saws in production and heavy-duty maintenance applications.

Key Features

• Bi-metal construction with high speed steel teeth bonded to a flexible back for long service life
• Variable 4-6 TPI pitch reduces vibration and harmonics during cutting
• Raker tooth set with positive rake angle improves chip clearance and cutting efficiency
• Straight tooth form suited for consistent, repeatable cuts through solid stock and tubing
• Rated for both ferrous and non-ferrous metal applications
• Part of the Intenss PRO series, designed for demanding production band saw use

Compatibility

Designed as a direct-fit welded replacement blade for metal-cutting band saws accepting a 14-foot 8-inch blade length and 3/4-inch blade width. Verify your saw's blade length, width, and thickness requirements before installation.

Installation Notes

Installation should be performed by a qualified technician following the band saw manufacturer's blade change procedure. Disconnect and lock out power to the saw before removing the old blade or installing the new one. Confirm blade tension and tracking adjustment after installation per the saw manufacturer's specifications. Wear cut-resistant gloves when handling the blade, as tooth edges are sharp.
