Starrett 19485 Bi-metal Bandsaw Blade 10-14 Tpi

Product Description

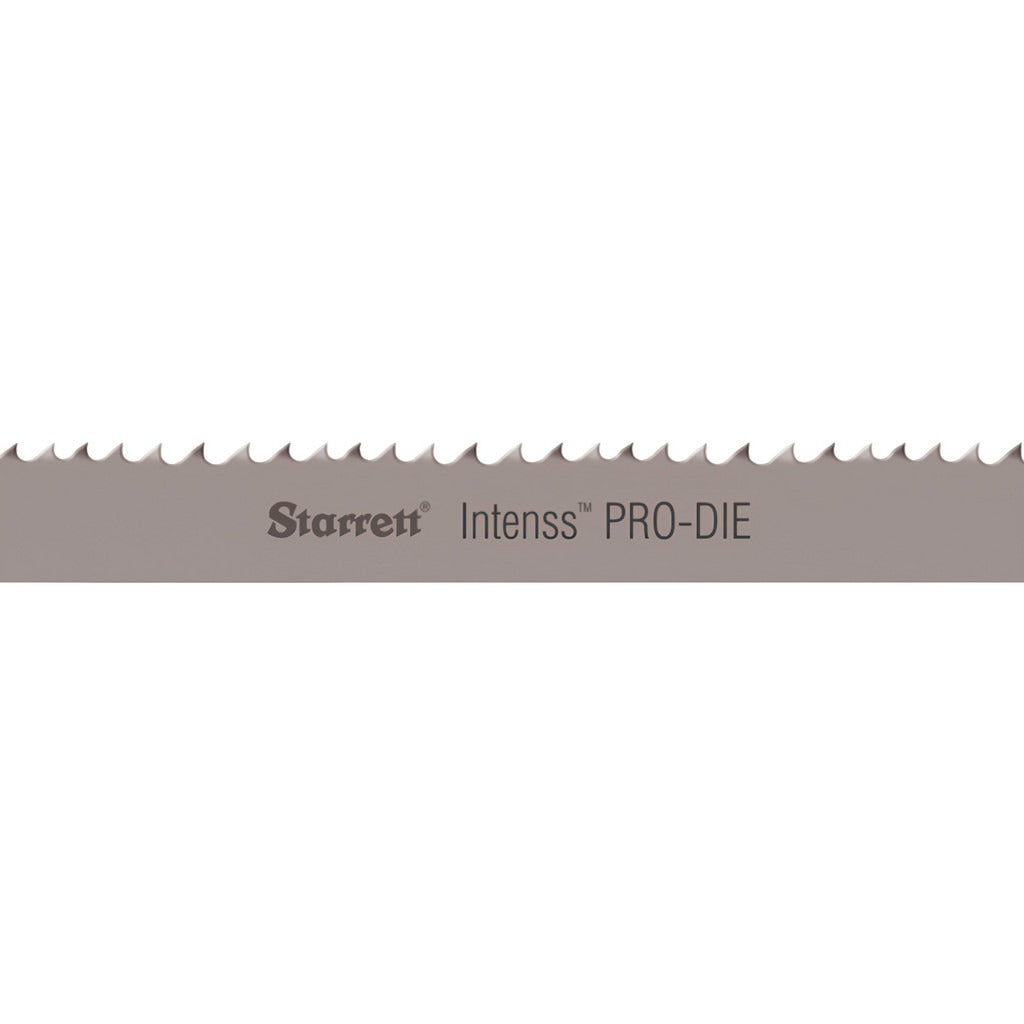

The STARRETT 19485 is a welded bi-metal bandsaw blade from the Intenss PRO-DIE series, designed for demanding metal-cutting applications in professional shop and fabrication environments. The blade measures 93.5 inches long and 0.5 inches wide, with a thickness of 0.035 inches. It features M42 high-speed steel teeth set in a raker pattern with a positive rake angle and variable pitch ranging from 10 to 14 TPI. That combination of variable pitch and M42 tooth material makes this blade well suited for interrupted cuts and a wide range of material thicknesses. Licensed machinists, fabricators, and tool-room technicians are the primary installers of this type of blade.

This blade is intended for contour cutting and straight cutting of ferrous and non-ferrous metals, including steel, stainless steel, exotic steel alloys, and non-ferrous metals. The variable pitch from 10 to 14 TPI reduces harmonic vibration and chatter during the cut, which is especially useful when transitioning between varying cross-sections in a single workpiece. It is suited for vertical and horizontal metal-cutting band saws commonly found in fabrication shops, tool rooms, and industrial maintenance facilities.

Key Features

• Bi-metal construction with M42 high-speed steel teeth for extended blade life on hard and exotic metals
• Variable pitch of 10 to 14 TPI reduces vibration and improves surface finish on varying stock thicknesses
• Raker tooth set with positive rake angle for aggressive, efficient metal removal
• Flexible back type resists fatigue cracking during continuous operation
• Contour cutting capable for curved and irregular profiles
• Welded construction provides a consistent, balanced blade join

Compatibility

Designed for metal-cutting band saws that accept a 93.5-inch blade length with a 0.5-inch width. Verify your saw's blade length specification and wheel geometry before installation. Suitable for cutting steel, stainless steel, exotic steel alloys, and non-ferrous metals.

Installation Notes

Band saw blade installation should be performed by a qualified machinist or technician familiar with the specific saw model. Power down and lock out the saw before removing the old blade or installing the new one. Set blade tension and tracking according to the saw manufacturer's specifications before making a test cut. Inspect blade guides, thrust bearings, and wheel tires for wear before installing a new blade, as worn guides accelerate blade fatigue.
