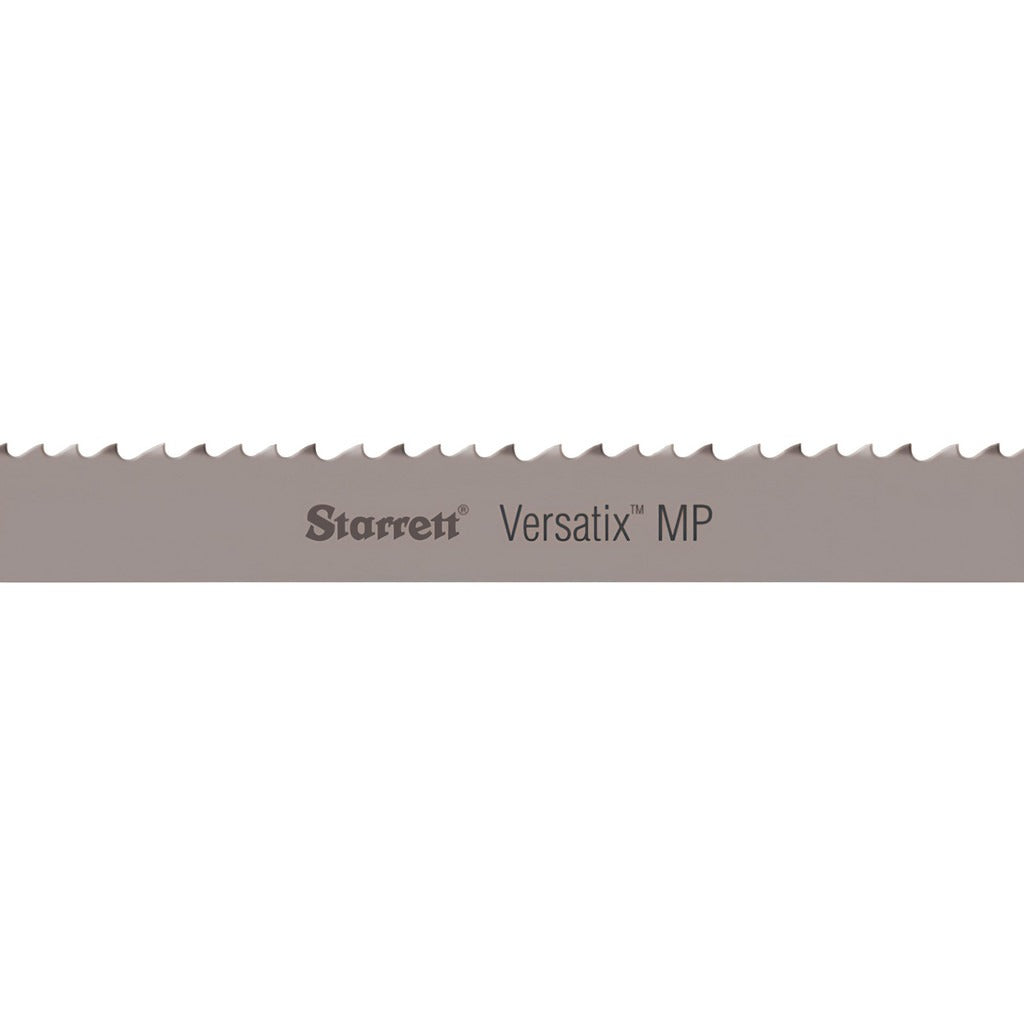

Starrett 17063 Bi-metal Bandsaw Blade 10-14 Tpi

Product Description

The STARRETT 17063 is a welded bi-metal bandsaw blade designed for demanding metal-cutting applications in fabrication and maintenance environments. Built on the Versatix MP platform, this blade combines an M42 high speed steel tooth edge with a flexible alloy back, delivering durability through interrupted cuts and contour work. It measures 133 inches in total length and 0.75 inches wide, with a 0.035-inch thickness and a variable-pitch tooth pattern ranging from 10 to 14 TPI. The raker tooth set and positive rake angle promote aggressive chip evacuation and reduce heat buildup during sustained cuts. It is installed by machinists, metal fabricators, and industrial maintenance technicians.

This blade is sized for horizontal and vertical bandsaws accepting a 133-inch loop. The variable 10 to 14 TPI pitch pattern reduces vibration and harmonic chatter, making it well suited for cutting structural steel sections including angle iron, channel, tubing, and solid bar stock. The M42 cobalt high speed steel tooth material extends edge life compared to standard M2 bi-metal blades, particularly on harder or work-hardened materials. The straight tooth form and raker set produce a consistent kerf on ferrous stock.

Key Features

• M42 cobalt high speed steel teeth for extended life on structural steel and ferrous alloys
• Variable pitch 10 to 14 TPI reduces vibration and chatter during cuts
• Raker tooth set with positive rake angle promotes efficient chip clearance
• Flexible alloy back resists fatigue cracking under continuous band tension
• Welded loop construction — no mechanical joint to introduce stress concentration
• Versatix MP series engineered for structural steel applications

Compatibility

Designed to fit bandsaw machines accepting a 133-inch welded loop blade, 0.75 inches wide and 0.035 inches thick. Verify your saw's blade length specification, wheel diameter, and blade guide clearance before installation.

Installation Notes

Blade installation should be performed by a qualified machinist or maintenance technician with the saw fully de-energized and the power source locked out per applicable OSHA lockout/tagout procedures. Inspect wheel tires, guides, and blade guards before mounting a new blade. Set blade tension and tracking according to the saw manufacturer's specifications before running the blade under load. Do not exceed the blade speed rating for the material being cut.
