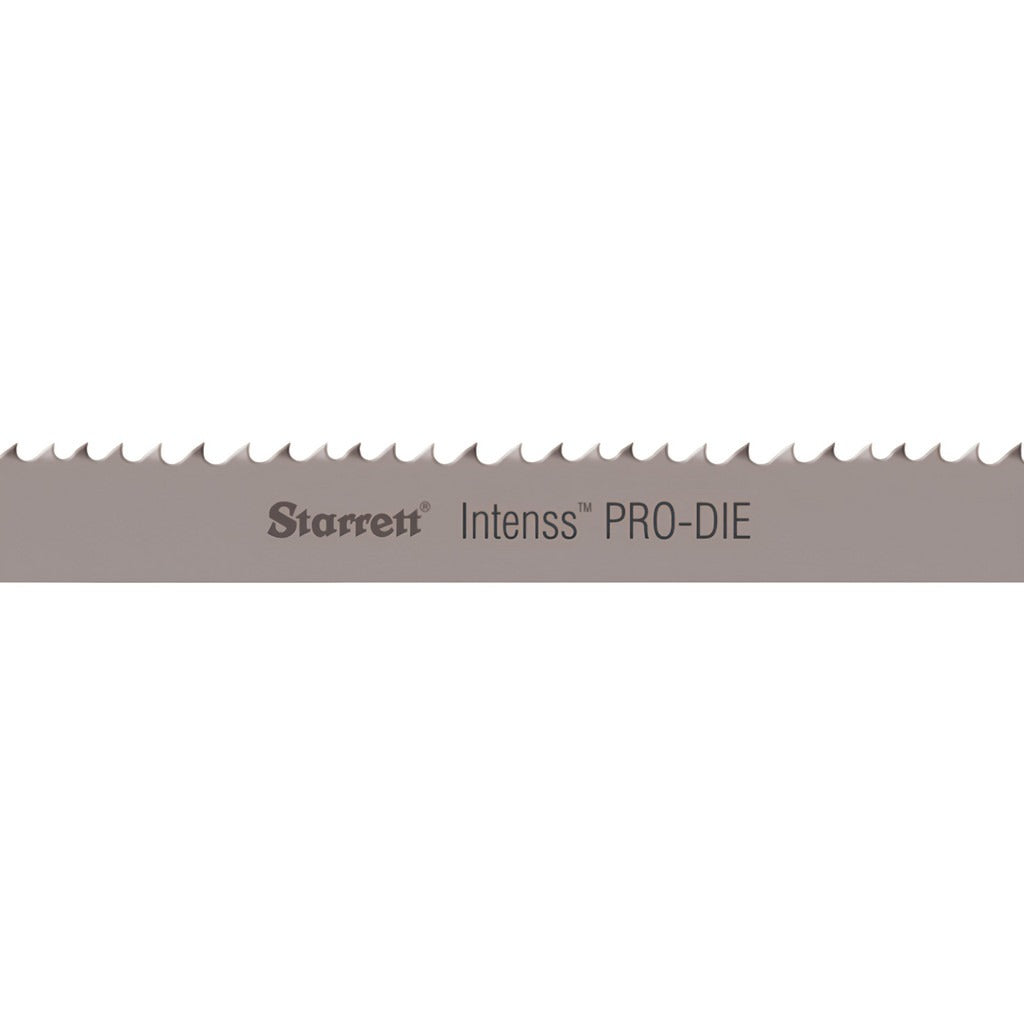

Starrett 16589 Welded Bandsaw Blade 4 Tpi Bi-metal M42

Product Description

The STARRETT 16589 is a bi-metal welded bandsaw blade from the Intenss PRO-DIE series, designed for demanding contour and straight cutting applications on metal. The blade measures 92 inches long and 1/2 inch wide, with a thickness of 0.025 inches and a constant 4 TPI hook tooth profile. The cutting edge is ground from M42 high-speed steel teeth bonded to a flexible backing, making it well suited for production cutting of ferrous and non-ferrous metals. Licensed HVAC, plumbing, and mechanical contractors as well as metalworking tradespeople use blades of this type on stationary vertical or horizontal band saws.

This blade is built for cutting steel, stainless steel, exotic steel alloys, and non-ferrous metals. The raker tooth set and positive rake angle help clear chips efficiently during contour cutting passes. The constant 4 TPI pitch makes it most effective on solid stock and thick-walled sections where a coarser pitch provides the chip clearance needed to maintain feed rates and prevent tooth loading. It is sold as a single pre-welded loop ready to install.

Key Features

• M42 high-speed steel teeth bonded to a flexible bi-metal backing for extended blade life on tough alloys
• Hook tooth form with positive rake angle for aggressive, efficient chip removal
• Raker tooth set delivers consistent chip clearance on solid and thick-section metal stock
• Constant 4 TPI pitch optimized for cutting steel, stainless steel, exotic steel, and non-ferrous metals
• Flexible back construction reduces stress cracking and extends blade fatigue life
• Pre-welded loop — no field welding required, installs directly on compatible band saw wheels

Compatibility

Designed as a drop-in replacement or production-stock welded bandsaw blade for vertical and horizontal metal-cutting band saws that accept a 1/2 inch wide blade on a 92 inch wheel path. Confirm wheel spacing and blade guide clearance before installation.

Installation Notes

Blade installation should be performed by a qualified machine operator or maintenance technician familiar with band saw safety procedures. Disconnect and lock out the saw from its power source before removing the old blade or mounting the new one. Verify blade tension using the saw manufacturer's tensioning guide for 1/2 inch bi-metal blades, and confirm blade tracking before resuming cuts. Eye protection and cut-resistant gloves are required when handling bandsaw blades.
