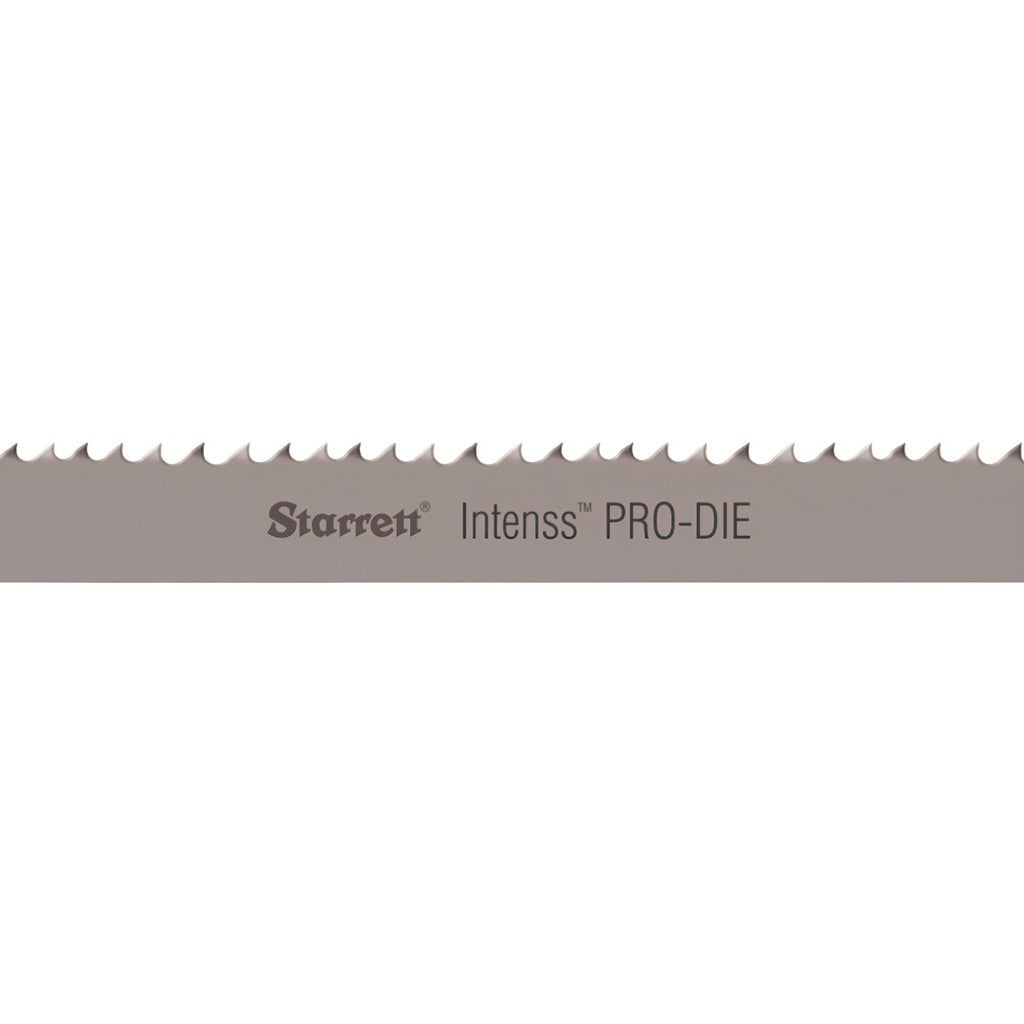

Starrett 16309 Welded Bandsaw Blade 130 in Variable Pitch

Product Description

The STARRETT 16309 is a welded bi-metal bandsaw blade from the Intenss PRO-DIE series, designed for demanding metal cutting applications in fabrication, tool and die, and maintenance shops. It measures 130 inches long and 1/2 inch wide, with a blade thickness of 0.025 inches. The M42 high speed steel tooth tips and variable pitch tooth pattern (14-18 TPI) reduce vibration and harmonics during cuts, extending blade life and improving surface finish on challenging materials. Licensed tradespeople and skilled fabricators are the primary installers of this blade.

This blade is suited for cutting steel, stainless steel, exotic steel, and non-ferrous metals on vertical or horizontal bandsaws. The variable pitch design makes it effective for both thin-section and heavier stock cuts, reducing the risk of blade chatter and tooth stripping. It is a strong fit for production shops, tool rooms, and metal service centers where consistent, clean contour cutting is required on a range of ferrous and non-ferrous workpieces.

Key Features

• M42 high speed steel teeth for long service life on tough alloys
• Variable pitch (14-18 TPI) reduces vibration and noise during cutting
• Wavy tooth set minimizes burr and improves cut quality
• Flexible back type resists fatigue and cracking through continuous use
• Contour cutting capable for curved and irregular profiles
• Welded construction for use on standard bandsaw machines

Compatibility

Designed as a welded replacement bandsaw blade for bandsaws accepting a 130-inch blade length with a 1/2-inch blade width. Compatible with machines set up to run bi-metal blades at 14-18 TPI variable pitch.

Installation Notes

Bandsaw blade replacement should be performed by a qualified machinist or trained technician following the machine manufacturer's guidelines. Always disconnect or lock out power to the saw before opening blade guards or handling the blade. Wear cut-resistant gloves when handling the coiled blade, as the teeth and spring tension present a laceration hazard. Verify blade tracking and tension are properly set per machine specifications before resuming operation.
