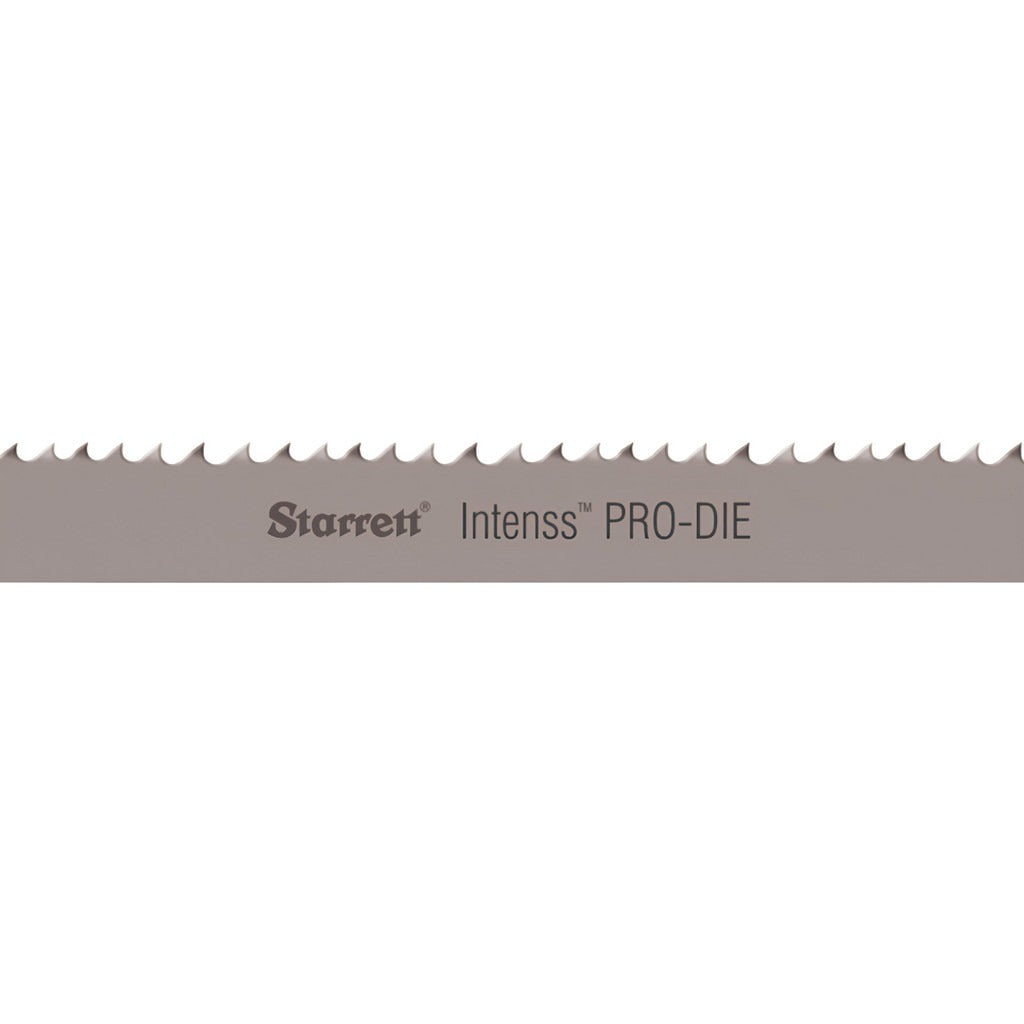

Starrett 16244 Bi-metal Bandsaw Blade 8-12 Tpi

Product Description

The STARRETT 16244 is a welded bi-metal bandsaw blade from the Intenss PRO-DIE series, designed for demanding contour and straight cutting on metal materials. Measuring 7 feet 11.5 inches in length and 0.5 inches wide with a 0.025 inch thickness, this blade runs on standard vertical bandsaws used in metalworking shops and fabrication environments. The M42 high-speed steel tooth tips bonded to a flexible back deliver variable-pitch performance across an 8-12 TPI range, reducing vibration and harmonic chatter during cuts. Blade installation and tensioning is handled by machinists and metalworking technicians working with production or job-shop bandsaws.

This blade is suited for cutting steel, stainless steel, exotic steel alloys, and non-ferrous metals. The variable 8-12 TPI pitch pattern makes it effective across a range of material thicknesses and cross-sections, from thin-wall tubing to solid bar stock. A positive rake angle on each tooth promotes aggressive chip clearance and faster feed rates through tough alloys. The raker tooth set provides consistent chip removal in both contour cutting and straight cutting applications, making this blade a practical choice for shops that cut a variety of metal profiles throughout the day.

Key Features

• Bi-metal construction with M42 high-speed steel tooth tips for extended cutting life in hard metals
• Variable 8-12 TPI pitch reduces vibration and harmonic noise during cuts
• Raker tooth set promotes efficient chip clearance in both straight and contour cuts
• Positive rake angle increases cutting aggression and feed rate through tough alloys
• Flexible back material allows the blade to track smoothly around bandsaw wheels without fatigue cracking
• Contour cutting capable for curved and irregular metal profiles

Compatibility

Designed for vertical metal-cutting bandsaws that accept a blade measuring 7 feet 11.5 inches in length and 0.5 inches in width. Confirm wheel spacing, blade guide clearance, and tension capacity before installation.

Installation Notes

Bandsaw blade installation should be performed by a qualified machinist or metalworking technician. Power down and lock out the bandsaw before removing the old blade or threading the new one through the blade guides. Verify correct blade tracking and tension per the saw manufacturer specifications before making any cuts. Blade guarding must be properly reinstalled and adjusted before returning the machine to service.
