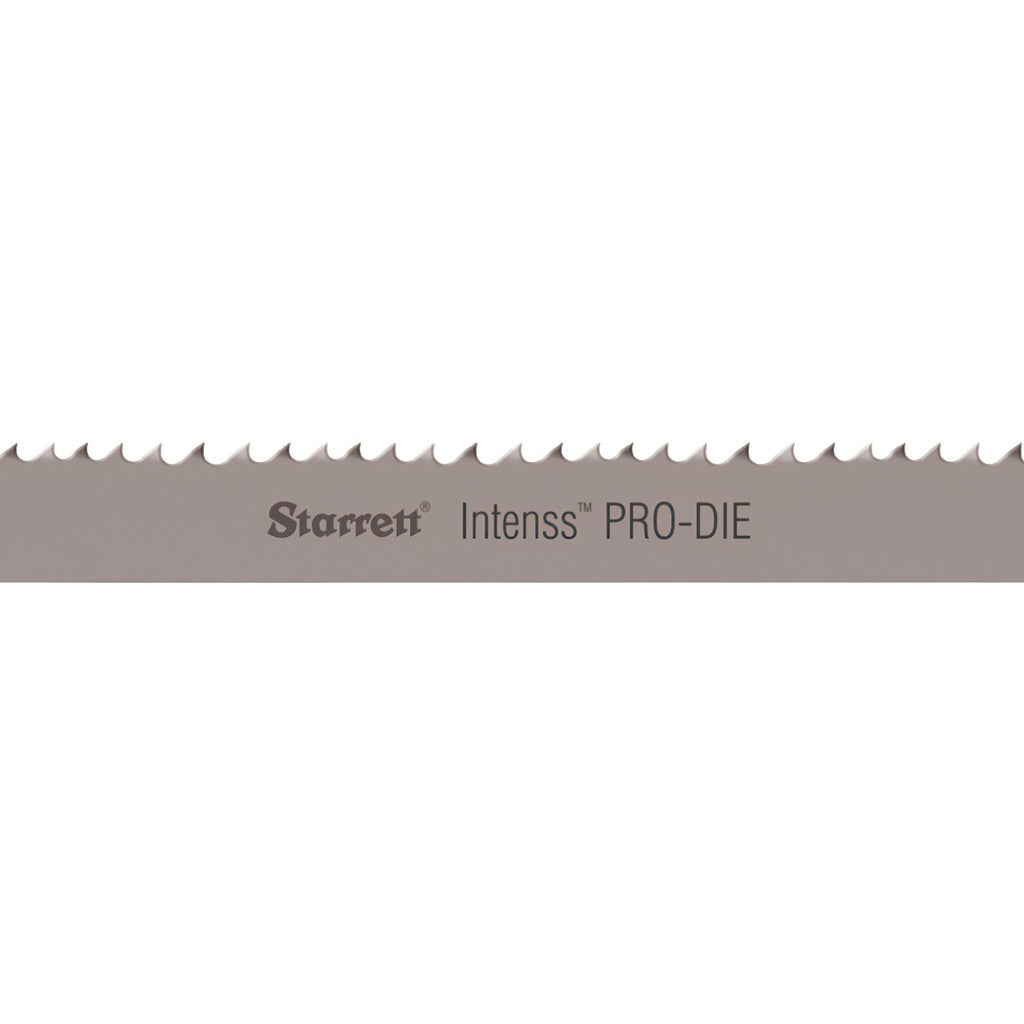

Starrett 16138 Bi-metal Bandsaw Blade 10-14 Tpi

Product Description

The STARRETT 16138 is a bi-metal welded bandsaw blade engineered for demanding metal-cutting applications in industrial and shop environments. At 7 feet 9 inches long and 1/2 inch wide, with a 0.025-inch thickness and a variable 10-14 TPI pitch pattern, this blade is built for cutting steel, stainless steel, exotic steel, and non-ferrous metals. The M42 high-speed steel tooth material offers superior edge retention under heat and load. A positive rake angle and raker tooth set work together to deliver efficient chip evacuation and consistent cut quality. Metalworking tradespeople and machine operators will find this blade suited to production and maintenance cutting on contour-cutting bandsaws.

The STARRETT 16138 is part of the Intenss PRO-DIE series, designed for contour cutting applications on vertical bandsaws. The variable 10-14 TPI pitch reduces harmonic vibration during the cut, making it effective across a range of metal wall thicknesses and profiles. Typical applications include fabrication shops, tool-and-die operations, and maintenance facilities cutting structural steel, stainless tubing, exotic alloys, and non-ferrous materials. The flexible back type allows the blade to handle curved and contour cuts without premature fatigue cracking.

Key Features

• Bi-metal construction with M42 high-speed steel teeth for extended blade life in tough metals
• Variable 10-14 TPI pitch reduces vibration and noise during cutting
• Positive rake angle promotes aggressive, efficient material removal
• Raker tooth set with straight tooth form provides balanced chip clearance
• Flexible back type supports contour and radius cutting without fatigue failure
• Welded construction delivers consistent blade tension and tracking on bandsaw wheels

Compatibility

Designed for vertical bandsaws accepting a 7 foot 9 inch blade length with a 1/2 inch blade width. Suitable for cutting steel, stainless steel, exotic steel, and non-ferrous metals as stated by the manufacturer.

Installation Notes

Blade installation and tensioning should be performed by a qualified machinist or metalworking technician with the bandsaw powered down and isolated from its power source. Follow the bandsaw manufacturer's specified tension and tracking procedures for 1/2-inch blades before running the machine. Inspect blade guides and thrust bearings for wear before mounting a new blade, as worn guides accelerate blade fatigue. Do not exceed the blade speed rating of the saw for the material being cut.
