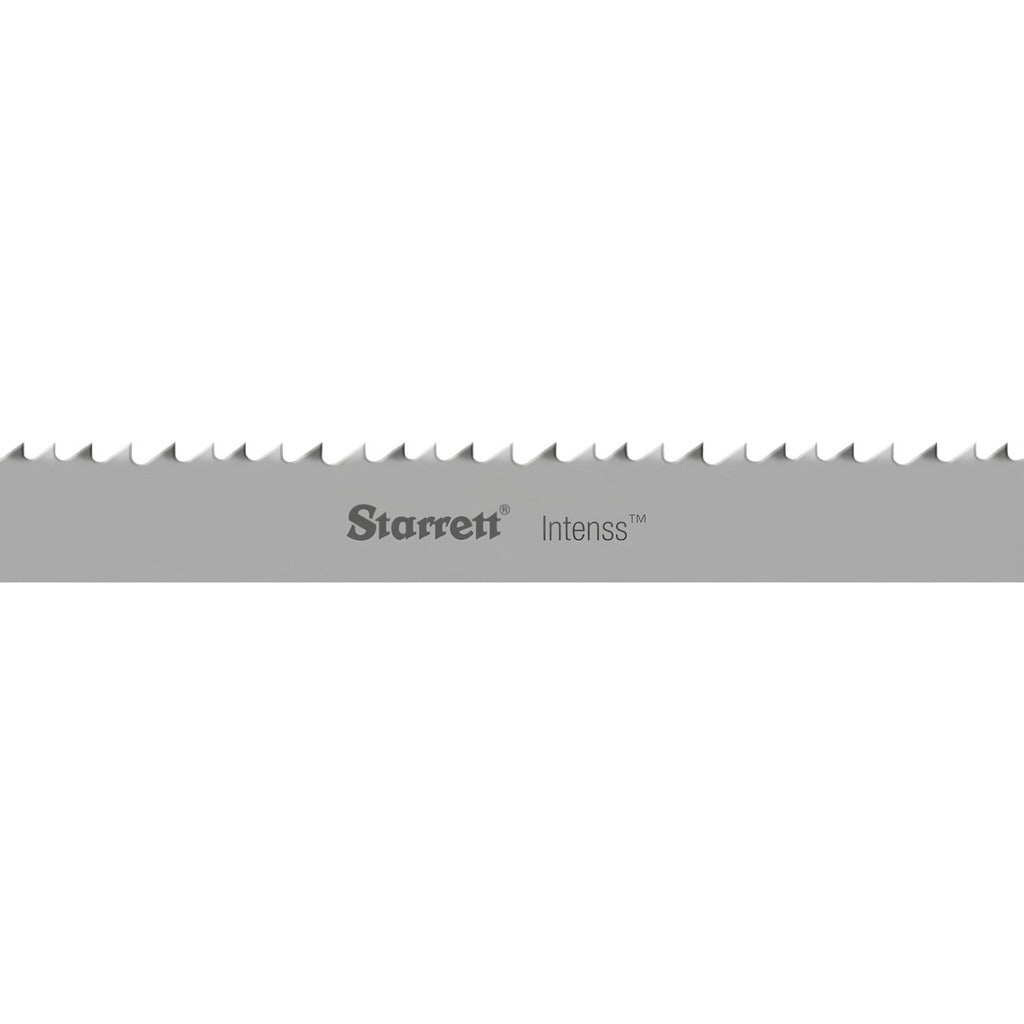

Starrett 16136 Welded Bandsaw Blade 4-6 Tpi Bi-metal

Product Description

The STARRETT 16136 is a welded bi-metal bandsaw blade engineered for continuous contour and straight cutting of ferrous and non-ferrous metals. Built on the Intenss series platform, it measures 12 feet 4 inches in length, 1 inch in width, and 0.035 inches thick. The blade uses M42 high speed steel teeth with a variable pitch of 4 to 6 TPI and a raker tooth set, which reduces harmonic vibration and helps maintain consistent chip load across varying stock profiles. The flexible back construction allows the blade to track smoothly under continuous cycling conditions, making it suitable for production bandsaw applications.

This blade is intended for use in stationary horizontal and vertical metal-cutting bandsaws in commercial fabrication shops, job shops, and maintenance facilities. The variable 4-6 TPI pattern suits a range of cross-sections and material thicknesses in ferrous metals such as structural steel, carbon steel, and alloy bar stock, as well as non-ferrous metals including aluminum, brass, and copper profiles. Installation is performed by a machinist or maintenance technician as part of routine blade changeout or first-time machine setup.

Key Features

• M42 high speed steel teeth for extended cutting life in tough ferrous and non-ferrous alloys
• Variable 4-6 TPI pitch reduces vibration and improves cut quality across varying cross-sections
• Raker tooth set provides efficient chip clearance during metal-cutting operations
• Flexible back construction supports consistent blade tracking under continuous use
• Contour cutting capable for curved and irregular profiles
• Positive rake angle promotes aggressive, efficient material removal

Compatibility

Designed as a welded-loop replacement blade for stationary metal-cutting bandsaws that accept a blade measuring 12 feet 4 inches in length, 1 inch in width, and 0.035 inches in thickness with a standard 4-6 TPI variable-pitch bi-metal specification.

Installation Notes

Blade installation and tensioning should be performed by a qualified machinist or industrial maintenance technician following the bandsaw manufacturer's service documentation. Disconnect and lock out the machine from its power source before removing the worn blade or mounting the new one. Inspect blade guides, wheel tires, and blade tracking alignment before bringing the saw back into service. Do not exceed the blade speed and tension ratings specified for the host machine.
