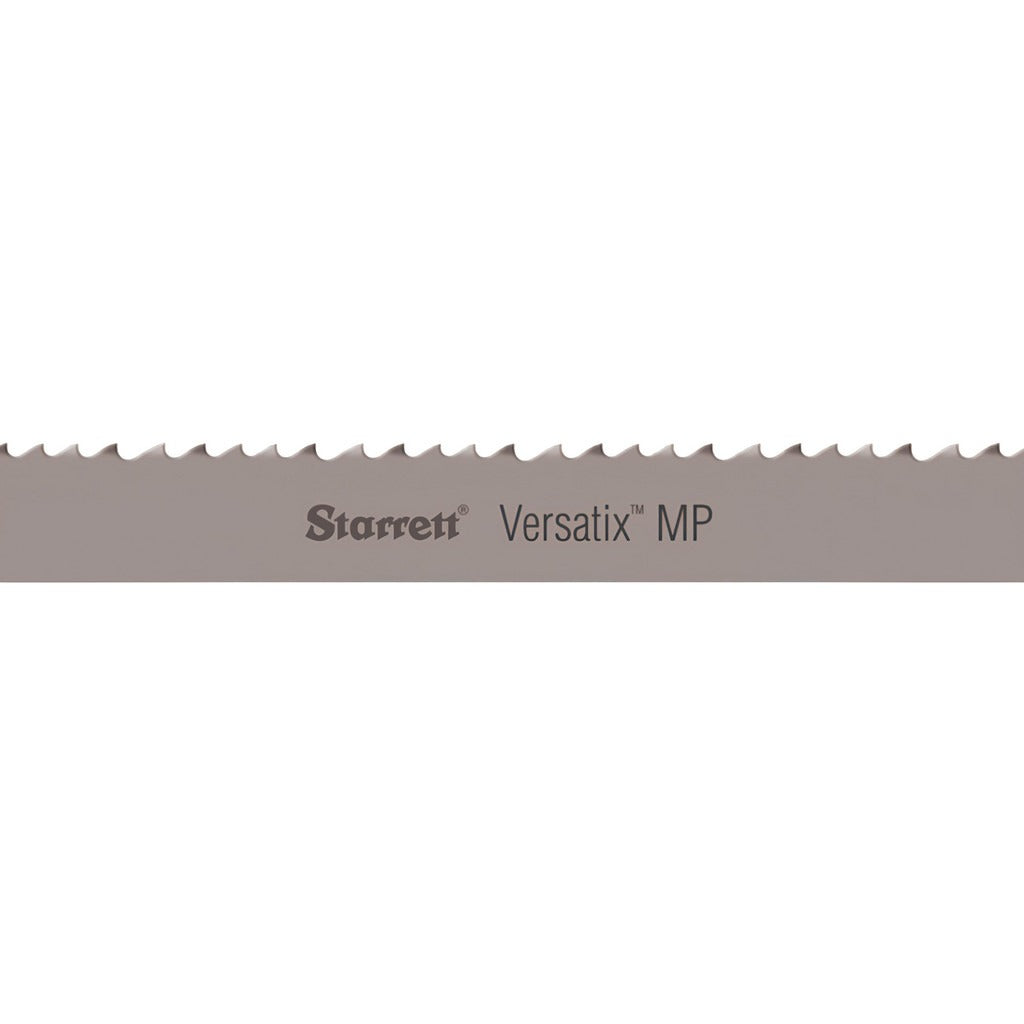

Starrett 15414 Welded Bandsaw Blade 10-14 Tpi Bi-metal

Product Description

The STARRETT 15414 is a welded bi-metal bandsaw blade engineered for cutting structural steel and other demanding materials in professional fabrication and metalworking environments. Measuring 195 inches long and 3/4 inch wide with a 0.035 inch thickness, this blade runs on stationary vertical and horizontal band saws used in shops and manufacturing facilities. The M42 high speed steel tooth material provides heat resistance and edge retention during prolonged cuts. Variable pitch tooth spacing in the 10-14 TPI range reduces vibration and harmonics, resulting in cleaner cuts and longer blade life compared to fixed-pitch alternatives.

The STARRETT 15414 is suited for structural steel cutting applications including angle iron, tubing, solid bar, and similar ferrous stock. The Versatix MP series is designed for production environments where a single blade must handle varying cross-sections and material thicknesses. It is installed and used by metal fabricators, pipefitters, ironworkers, and maintenance machinists operating band saws that accept 195-inch loop blades. The raker tooth set and positive rake angle promote aggressive chip clearance on each cutting stroke.

Key Features

• Bi-metal construction with M42 high speed steel teeth bonded to a flexible alloy back for durability and fatigue resistance
• Variable pitch 10-14 TPI reduces vibration and chatter on structural steel cuts
• Raker tooth set with positive rake angle promotes efficient chip evacuation
• Flexible back type resists cracking under the constant flexing of bandsaw wheel contact
• Welded loop blade ready for direct installation with no field joining required
• Versatix MP series designed for variable cross-section and production cutting

Compatibility

Designed as a direct-fit welded loop replacement for band saws accepting a 195-inch blade length with a 3/4 inch blade width and 0.035 inch thickness. Verify your saw's blade length, width, and thickness specifications before installation.

Installation Notes

Band saw blade replacement should be performed by a qualified technician following the saw manufacturer's guidelines. Disconnect and lock out electrical power to the band saw before removing or installing any blade. Wear cut-resistant gloves when handling the blade loop, as teeth remain sharp during installation. Confirm proper blade tension per the saw manufacturer's tension gauge before resuming operation.
