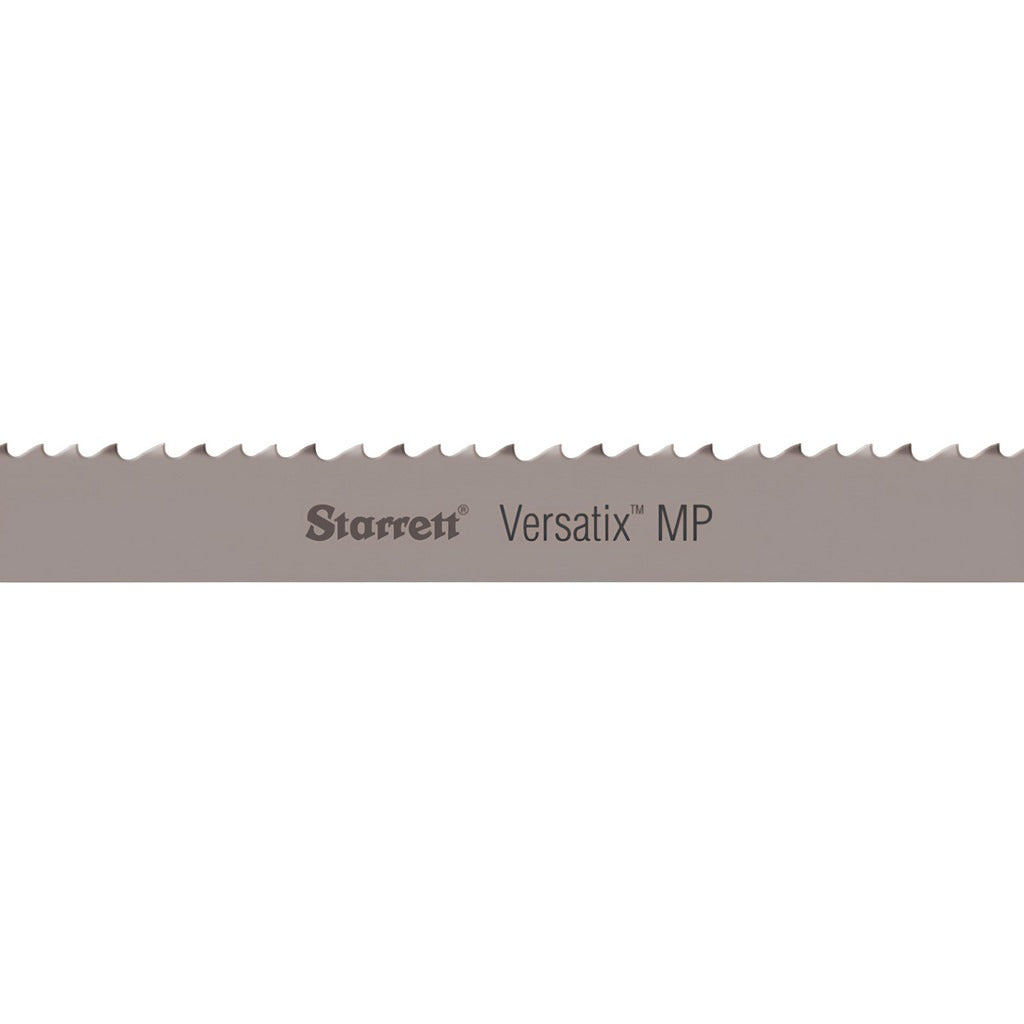

Starrett 14730 Welded Bandsaw Blade 8-12 Tpi Bi-metal

Product Description

The STARRETT 14730 is a welded bi-metal bandsaw blade engineered for demanding metal-cutting applications. Measuring 174 inches in length and 3/4 inch wide with a 0.035-inch thickness, this blade runs on standard vertical or horizontal bandsaws used in fabrication and machine shops. The M42 high speed steel tooth tips are joined to a flexible alloy steel back, giving the blade the toughness to handle interrupted cuts and hard spots. The variable pitch tooth pattern at 8 to 12 TPI reduces vibration and harmonic noise during the cut, extending both blade life and surface finish quality. A raker tooth set and positive rake angle promote aggressive, consistent chip clearance. Licensed trade professionals and machinists are the primary installers and users.

This blade is designed for contour-free, straight bandsaw cutting of structural steel in production and job-shop environments. The Versatix MP series targets mixed-material cutting situations where a single blade must handle varying cross-sections of structural steel, tubing, and similar ferrous stock. The variable pitch design makes it particularly well suited for cutting bundles or sections where the material thickness entering the cut changes. It is not intended for contour or radius cutting applications.

Key Features

• M42 high speed steel tooth tips for extended edge life on structural steel
• Variable pitch 8-12 TPI reduces vibration and improves cut finish
• Flexible alloy steel back resists fatigue and breakage under continuous use
• Raker tooth set with positive rake angle promotes efficient chip evacuation
• Welded construction provides a consistent, pre-joined loop ready to install
• Versatix MP series design supports varied cross-section and mixed-material cuts

Compatibility

Designed as an OEM-style replacement or direct-fit welded blade for bandsaws accepting a 174-inch loop blade that is 3/4 inch wide. Intended for structural steel cutting applications as specified by the manufacturer.

Installation Notes

Bandsaw blade installation and tensioning should be performed by a qualified machinist or maintenance technician familiar with the saw manufacturer's tensioning specifications. Power down and lock out the saw before removing the old blade or installing a new one. Verify that blade guides, thrust bearings, and wheel alignment are within specification before running the new blade. Do not exceed the blade speed rating of the saw or operate the blade without the blade guard in place.
