Starrett 12304 Dial Test Indicator 0.2mm Horizontal

Product Description

The STARRETT 12304 is a horizontal-style dial test indicator designed for precision dimensional measurement in machining, inspection, and quality control applications. It features a jeweled movement and a precision gear-driven design that delivers accurate readings across a 0.2 mm maximum measurement range with 0.002 mm dial graduations. The 1-1/4 inch diameter yellow dial uses a 0-100-0 bidirectional scale for easy positive and negative deviation reading. The satin chrome finish and narrow body make it suitable for tight-clearance setups on surface plates, CMMs, milling machines, and lathes. Installation is handled by machinists, toolmakers, and metrology technicians.

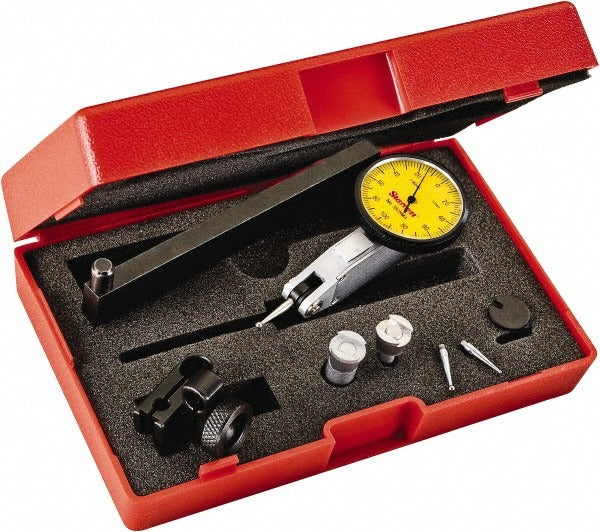

The STARRETT 12304 fits standard dovetail mounting systems and ships with a complete accessory kit including two contact points, two dovetail clamps, a swivel post holder, a tool post holder, a contact wrench, and a carrying case. The contact point reverses automatically and is fully replaceable, supporting a wide variety of measurement orientations without requiring additional tooling. This indicator is well suited for both shop-floor use and inspection room environments where repeatable, high-contrast readability is required.

Key Features

• 0.2 mm maximum measurement range with 0.002 mm dial graduation for high-resolution readings
• Jeweled movement for reduced friction and long service life
• Bidirectional 0-100-0 yellow dial provides high-contrast readability in either direction
• Narrow body design allows access in tight setups and confined measurement zones
• Contact point reverses automatically and is user-replaceable
• Dovetail mount type is compatible with standard indicator holders and fixtures
• Complete kit includes dovetail clamps, post holders, contact points, wrench, and case

Compatibility

Designed for use with standard dovetail-style indicator holders and mounting fixtures common in machining and metrology setups. Part of the STARRETT Series 3808 dial test indicator line.
