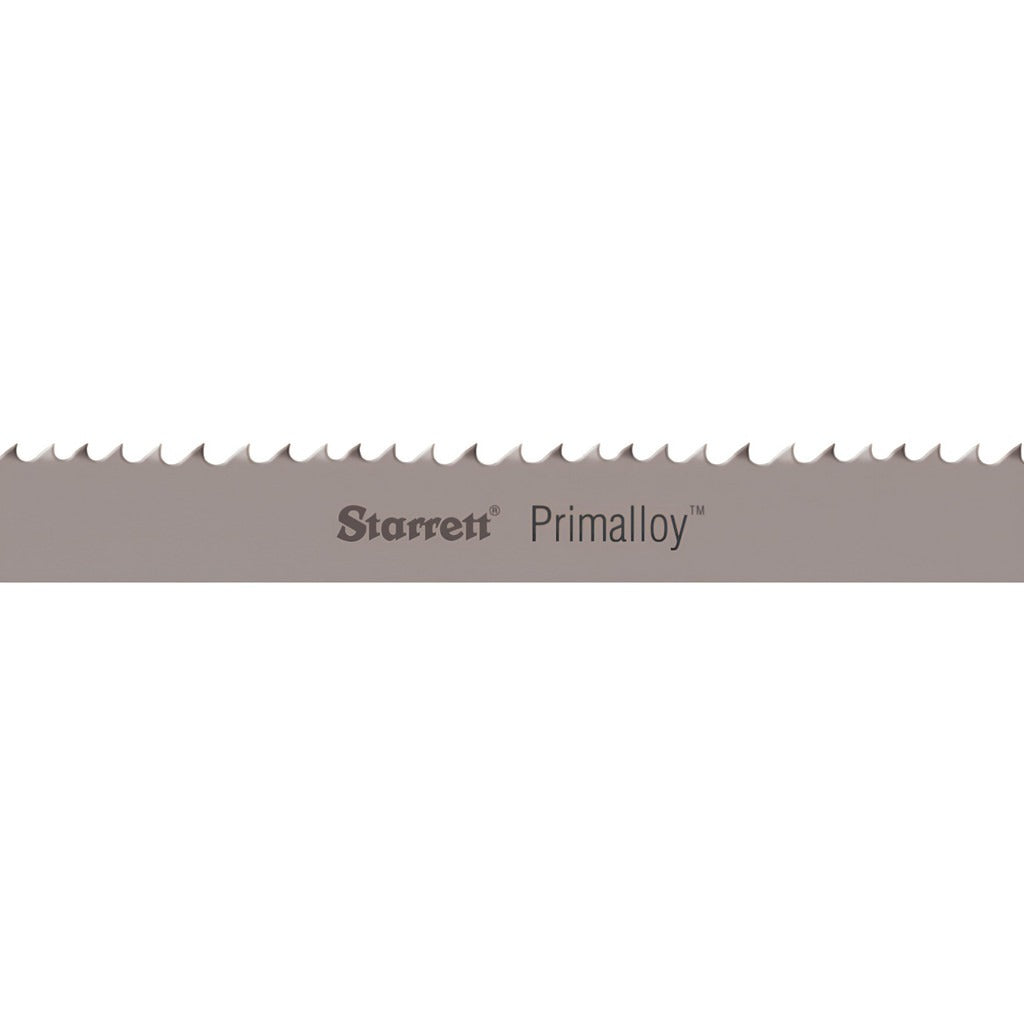

Starrett 00096 Welded Bandsaw Blade 2-3 Tpi Bi-metal

Product Description

The STARRETT 00096 is a welded bi-metal bandsaw blade designed for continuous cutting of steel, stainless steel, and exotic steel alloys. The blade measures 184 inches in total length and 1-1/4 inches in width, with a thickness of 0.042 inches. The tooth edge is ground to a straight form with a positive rake angle and raker tooth set, running at a variable pitch of 2-3 TPI. The Primalloy series construction pairs a flexible alloy back with high speed steel teeth, making this blade suited for metal fabrication shops, maintenance facilities, and industrial cutting operations where demanding materials require consistent performance.

This blade fits vertical or horizontal band saws with a 184-inch wheel-to-wheel blade path. The 2-3 TPI variable pitch reduces harmonic vibration and is well matched to cutting solid bar stock, structural steel sections, stainless tubing, and exotic alloy billets. It is intended for professional use by machinists, fabricators, and industrial maintenance technicians working with ferrous and specialty metals. The raker tooth set promotes efficient chip clearance in these applications.

Key Features

• Bi-metal construction with high speed steel teeth bonded to a flexible alloy back for extended tooth life
• Variable pitch 2-3 TPI reduces blade vibration and harmonics during cuts
• Positive rake angle and ground tooth form improve cutting efficiency on hard metals
• Raker tooth set promotes consistent chip evacuation in solid and structural stock
• Straight tooth form and flexible back support contour stability on long cuts
• Primalloy series rated for steel, stainless steel, and exotic steel material applications

Compatibility

Designed as a welded-loop replacement blade for band saws requiring a 184-inch blade path with a 1-1/4-inch blade width. Suitable for machines configured for metal-cutting bi-metal blades in this length and width class.

Installation Notes

Installation should be performed by a qualified machinist or maintenance technician. Disconnect and lock out power to the band saw before removing or installing the blade. Verify wheel guides and blade tension settings are appropriate for a 1-1/4-inch blade before starting the machine. Follow the saw manufacturer's tensioning specifications and confirm blade tracking before resuming cutting operations.
