Star Water Systems SP20BL1622 Deep Well Ejector Kit

Product Description

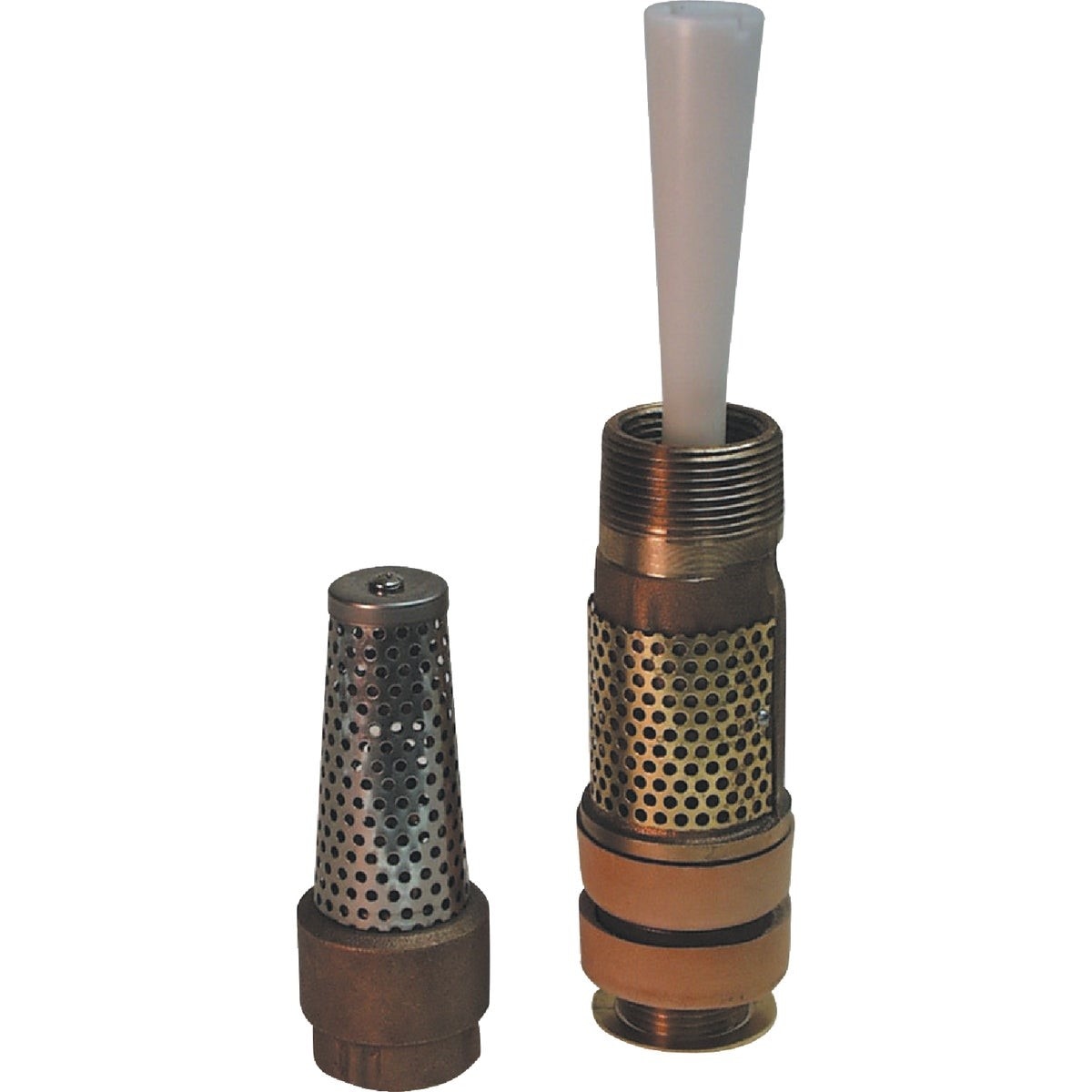

The STAR WATER SYSTEMS SP20BL1622 is a deep well ejector kit designed for use with 1/2 HP convertible jet pumps in single-pipe deep-well applications. The ejector assembly draws water from depths up to 80 feet in wells with a minimum 2-inch inside diameter casing. The kit ships complete with the ejector body and a foot valve, giving installers everything needed for a clean, single-order install. Plumbers and pump service technicians working on residential water supply systems will find this a direct-fit solution for restoring or commissioning a convertible pump setup. The unit weighs 2.7 pounds, making it straightforward to handle and lower into the well casing during installation.

This ejector is suited for residential single-pipe deep-well systems where water table depth falls within the 80-foot operational range. It pairs with 1/2 HP convertible jet pumps and is intended for wells with a 2-inch inside diameter or larger. Typical applications include private well systems on rural residential properties. The included foot valve helps maintain pump prime by preventing backflow in the supply line, reducing the need for repeated re-priming after service or seasonal downtime.

Key Features

• Rated for single-pipe deep-well applications up to 80 feet depth
• Fits 1/2 HP convertible jet pumps
• Compatible with 2-inch inside diameter well casings
• Includes ejector body and foot valve for a complete install kit
• Lightweight at 2.7 pounds for easier handling during well installation

Compatibility

Designed for use with 1/2 HP convertible jet pumps in single-pipe deep-well configurations with 2-inch inside diameter well casings.

Installation Notes

Installation should be performed by a licensed plumber or qualified pump service technician familiar with residential well system codes. Shut off power to the pump and relieve system pressure before beginning any work on the well or pump assembly. Lower the ejector and foot valve assembly carefully into the well casing, ensuring all threaded connections are sealed with appropriate thread sealant rated for potable water service. Consult local plumbing codes and the pump manufacturer instructions for pipe sizing and priming procedures.

Technical Specifications

• Application: Single-pipe deep-well
• Maximum Well Depth: 80 feet
• Compatible Pump Size: 1/2 HP convertible pump
• Minimum Well Casing I.D.: 2 inches
• Includes: Ejector and foot valve
• Weight: 2.7 pounds
• Sold As: Each

Standard Information

• Brand: STAR WATER SYSTEMS
• Manufacturer Part Number: SP20BL1622
