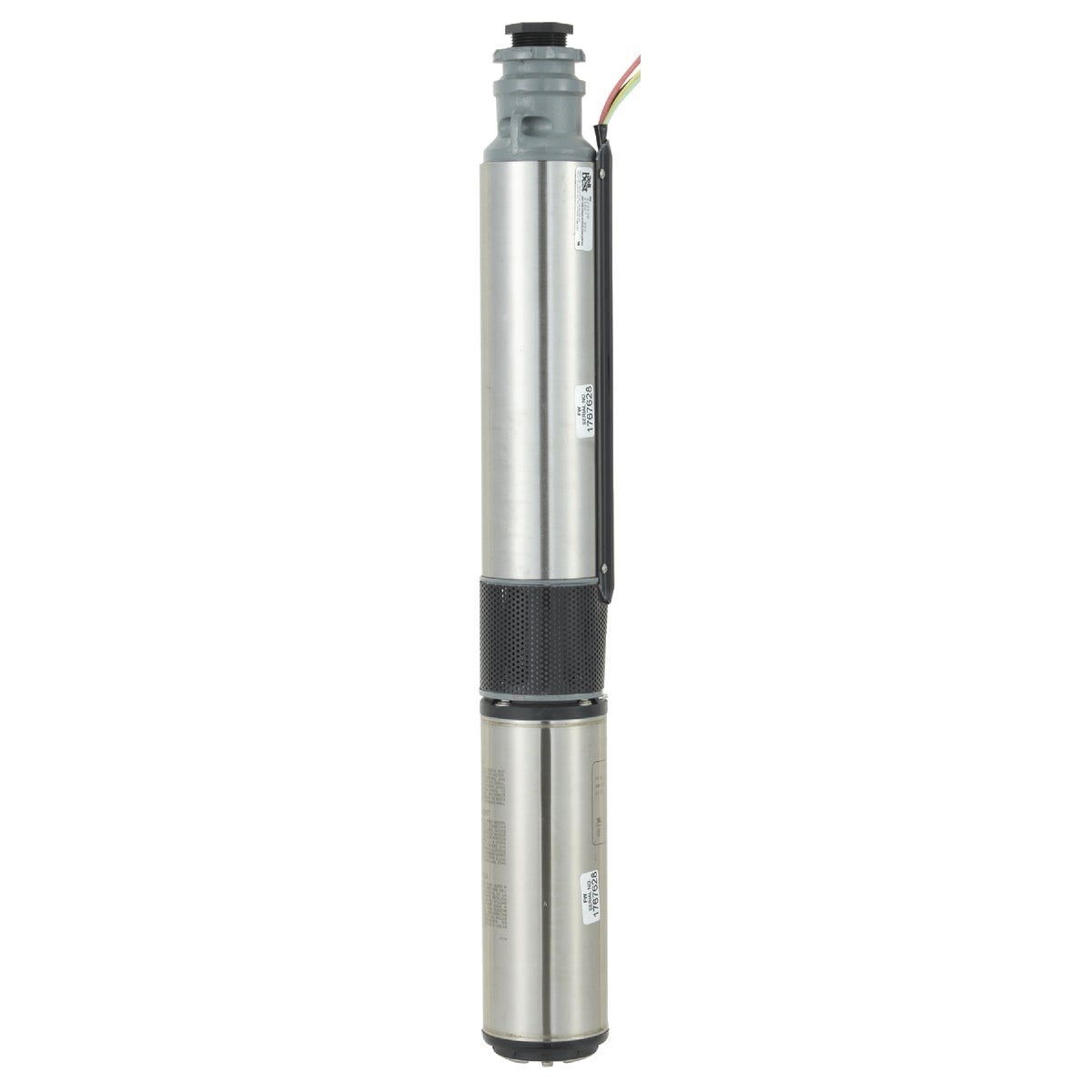

Star Water Systems 4H10A07301 Submersible Well Pump 3/4 Hp

Product Description

The STAR WATER SYSTEMS 4H10A07301 is a 3/4 HP submersible well pump built for residential water supply applications. The pump, motor shell, and drive shaft are constructed from stainless steel and measure 4 inches in diameter, providing corrosion resistance suited for continuous submersion. Rated at 10 GPM, this unit delivers water from various depth levels to the well head with quiet, economical operation. It ships with a cast-iron discharge head sized at 1-1/4 inches, easy heat-shrink splice kits, and illustrated installation instructions. Manufactured by Flint Walling, it uses the water-lubricated Franklin motor recognized by contractors across the trade.

This pump is rated for the average residential home and family, making it a standard replacement or new-install choice for 4-inch well casings. The 10 GPM flow rating covers typical household demand under normal well conditions. Operating at 230 volts single-phase, it is suited for residential well systems where a reliable, mid-range capacity pump is required. Lightning protection is built into the design, adding a degree of safety in exposed or rural installations common to this product type.

Key Features

• Stainless steel pump body, motor shell, and drive shaft for corrosion resistance in submerged service
• 10 GPM flow rating sized for average residential household demand
• Water-lubricated Franklin motor — contractor-recognized construction
• 1-1/4 inch cast-iron discharge head included
• Built-in lightning protection
• Heat-shrink splice kits and illustrated installation instructions included in package

Compatibility

Designed for installation in 4-inch diameter residential well casings requiring a 10 GPM submersible pump at 230 volts single-phase. Consult system flow requirements and well specifications before selecting this unit.

Installation Notes

Submersible well pump installation is performed by licensed plumbers or pump contractors and must comply with applicable local and state well codes. Disconnect and lock out all electrical power before handling wiring or lowering the pump assembly. Use the included heat-shrink splice kits to make all electrical connections watertight before deployment. Never run a submersible pump dry, as water lubrication is required for motor operation.

Technical Specifications

• Horsepower: 3/4 HP
• Flow Rate: 10 GPM
• Voltage: 230 volts
• Phase: 3-wire single phase
• Pump Diameter: 4 inches
• Discharge Size: 1-1/4 inches cast iron
• Motor Type: Water-lubricated Franklin motor
• Material: Stainless steel pump body, motor shell, and drive shaft
• Weight: 30.2 pounds
• Warranty: 1 year limited

Standard Information

• Brand: STAR WATER SYSTEMS
• Manufacturer Part Number: 4H10A07301
