Star Water Systems 127197A Pump Control Box 3/4 Hp 230V

Product Description

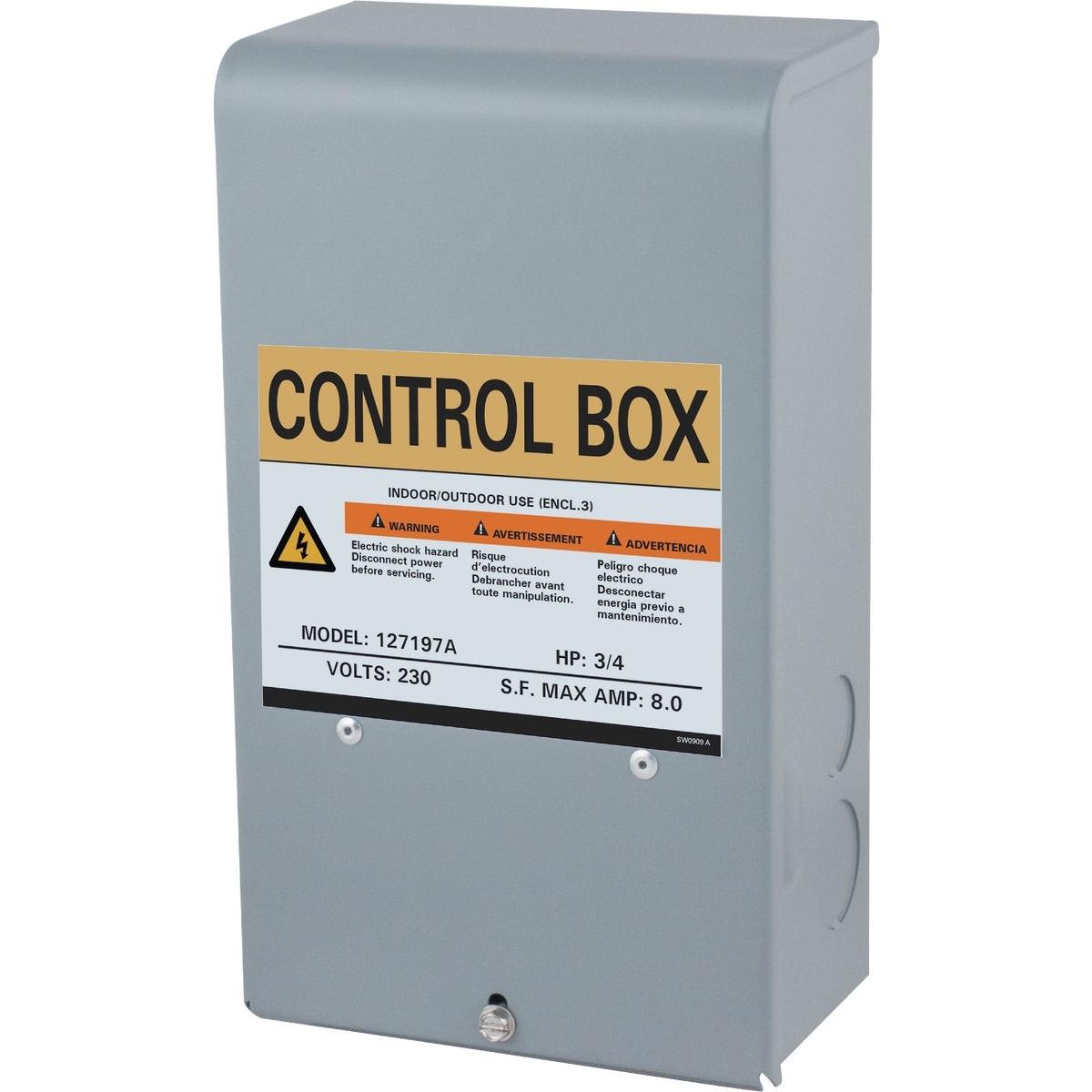

The STAR WATER SYSTEMS 127197A is a pump control box designed for 3-wire, 230-volt submersible well pump installations. It houses the starting and running capacitors along with the relay components needed to operate a single-phase submersible motor. The quick disconnect design features a snap-out cover that allows all electrical components to remain above ground, making routine inspection and component replacement faster and more straightforward. Compatible with 1/2 HP, 3/4 HP, and 1 HP motors in quick disconnect configuration, and 1-1/2 HP in standard disconnect configuration. Licensed well pump contractors and electricians are the typical installers for this type of control equipment.

This control box is used in residential and light commercial groundwater systems where a 3-wire, 230-volt submersible well pump is installed. The above-ground component housing eliminates the need to pull the pump for electrical service on the control circuit. It is well suited for new installations and direct replacement of existing pump control boxes in standard submersible well pump setups.

Key Features

• Quick disconnect snap-out cover keeps all components accessible above ground
• Compatible with 3-wire, 230-volt submersible well pump motors
• Rated for 1/2 HP, 3/4 HP, and 1 HP quick disconnect applications
• Also supports 1-1/2 HP standard disconnect configuration
• Above-ground component location simplifies inspection and repair without pulling the pump

Compatibility

Designed for use with 3-wire, 230-volt submersible well pump motors in 1/2 HP, 3/4 HP, and 1 HP quick disconnect configurations, and 1-1/2 HP standard disconnect configurations, as specified by STAR WATER SYSTEMS.

Installation Notes

Installation should be performed by a licensed electrician or qualified well pump contractor in accordance with applicable NEC requirements. Disconnect and lock out all power to the pump circuit before opening the control box or handling any internal components. Verify that the motor HP and voltage rating match the control box specifications before connecting. Do not power the unit with the cover removed during live circuit testing.

Technical Specifications

• Voltage: 230 volts
• HP Range (Quick Disconnect): 1/2 HP, 3/4 HP, 1 HP
• HP Range (Standard Disconnect): 1-1/2 HP
• Wiring Configuration: 3-wire
• Weight: 2.85 pounds
• Sold As: Each

Standard Information

• Brand: STAR WATER SYSTEMS
• Manufacturer Part Number: 127197A
