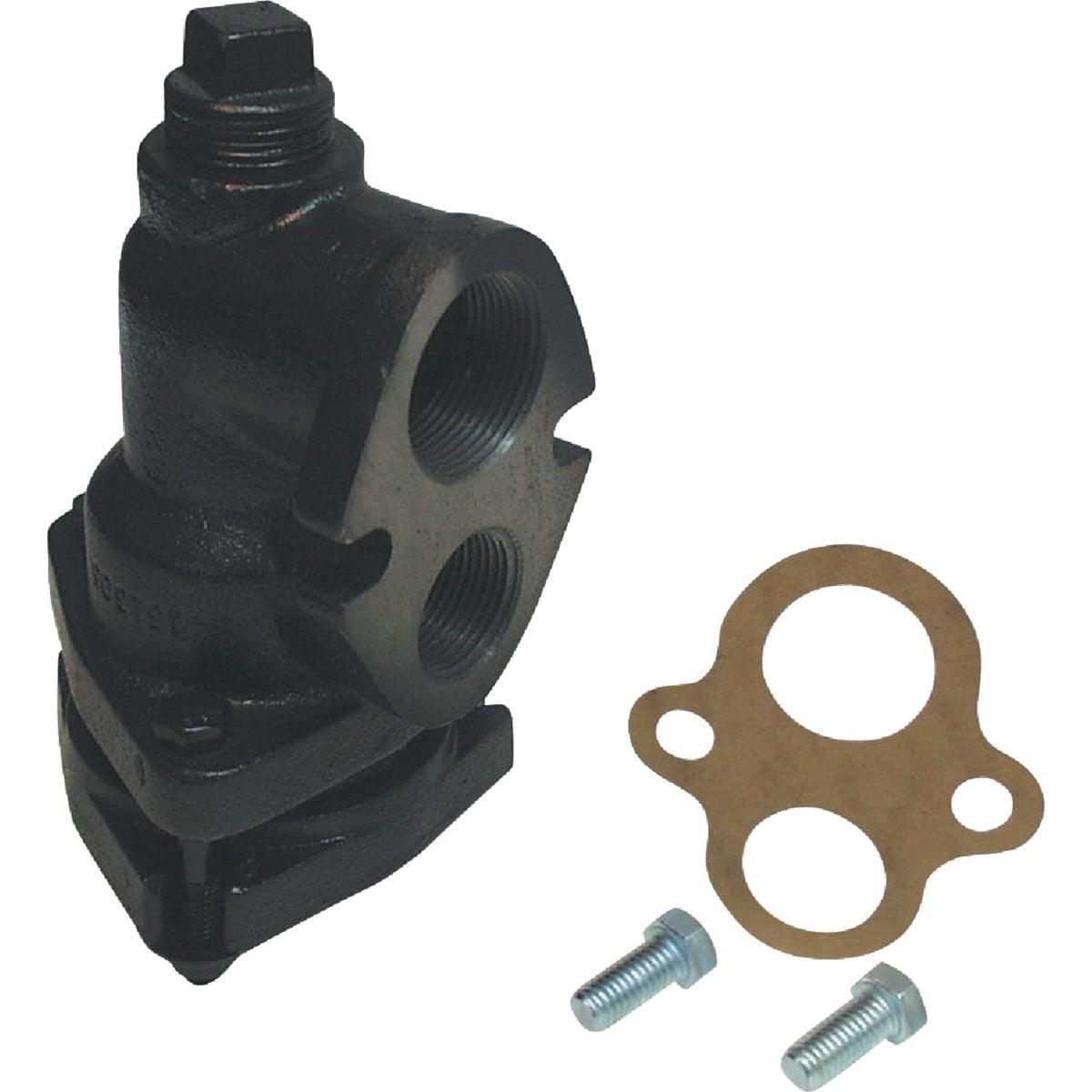

Star Water Systems 127025 Right Angle Adapter 2 Inch

Product Description

The STAR WATER SYSTEMS 127025 is a right angle adapter designed to convert two-pipe jet pump configurations to a single drop pipe for deep-well applications. It is sized for use in wells with a 2-inch inside diameter casing. This fitting is a critical transition component in deep-well jet pump installations, allowing the pressure and suction lines of a two-pipe system to combine into one drop pipe that runs down the well casing. Water well contractors and plumbers install this adapter when setting up or servicing deep-well jet pump systems where well casing diameter limits the number of pipes that can be run independently.

This adapter is used in residential and light commercial deep-well water supply systems. It fits into 2-inch inside diameter well casings and is paired with two-pipe jet pumps that require both a suction line and a pressure line to operate. The adapter is installed at the bottom of the drop pipe assembly, where the two lines meet before entering the well. It is a common component in deep-well setups where the well depth exceeds the suction lift range of a shallow-well single-pipe system.

Key Features

• Converts two-pipe jet pump systems to a single drop pipe configuration
• Sized for 2-inch inside diameter well casings
• Right angle design routes flow for proper deep-well jet pump operation
• Sold individually as a single unit

Compatibility

Designed as an OEM-style replacement adapter for two-pipe deep-well jet pump systems installed in 2-inch inside diameter well casings.

Installation Notes

Installation should be performed by a licensed plumber or water well contractor familiar with jet pump systems and local well construction codes. Shut off and disconnect power to the pump before servicing any components in the well or pump assembly. Ensure all pipe connections are sealed and torqued to fitting manufacturer standards before lowering the drop pipe assembly into the well casing. Follow applicable state and local well construction regulations when working inside a well casing.

Technical Specifications

• Well Casing Size: 2 inches I.D.
• Configuration: Right angle adapter, two-pipe to single drop pipe
• Application: Deep-well jet pump systems
• Weight: 6.54 pounds
• Sold As: Each
• UPC: 00054757002114

Standard Information

• Brand: STAR WATER SYSTEMS
• Manufacturer Part Number: 127025
