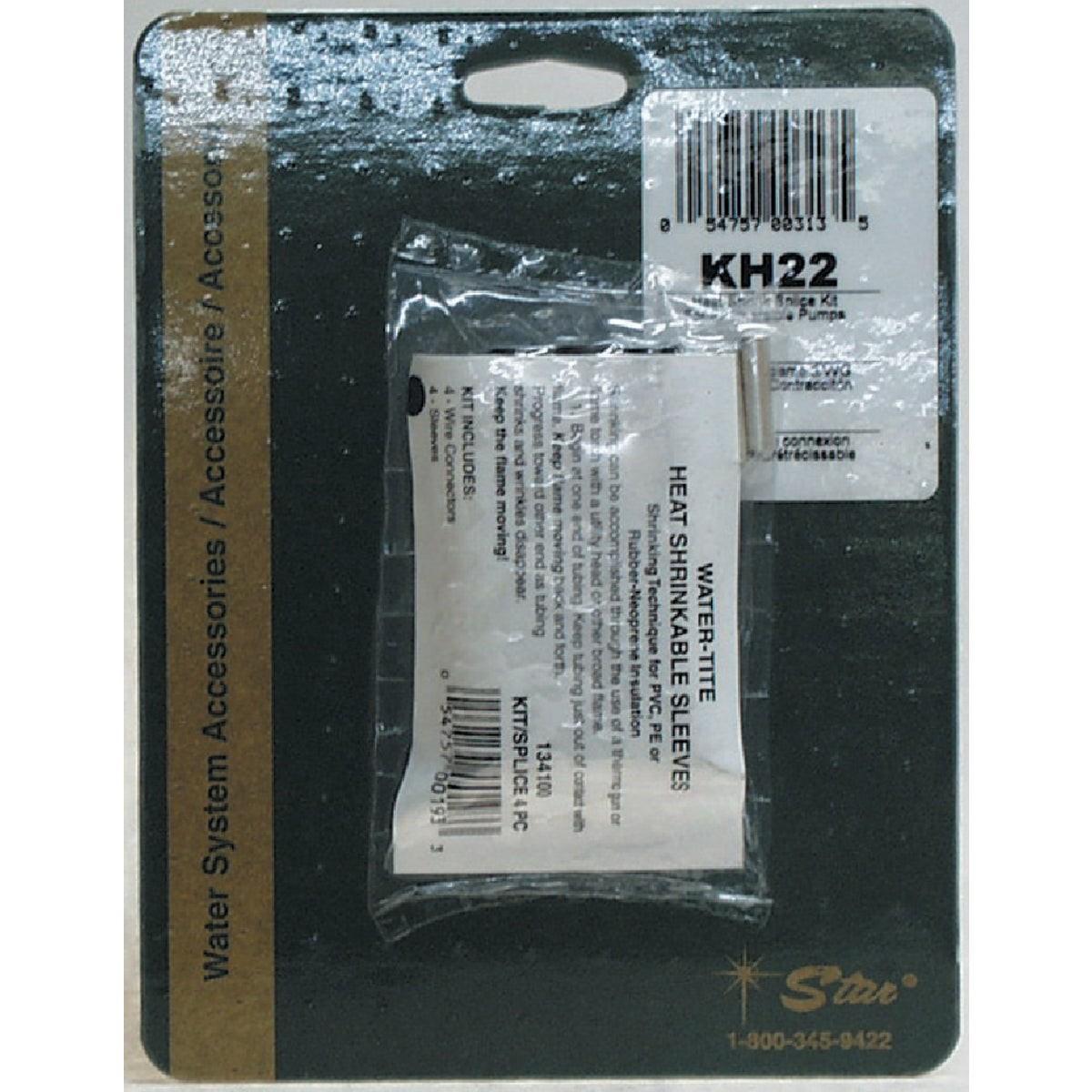

Star Water Systems 024778 Submersible Splice Kit

Product Description

The STAR WATER SYSTEMS 024778 is a heat shrinkable submersible splice kit designed for making watertight electrical splices on submersible well pump motor leads. Each kit includes four Sta-Kon connectors and four heat shrinkable sleeves, giving installers everything needed to complete a secure, moisture-resistant connection in a single package. The kit covers wire gauge sizes 14, 12, 10, and 8, making it suitable for a broad range of residential well pump wiring applications. Licensed pump installation contractors and electricians rely on this type of kit to restore or extend motor leads without compromising the integrity of a submerged installation.

This splice kit is used in residential well pump systems where motor lead splices must remain watertight under continuous submersion. Typical applications include new pump installations, motor lead repairs, and lead extensions in drilled or bored wells. The kit is sized to handle the most common wire gauges found in single-phase and three-phase submersible pump circuits. It is sold individually and is intended for use by qualified installers working on potable water well systems.

Key Features

• Includes 4 Sta-Kon crimp connectors and 4 heat shrinkable sleeves per kit
• Compatible with wire gauges 8, 10, 12, and 14
• Heat shrink sleeve creates a watertight seal suitable for continuous submersion
• Simplifies motor lead splicing in submersible well pump installations
• Sold as a single complete kit with all components included

Compatibility

Designed as an OEM-style splice solution for submersible well pump motor lead wiring using 8, 10, 12, or 14 gauge conductors.

Installation Notes

Installation should be performed by a licensed electrician or qualified well pump contractor in accordance with applicable local electrical codes and NEC requirements. Disconnect and lock out all power to the pump circuit before making any splices or connections. Crimp connectors fully before applying heat to the shrink sleeve, and ensure the sleeve is heated evenly to achieve a complete watertight seal. Do not energize the circuit until all splices are fully cooled and the pump assembly is ready for deployment.

Technical Specifications

• Wire Gauge Compatibility: 8, 10, 12, 14 AWG
• Kit Contents: 4 Sta-Kon connectors, 4 heat shrinkable sleeves
• Weight: 0.167 pounds
• UPC: 00054757097660
• Unit of Measure: Each

Standard Information

• Brand: STAR WATER SYSTEMS
• Manufacturer Part Number: 024778
