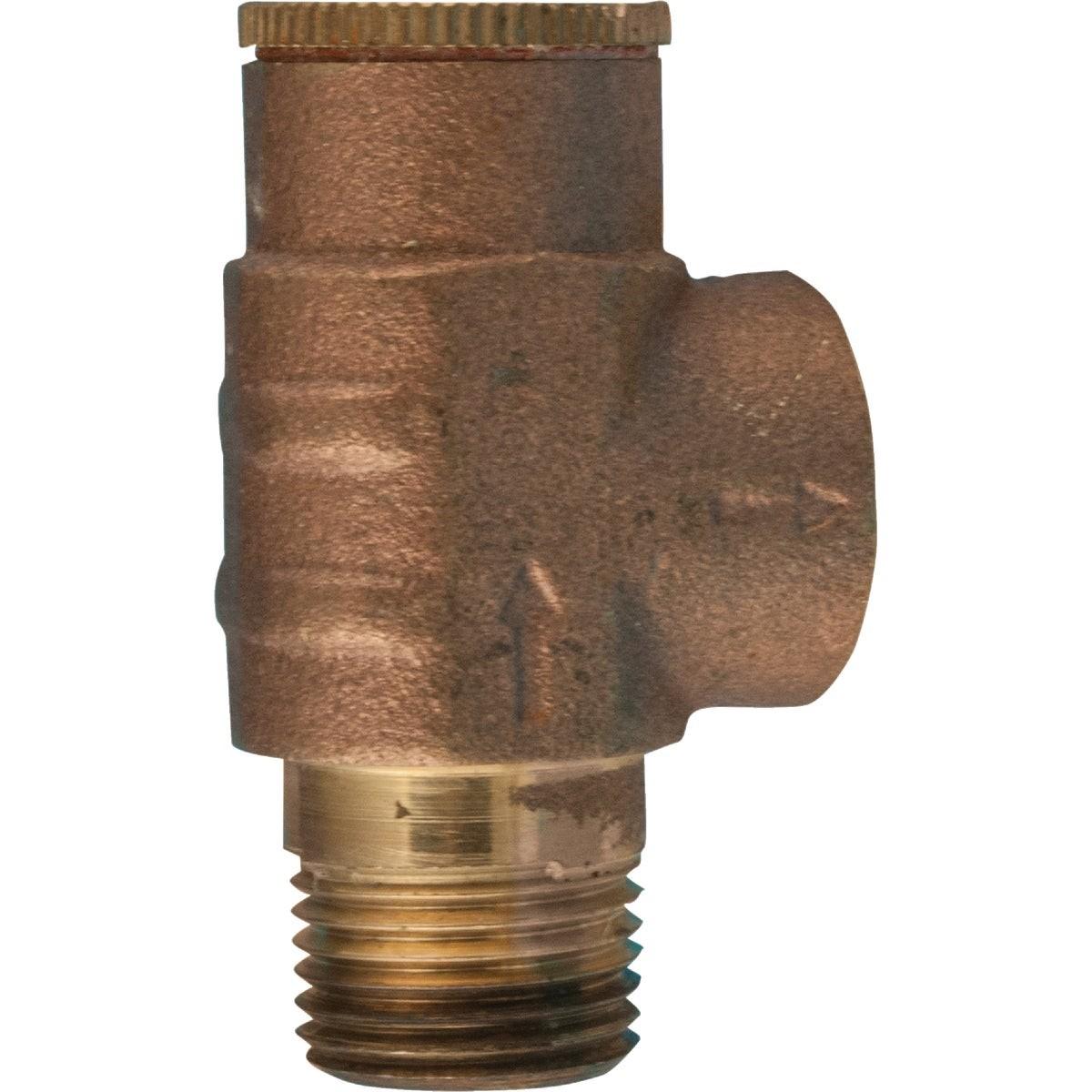

Star Water Systems 024777 Pressure Relief Valve 1/2 in 70 Psi

Product Description

The STAR WATER SYSTEMS 024777 is a low-lead pressure relief valve designed to protect water well pressure systems from overpressure conditions. Sized at 1/2 inch pipe thread and factory-set at 75 PSI, the valve opens automatically to relieve excess pressure before it can damage the tank, pump, or associated plumbing. With a rated discharge capacity of 1,200 gallons per hour at 70 PSI, it provides meaningful flow relief during pressure excursions. The valve weighs 0.438 pounds, making it compact and easy to handle during installation. Plumbers and well system technicians are the primary installers of this valve in residential and light commercial well water applications.

This pressure relief valve is intended for use in any water well system capable of producing more than 75 PSI at the pressure tank. Typical installations include submersible pump systems, jet pump systems, and other well setups where pump output or system conditions can drive pressure above safe operating limits. The low-lead construction makes it suitable for potable water systems where material compliance is a consideration under applicable plumbing codes.

Key Features

• Factory set at 75 PSI to protect well system components from overpressure
• 1/2 inch pipe thread connection for straightforward integration into standard well plumbing
• Rated discharge capacity of 1,200 gallons per hour at 70 PSI
• Low-lead construction suitable for potable water applications
• Compact design at 0.438 pounds for easy handling and installation

Compatibility

Designed for use in any water well system capable of producing more than 75 PSI at the pressure tank, including residential and light commercial well pump installations with 1/2 inch pipe thread connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC) where applicable. Shut off the well pump and relieve system pressure before removing any existing relief valve or making new connections. Apply appropriate thread sealant to pipe threads before assembly. The relief valve discharge must be piped to a safe drain location to prevent injury or property damage when the valve opens.

Technical Specifications

• Connection Size: 1/2 inch pipe thread
• Set Pressure: 75 psi
• Discharge Capacity: 1,200 gallons per hour at 70 psi
• Lead Compliance: Low lead construction
• Weight: 0.438 pounds
• UPC: 00054757097653

Standard Information

• Brand: STAR WATER SYSTEMS
• Manufacturer Part Number: 024777
