Star Water Systems 023281 Submersible Pump Fittings Package

Product Description

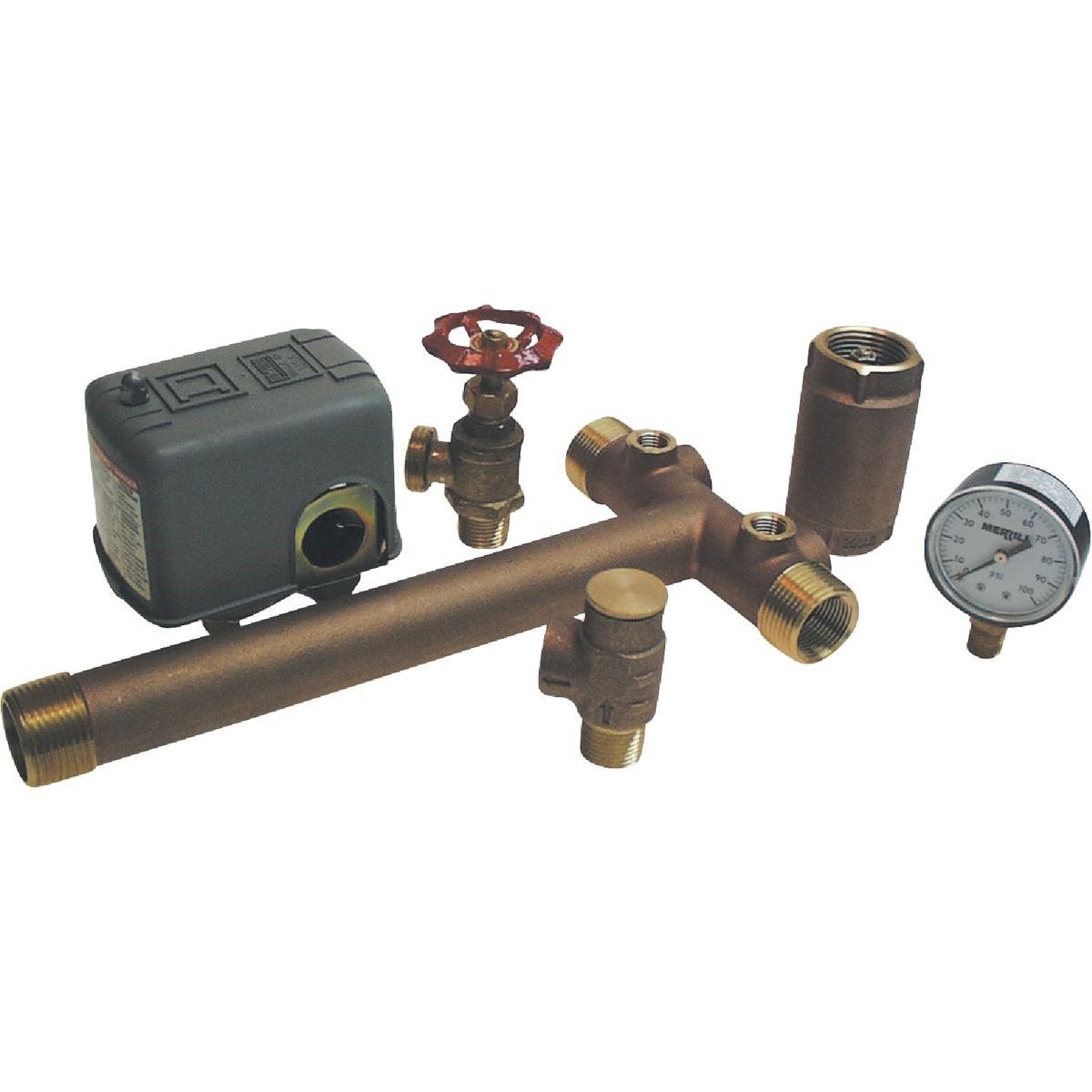

The STAR WATER SYSTEMS 023281 is a low-lead submersible pump fittings package designed for use with captive air water systems tanks. The kit consolidates the core service fittings required for a standard well pump installation into a single package, reducing sourcing time on the job. It meets low-lead compliance requirements, with no more than 0.25% weighted average lead content on wetted surfaces, making it suitable for potable water applications. The package includes a 10-inch brass tank tee, a FSG2C 30-50 pressure switch, a 2-inch pressure gauge with 1/4-inch center NPT connection, a 1/2-inch pressure relief valve, a 1-inch check valve, and a 1/2-inch boiler drain.

This fittings package is suited for residential and light commercial captive air pressurized water systems, typically found in private well installations. It is commonly installed by licensed plumbers or well pump service technicians during new tank installations or tank replacement service calls. The included components cover the pressure control, safety relief, and shutoff functions required at the tank assembly, streamlining the installation process.

Key Features

• Low-lead compliant: no more than 0.25% weighted average lead content on wetted surfaces for potable water use
• Includes 10-inch brass tank tee for captive air tank connection
• FSG2C 30-50 pressure switch included for pump cut-in and cut-out control
• 2-inch pressure gauge with 1/4-inch CN connection for system pressure monitoring
• 1/2-inch pressure relief valve and 1-inch check valve provide safety and backflow protection
• 1/2-inch boiler drain included for system service and winterization access

Compatibility

Designed for use with captive air water systems tanks in residential and light commercial well pump installations.

Installation Notes

Installation should be performed by a licensed plumber or qualified well pump technician in accordance with local plumbing codes and IPC guidelines. Shut off power to the pump and relieve system pressure before disassembling any existing fittings or making new connections. Use thread sealant rated for potable water on all NPT connections. Verify pressure switch settings and relief valve operation after system startup.

Technical Specifications

• Package Contents: 10-inch brass tank tee, FSG2C 30-50 pressure switch, 2-inch pressure gauge 1/4-inch CN, 1/2-inch pressure relief valve, 1-inch check valve, 1/2-inch boiler drain
• Lead Content: No more than 0.25% weighted average lead content on wetted surfaces
• Weight: 5 pounds
• UOM: Pack

Standard Information

• Brand: STAR WATER SYSTEMS
• Manufacturer Part Number: 023281
