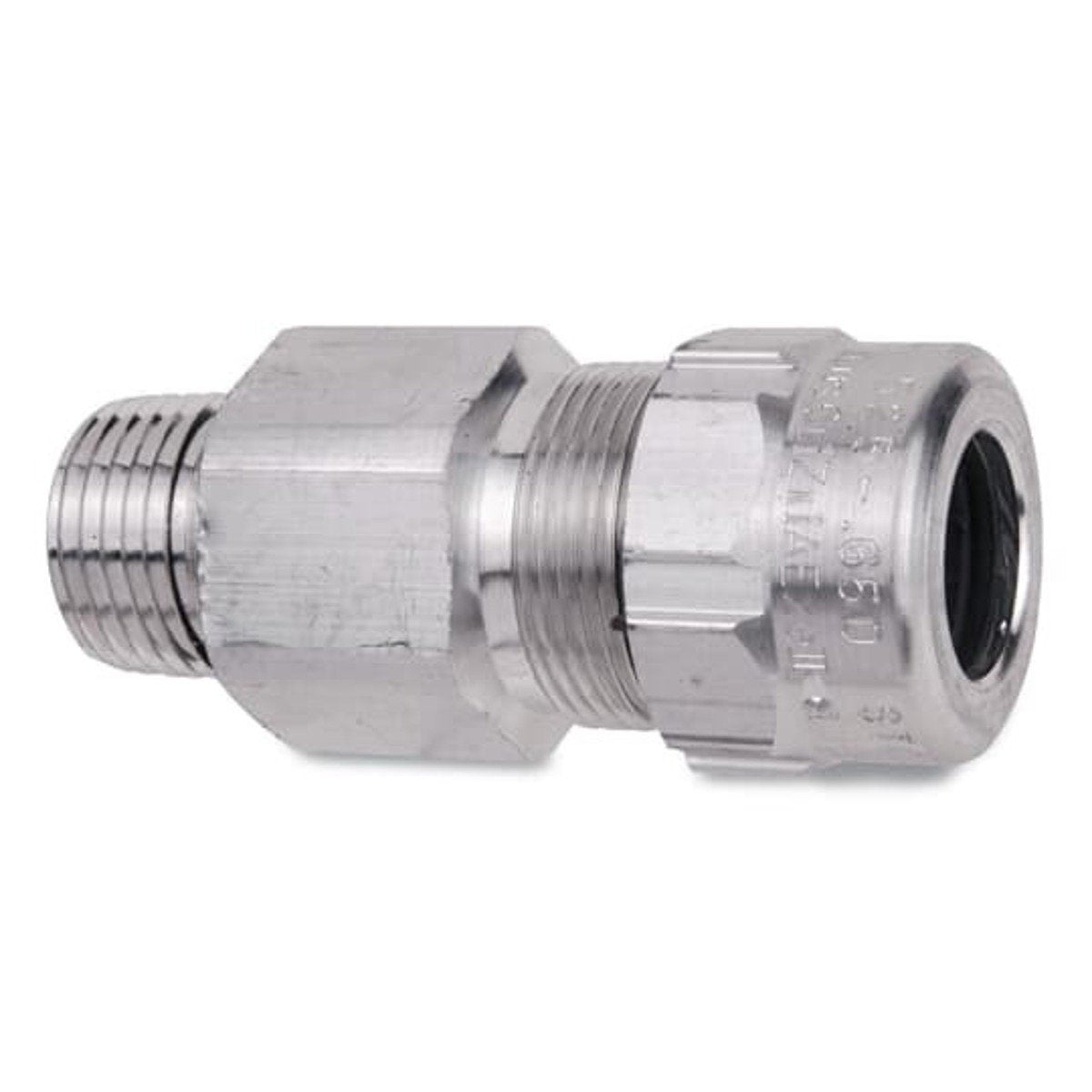

Star Teck ST150-473 Aluminum Jacketed Cable Fitting 1-1/2 Inch

Product Description

The STAR TECK ST150-473 is an aluminum jacketed cable fitting with a hub size of 1-1/2 inches and a range over jacket from 1.900-2.187 inches. This fitting features a pop-on design that requires no disassembly, a splined gland, and gripping features. It provides safe, reliable terminations in challenging industrial environments.

• No disassembly required with pop-on design.
• Splined gland and gripping features.
• Suitable for hazardous and ordinary locations.

Product Highlights

The STAR TECK cable fitting ensures easy installation, quality engineering, and safe terminations for jacketed metal clad cables.

Product Information

Standard Information

• Brand: STAR TECK
• Manufacturer Part Number: ST150-473
• Country of Origin: Canada

Technical Specifications

• Catalog Number: ST150-473
• Manufacturer: ABB - Installation Products
• Brand: STAR TECK
• Sub Brand: Star Teck
• Country of Origin: Canada
• Made in USA: No
• Material: Aluminum Body/Gland Nut, Stainless Steel Grounding Ring/Retaining Ring, Neoprene Bushing
• Standard: UL E38947, CSA 23086, CSA 4484
• UPC: 786210712932
• GTIN: 00786210712932
• Item Type: Teck Cable Fittings
• Size: 1-1/2 Inches
• ECCN: EAR99
• UNSPSC: 39121311
• Type: Straight, Threaded Male
• Hub Size: 1-1/2 Inch
• Throat Type: Bushing, Gland Nut
• Cable Type: Jacketed Metal Clad Cable
• Cable Size: 1.9 to 2.187 Inch
• Diameter: 3.26 Inch
• Length: 3.62 Inch
• Constructional Feature: Watertight
• Application: Hazardous Location, Ordinary Location
• Approval: UL, CSA
• RoHS: RoHS3 Compliant
• TSCA: TSCA Section 6(h) Compliant
