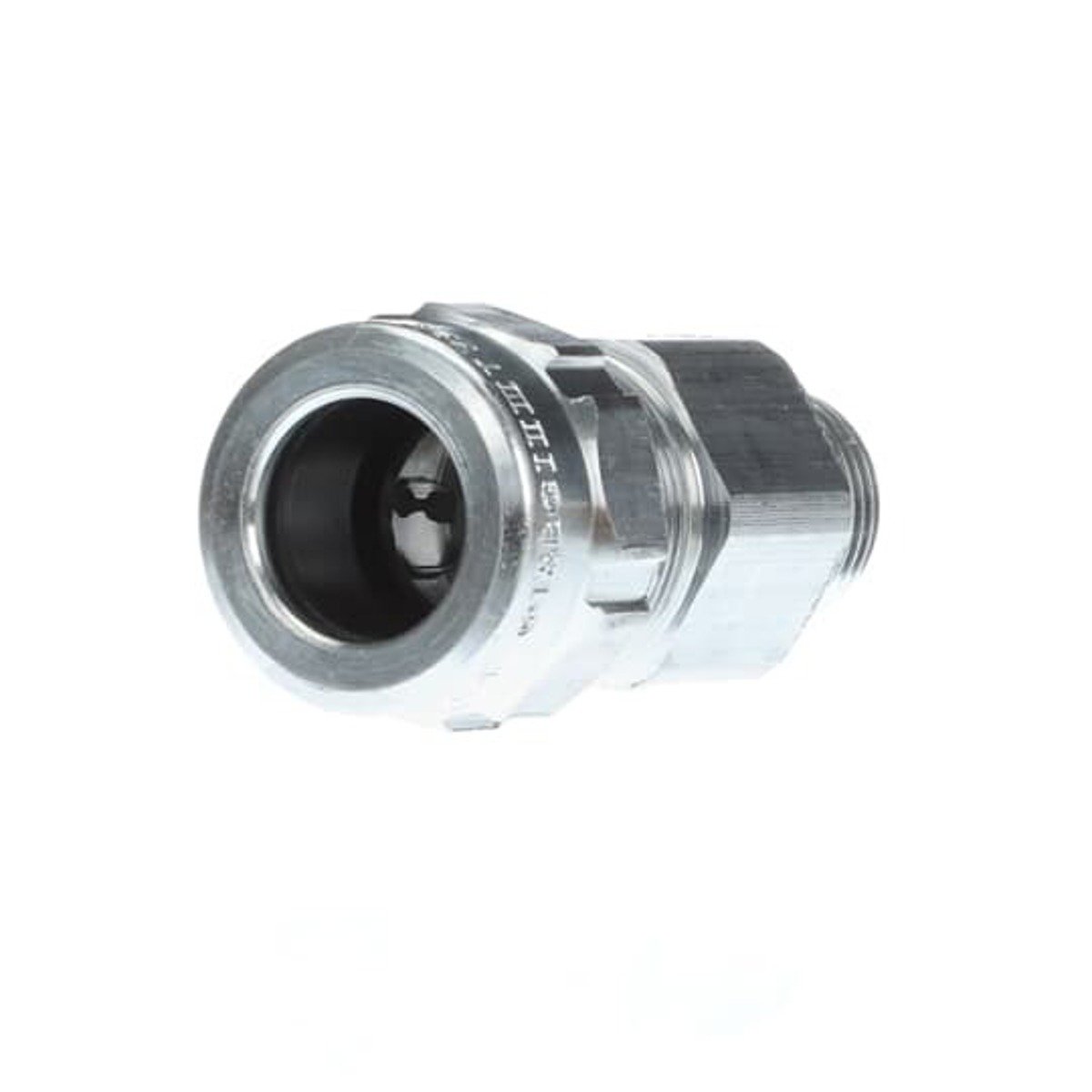

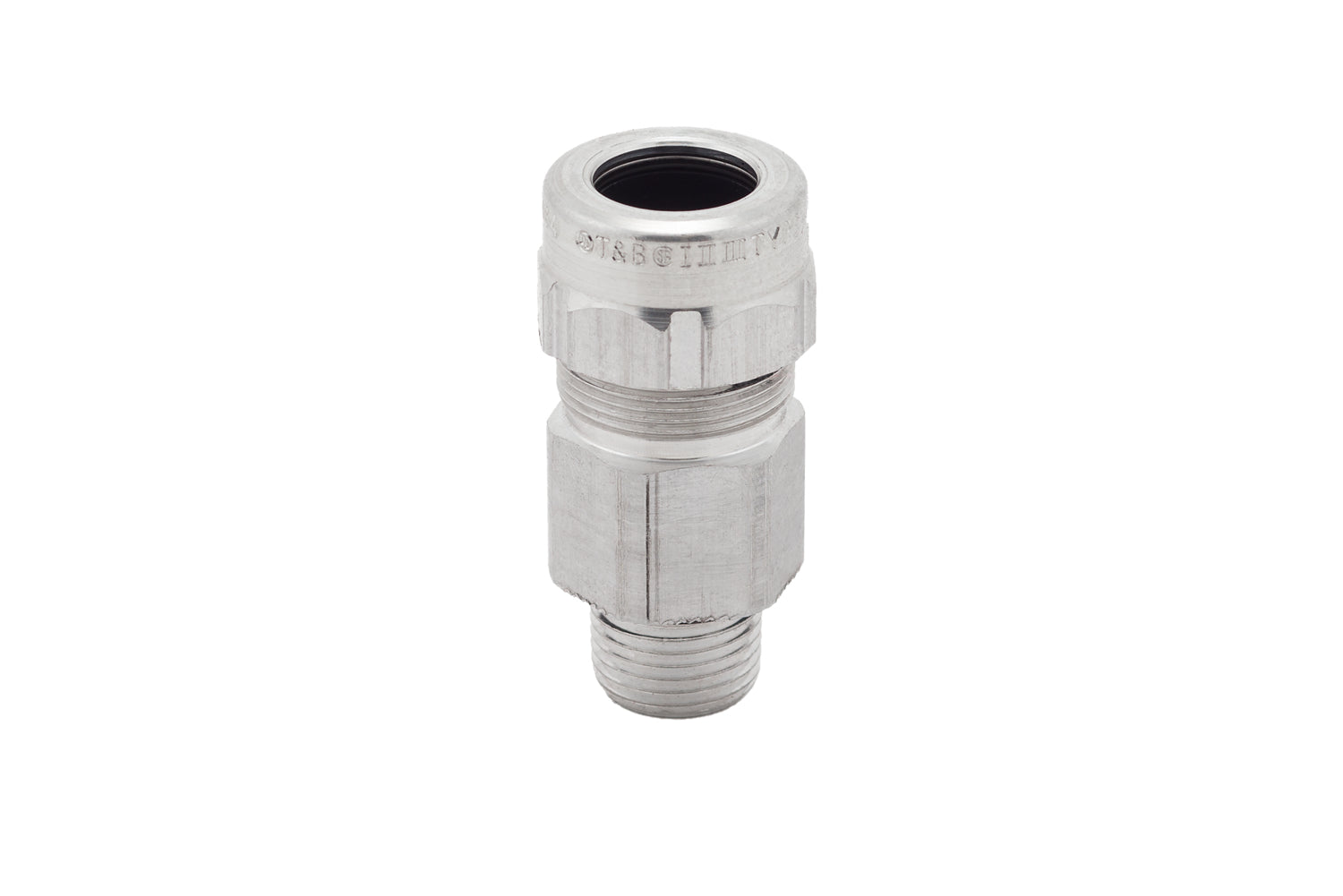

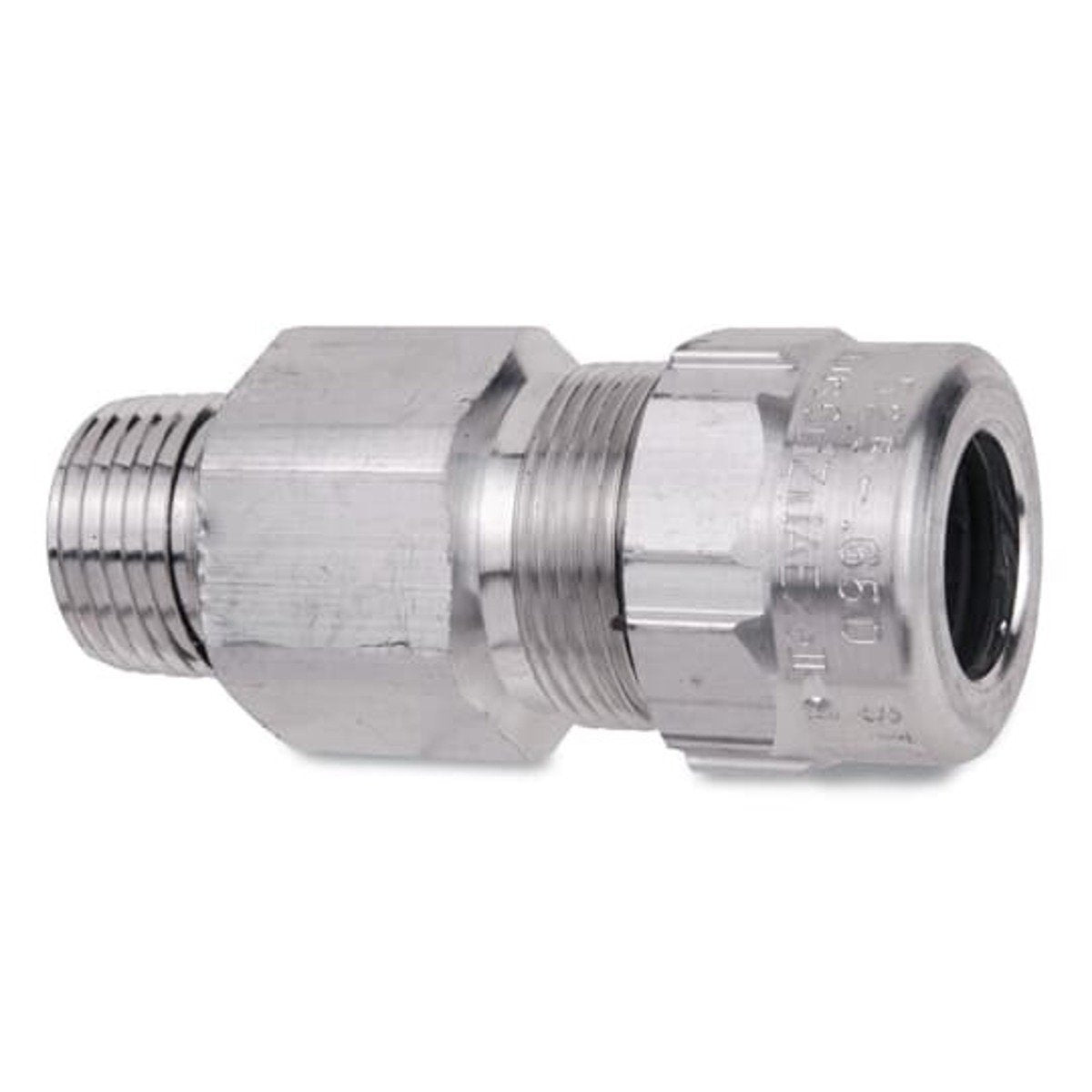

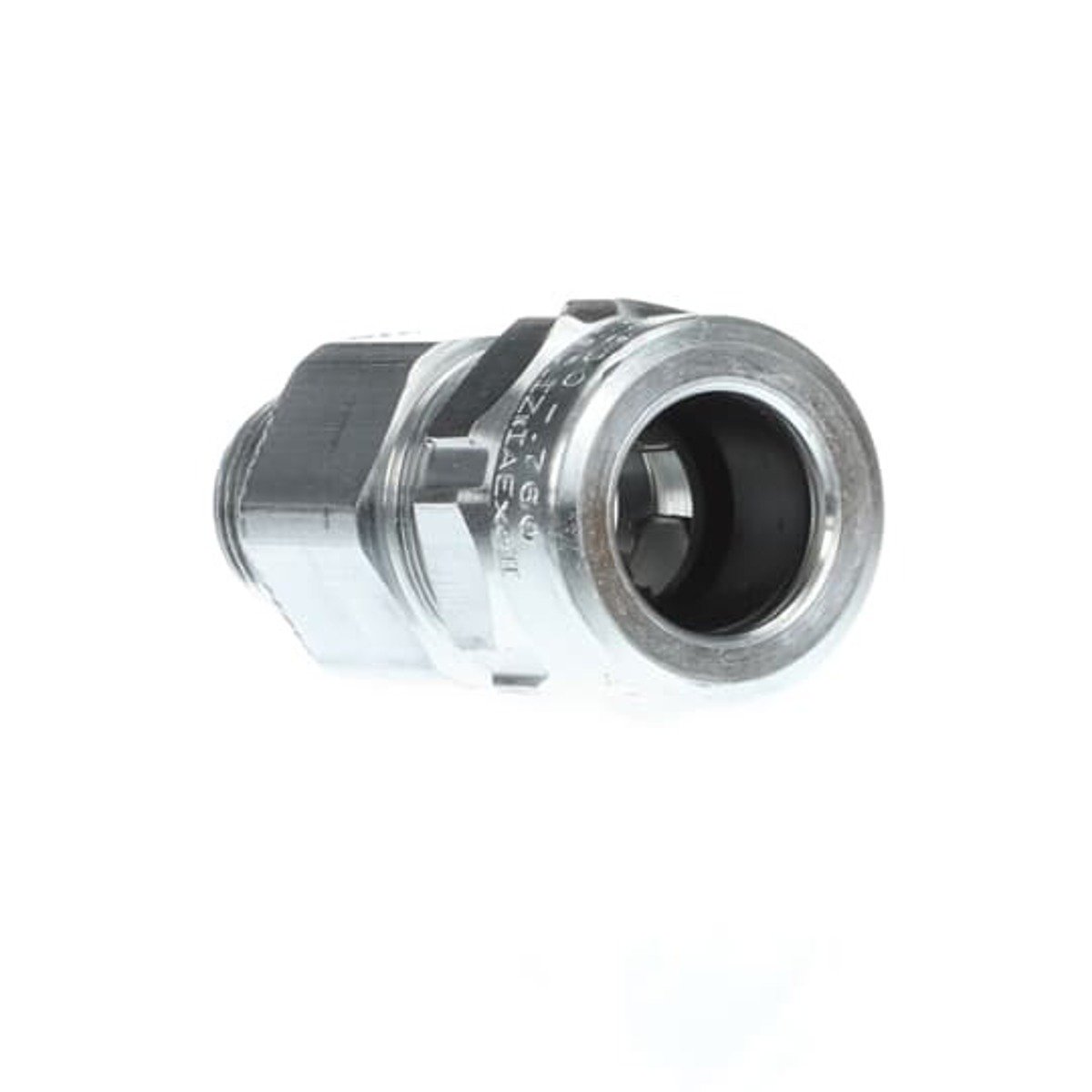

Star Teck ST050-464 Cable Fitting 1/2 Inch

Product Description

The STAR TECK ST050-464 cable fitting is designed with input from Canadian industry end-users. This fitting features a pop-on design that requires no disassembly, a splined gland, and gripping features. It is suitable for teck and ACWU cable, ensuring ease of installation and reliable terminations in industrial environments.

• Watertight construction for hazardous and ordinary locations.
• Features a bushing and gland nut throat type.
• Designed for jacketed metal clad cable with a cable size of 0.6 to 0.76 inches.

Product Highlights

The STAR TECK cable fitting offers easy installation, quality engineering, and safe terminations.

Product Information

Standard Information

• Brand: STAR TECK
• Manufacturer Part Number: ST050-464
• Country of Origin: Canada

Technical Specifications

• Catalog Number: ST050-464
• Brand: STAR TECK
• Sub Brand: Star Teck
• Country of Origin: Canada
• Made in USA: No
• Material: Aluminum Body/Gland Nut, Stainless Steel Grounding Ring/Retaining Ring, Neoprene Bushing
• Standard: UL E38947, CSA 23086, CSA 4484
• Item Type: Teck Cable Fittings
• Size: 1/2 Inch
• Type: Straight, Threaded Male
• Hub Size: 1/2 Inch
• Throat Type: Bushing, Gland Nut
• Cable Type: Jacketed Metal Clad Cable
• Cable Size: 0.6 to 0.76 Inch
• Diameter: 1.363 Inch
• Length: 2.02 Inch
• Constructional Feature: Watertight
• Application: Hazardous Location, Ordinary Location
• Approval: UL, CSA
• RoHS: RoHS3 Compliant
• Thread type: NPT
• Trade Size: 1/2 Inch
