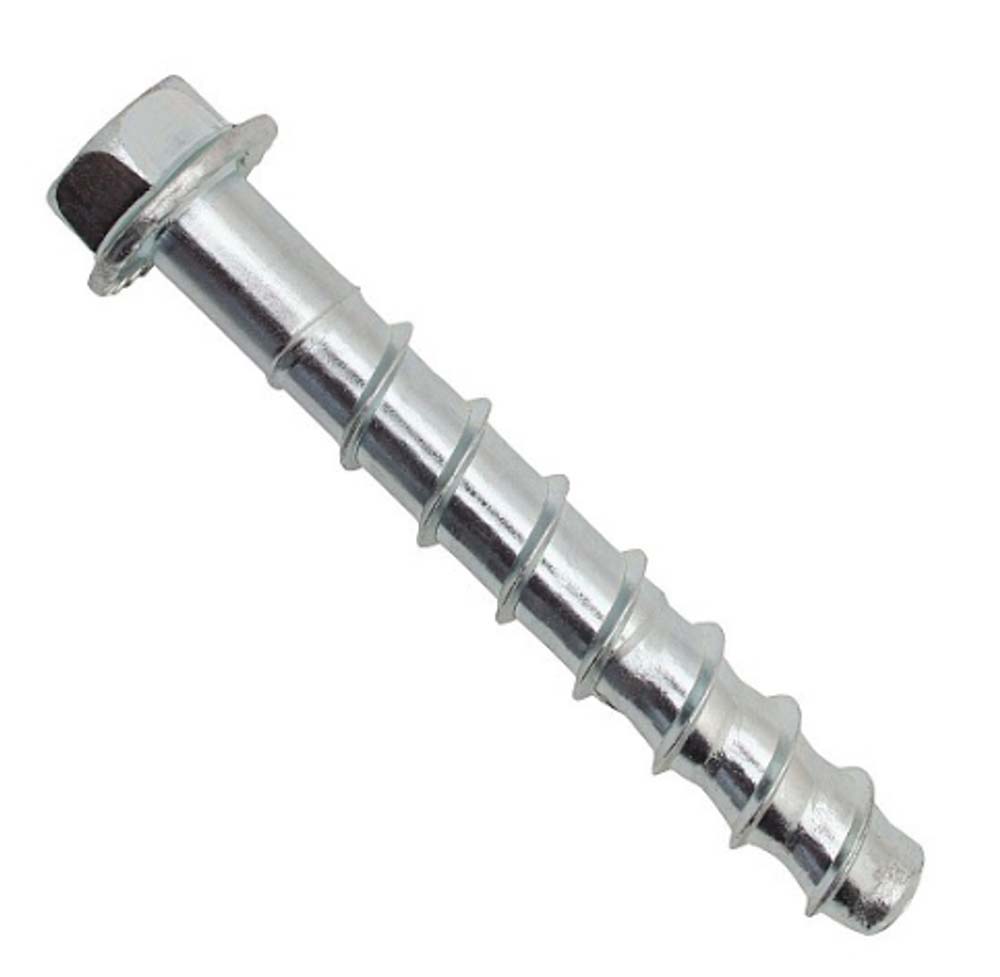

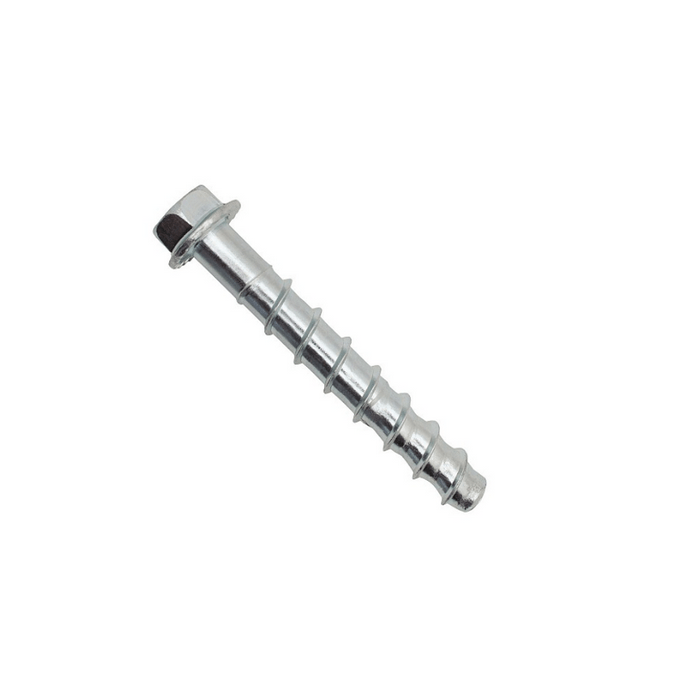

STANLEY BLACK & DECKER DEWALT PFM1411380 High Performance Screw Anchor 1/2 in x 3 in

Product Description

The STANLEY BLACK & DECKER DEWALT PFM1411380 is a heavy-duty screw anchor made for concrete and masonry applications. This one-piece design has a hex head and is compatible with standard ANSI drill bits. Its unique thread design minimizes torque during installation. It features steel threads that engage the hole for secure placement and can be removed and re-installed. This anchor is suitable for normal weight concrete, sand lightweight concrete, concrete over steel deck, concrete masonry, and solid clay brick.

• One-piece screw anchor with hex head.
• Compatible with ANSI drill bits.
• Steel threads for optimal engagement.

Product Highlights

The product is designed for ease of use and offers reliable performance in various concrete and masonry materials.

Product Information

Standard Information

• Manufacturer Catalog Number: PFM1411380
• UPC: 075352305035

Technical Specifications

• Anchor Diameter: 1/2 in
• Overall Length: 3 in
• Drill Size: 1/2 in
• Head Drive Type: Hex
• Material: Steel
• Finish: Zinc Plated
• Minimum Embedment Depth: 1-3/4 in
• Maximum Work Thickness: 1-1/4 in
• Applications: Material Handling, Racking, Shelving
• Fastener Type: Mechanical Anchor
• Connection Design: Concrete & Masonry
• Thread Length: 2-1/2 in
• Shear Strength: 5985 to 10705 lb
• Tensile Strength: 2840 to 4400 lb
• Applicable Materials: Normal Weight Concrete, Sand Lightweight Concrete, Concrete Over Steel Deck, Concrete Masonry, Solid Clay Brick
• Weight: 0.236 lbs
