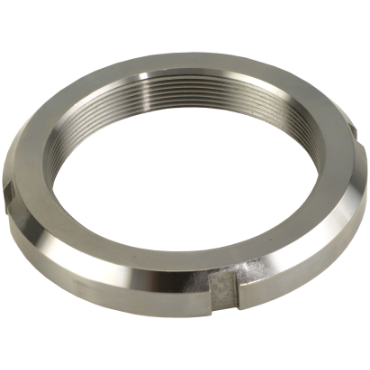

Standard Locknut N11 Standard Locknut, 2-31/32 OD, 0.135 x 0.24 Slot, Steel

Product Description

The Standard Locknut N Series Lock Nut, with MPN N11, is designed for secure fastening applications. It is made of steel for strength and durability. This locknut has a thread size of two point one seven five inches by eighteen threads per inch. The outside diameter measures two point nine six eight seven inches, while the bore diameter is fifty-five millimeters. It is compatible with W11 lockwashers.

• Thread Size: 2.175-18 x 0.51 Inch
• Slot Depth: 0.135 Inch
• Slot Width: 0.24 Inch

Product Highlights

This product provides reliable locking solutions in various mechanical assemblies.

Product Information

Standard Information

• Brand: STANDARD LOCKNUT
• MPN: N11

Technical Specifications

• Material: Steel
• Outside Diameter: 2.9687 Inch
• Bearing Face Diameter: 2.656 Inch
• Face Runout: 0.004 Inch
• For Use With: For W11 Lockwasher
• Standards: ISO 9001 2000 Certified
