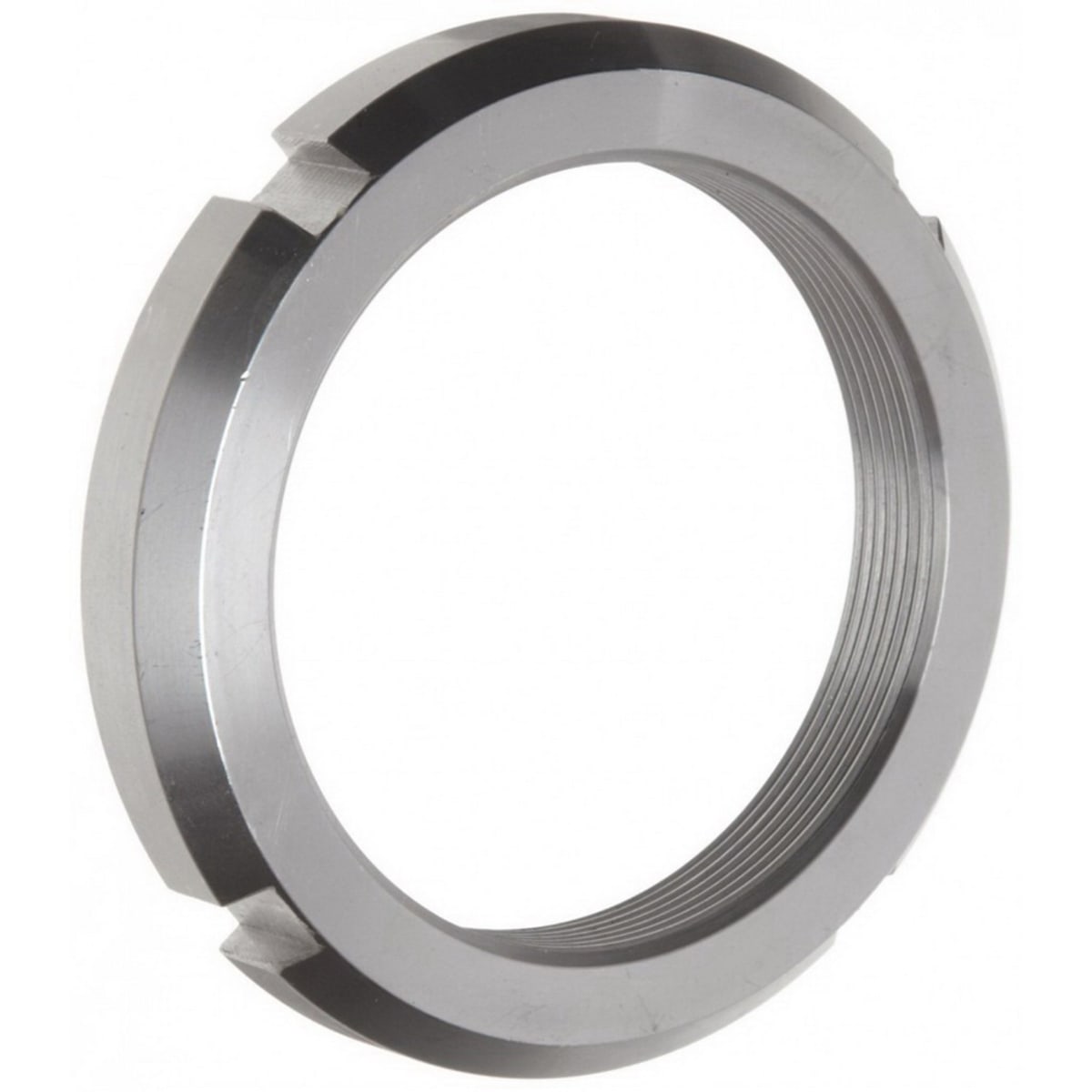

Standard Locknut N-10 Standard Locknut N Series Lock Nut, 2-11/16 OD, 0.104 x 0.24 Slot, Steel

Product Description

The Standard Locknut N Series Lock Nut, model N-10, is designed for use with W10 Lockwashers. It features an outer diameter of two and eleven sixteenths inches. The lock nut is made from steel, ensuring durability and reliability. The slot width is zero point two four inches and slot depth is zero point one zero four inches, making it suitable for various applications.

• Thread Size: 1.967-18 x 0.51 Inch
• For Use With: Compatible with W10 Lockwasher
• ISO 9001 Certified

Product Highlights

This locknut is ideal for securing bearings and providing stability in mechanical assemblies.

Product Information

Standard Information

• Brand: Standard Locknut
• MPN: N-10

Technical Specifications

• Material: Steel
• Outside Diameter: 2.6875 Inch
• Bearing Face Diameter: 2.438 Inch
• Face Runout: 0.004 Inch
• Slot Depth: 0.104 Inch
• Slot Width: 0.24 Inch
• Thread Size: 1.967 Inch
• Bore Diameter: 50 mm
