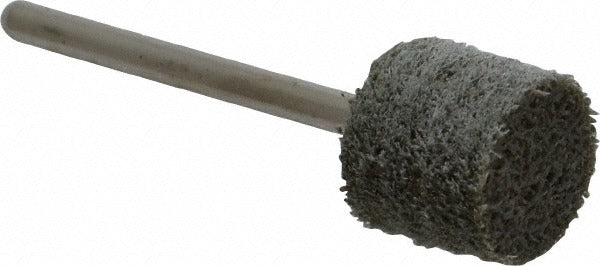

Standard Abrasives 7000122045 Mounted Point W185

Product Description

The STANDARD ABRASIVES 7000122045 is an aluminum oxide mounted point in the W185 cylinder shape, designed for precision grinding, deburring, and surface finishing in metalworking and fabrication applications. It features a 1/2 inch head thickness and a 1/8 inch shank diameter, making it compatible with standard die grinders and rotary tools. The unitized bond construction holds the abrasive grain consistently throughout the wheel life, delivering repeatable stock removal and surface conditioning. Rated to 34,500 RPM, this mounted point is built for high-speed rotary tool use. It is typically installed by machinists, tool-and-die workers, welders, and maintenance technicians requiring controlled material removal in tight or contoured areas.

This mounted point suits applications in general metalworking, weld blending, port matching, mold finishing, and in-place deburring on ferrous and non-ferrous metals. The cylinder W185 profile provides flat-face contact for working on flat surfaces, shoulders, and interior walls. It is suited for use with pneumatic or electric die grinders in both shop and field maintenance environments. The gray aluminum oxide abrasive is a general-purpose grain appropriate for steel, stainless steel, cast iron, and hard alloys.

Key Features

• W185 cylinder shape for flat-face and shoulder grinding applications
• Aluminum oxide abrasive grain for general-purpose metal grinding and deburring
• Unitized bond type for consistent abrasive exposure throughout wheel life
• 34,500 RPM maximum speed rating for high-speed die grinder use
• 1/8 inch shank diameter fits standard die grinder collets
• 1/2 inch head thickness provides adequate contact area for surface work

Compatibility

Designed as a replacement-style mounted point for standard die grinders and rotary tools accepting a 1/8 inch shank. Verify that the tool spindle speed does not exceed the 34,500 RPM rating of this mounted point before use.

Installation Notes

Installation should be performed by a qualified operator familiar with abrasive tool safety. Before mounting, ensure the die grinder or rotary tool is disconnected from its power source. Insert the 1/8 inch shank fully into the collet and tighten securely according to the tool manufacturer guidelines. Always confirm the tool free-speed does not exceed the 34,500 RPM rating marked on the point, in accordance with ANSI B7.1 safety requirements for abrasive products.
