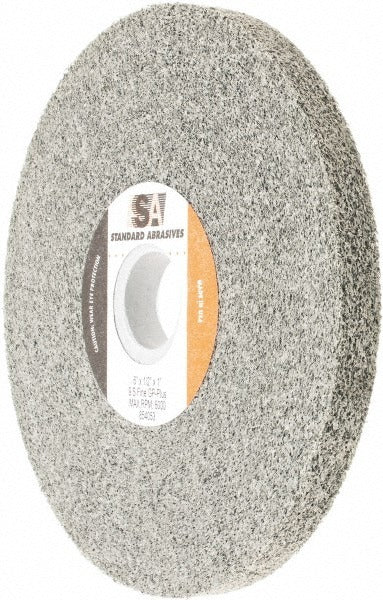

Standard Abrasives 7000047122 Convolute Deburring Wheel

Product Description

The STANDARD ABRASIVES 7000047122 is a convolute deburring wheel designed for surface finishing and edge deburring of metal workpieces. Built with silicon carbide abrasive at a fine grade and density 9, this wheel delivers consistent, controlled material removal on hard metals and non-ferrous alloys. The convolute construction winds abrasive-impregnated nonwoven material around a fiber core, producing a firm wheel that maintains its shape under load. At 6 inches in diameter with a 0.5-inch face width and a 1-inch center hole, it mounts directly to standard arbors. Metalworking shops and fabrication operations typically use this wheel during finishing passes to clean burrs and sharp edges left by machining, stamping, or cutting operations.

This deburring wheel is suited for both automated production environments and stationary or portable power tools. It is compatible with automated equipment, feed-through machines, and straight-shaft stationary and portable tools. Applications include deburring, edge blending, and light surface conditioning on metal components in manufacturing or fabrication settings. Machinists, tool-and-die workers, and metal fabricators are the primary users. The fine-grade silicon carbide abrasive makes it appropriate for finishing passes rather than heavy stock removal, particularly on harder materials where silicon carbide cuts effectively.

Key Features

• Silicon carbide abrasive provides effective cutting action on hard metals and non-ferrous materials
• Fine grade delivers controlled, light material removal for finishing and deburring passes
• Density 9 convolute construction maintains wheel shape and consistent surface contact under load
• 1-inch center hole fits standard arbors on a wide range of bench grinders and finishing machines
• Compatible with automated equipment, feed-through machines, and straight-shaft portable tools
• 0.5-inch face width concentrates abrasive action for edge work and narrow surface finishing

Compatibility

Designed for use with automated equipment, feed-through machines, and straight-shaft stationary and portable tools. Verify arbor size and RPM rating against machine specifications before installation.

Installation Notes

Installation should be performed by a qualified metalworking technician or machinist. Power down and lock out the machine before mounting or removing the wheel. Confirm the machine spindle speed does not exceed the maximum RPM rating marked on the wheel. Inspect the wheel for damage before each use and follow ANSI B7.1 safe practice guidelines for abrasive wheel mounting.
