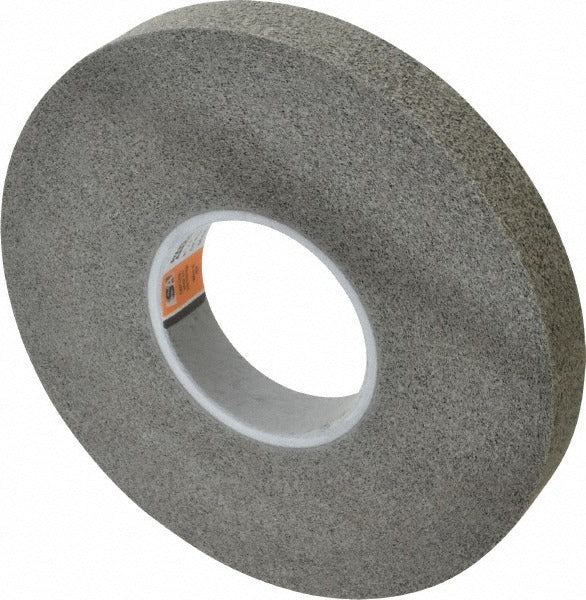

Standard Abrasives 7000046901 Convolute Deburring Wheel

Product Description

The STANDARD ABRASIVES 7000046901 is a convolute deburring wheel engineered for consistent edge finishing and surface conditioning on metal workpieces. Built with silicon carbide abrasive at a fine grade and density 9, it delivers uniform cut action across the full face of the wheel. At 8 inches in diameter with a 1 inch face width and a 3 inch center hole, this wheel mounts to a wide range of stationary and portable equipment. It is rated to 8,000 RPM, making it suitable for both manual and automated finishing operations. Metalworking shops, fabrication facilities, and industrial maintenance technicians are the primary installers and operators.

This deburring wheel is designed for use in production and job-shop environments where repeatable edge conditioning is required. Compatible tooling includes automated equipment, feed-through machines, and straight shaft stationary and portable tools. It handles deburring, blending, and light surface finishing on ferrous and non-ferrous metals. The convolute construction maintains a consistent density and cut rate throughout the life of the wheel, which is especially useful in high-volume or continuous-feed applications.

Key Features

• Silicon carbide abrasive material provides sharp, consistent cut action on metal surfaces
• Fine grade and density 9 construction delivers controlled material removal for finishing and deburring
• Convolute wheel design maintains uniform density and performance as the wheel wears
• 8,000 RPM maximum speed rating supports use on automated and high-speed stationary equipment
• 3 inch center hole fits standard arbors on feed-through machines and straight shaft tools
• Compatible with automated equipment, feed-through machines, and straight shaft stationary and portable tools

Compatibility

Compatible with automated equipment, feed-through machines, and straight shaft stationary and portable tools with a 3 inch arbor bore.

Installation Notes

Installation and operation should be performed by qualified personnel familiar with abrasive wheel safety practices. Always power down and de-energize the machine before mounting or removing the wheel. Verify the spindle speed of the equipment does not exceed the 8,000 RPM maximum rating of this wheel before starting. Inspect the wheel for damage prior to each use and follow ANSI B7.1 and applicable OSHA standards for abrasive wheel mounting and guarding.
