STANDARD 6047821.002 Ultima Manual Flush Valve with Bedpan Washer

Product Description

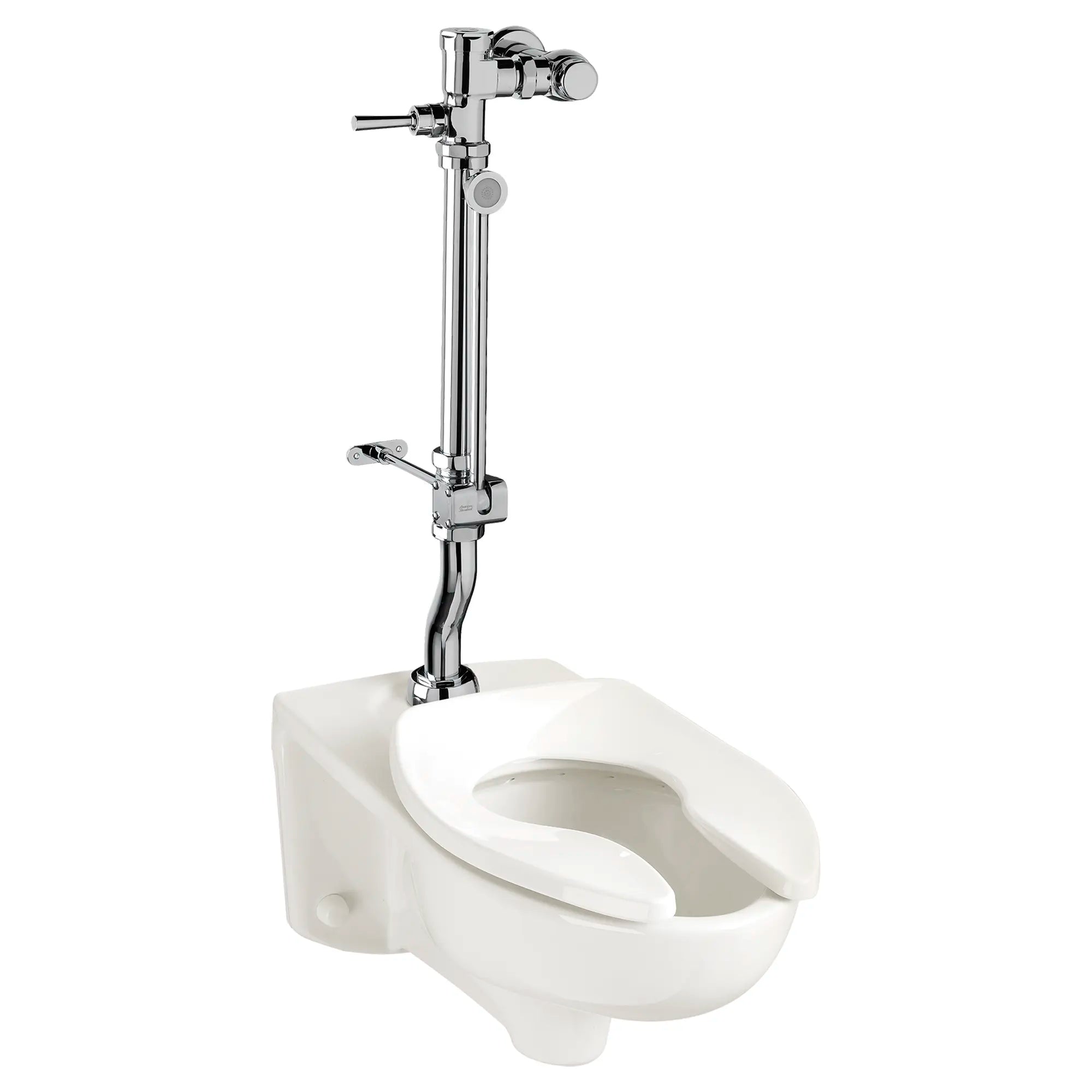

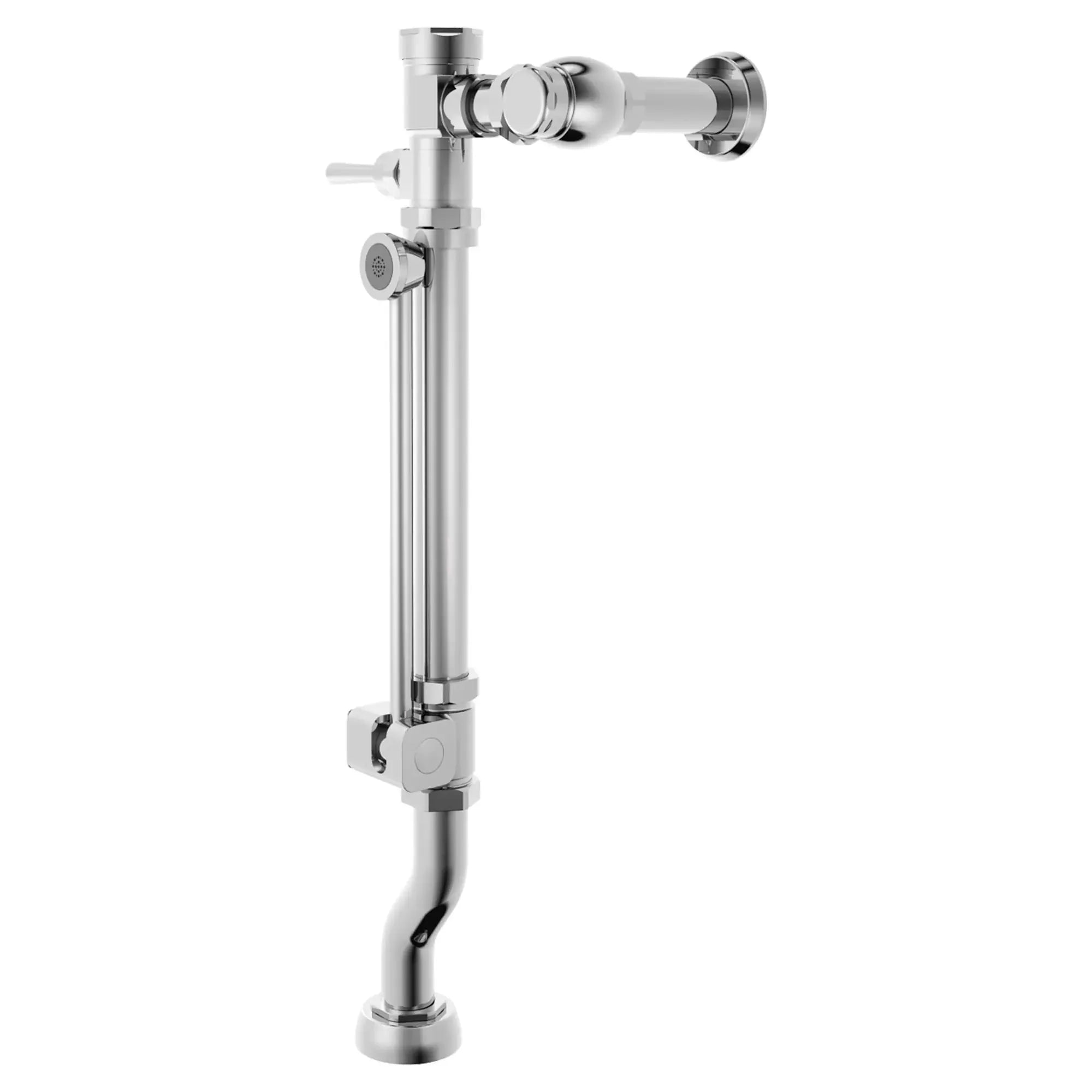

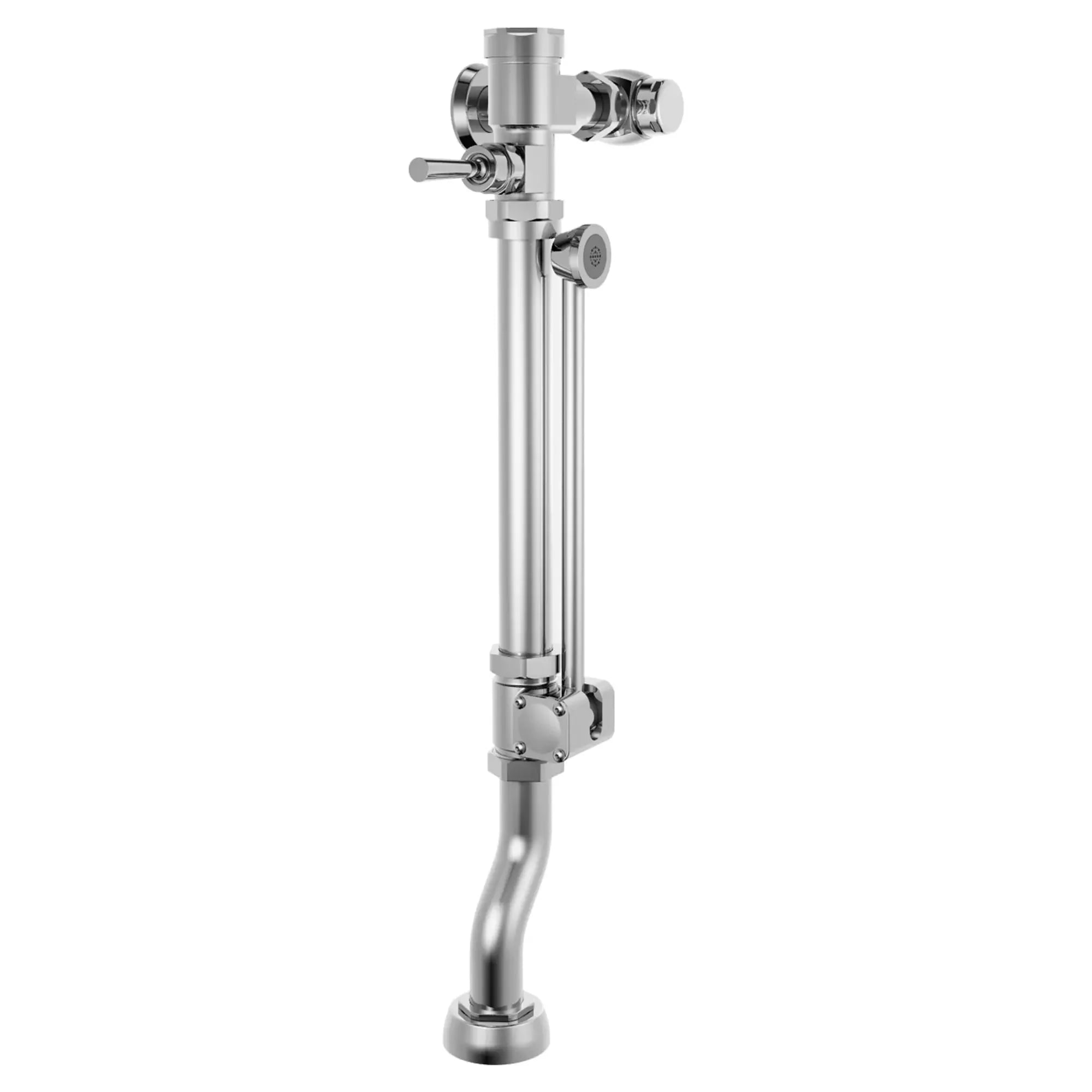

The STANDARD 6047821.002 is a manual piston-type flush valve suitable for toilet installations. This model is equipped with an offset bedpan washer diverter assembly and a counter-balanced pivot. Constructed from durable brass, it includes necessary components such as a stop valve, sweat solder assembly, wall support, and a 1-1/2 spud coupling with flange. Ideal for top spud installation, it achieves a flow rate of 1.28 gallons per flush, adhering to ADA compliance and designed for compatibility with American Standard toilets.

• Piston operation enables precise flushing.
• Includes bedpan washer with an offset down tube.
• Rugged construction from brass for longevity.

Product Highlights

This flush valve is designed for reliability and ease of use, making it a practical choice for commercial and residential installations.

Product Information

Standard Information

• Manufacturer: American Standard
• Part Number: 6047821.002

Technical Specifications

• Flow Rate: 1.28 GPF
• Spud Size: 1.5 inches
• Configuration: Exposed
• Control Type: Manual
• Installation Type: Toilet
• Spud Placement: Top
• Operating Range: 20-125 PSI
• Fitting Material: Brass
• Fitting Connection Size: 1 inch
• Height: 14.063 inches
• Product Weight: 4.8 lbs.
• Finish: Chrome
