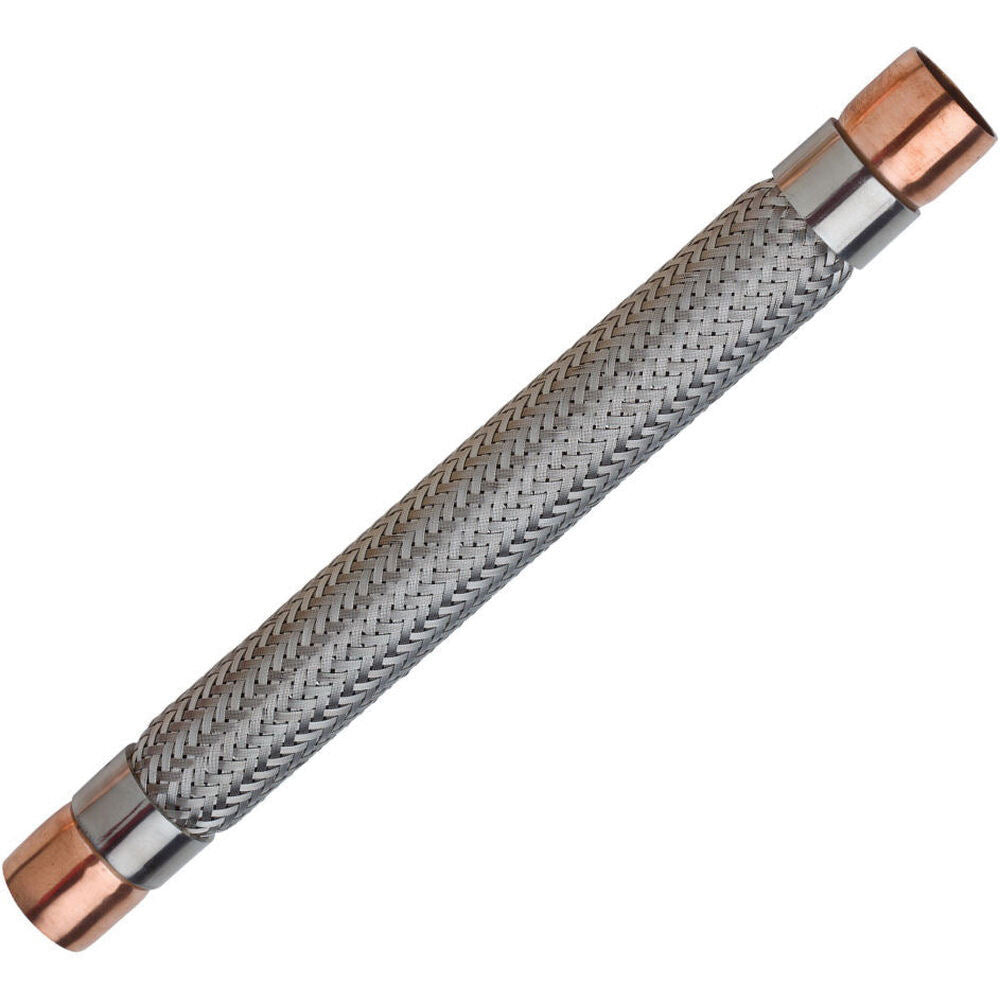

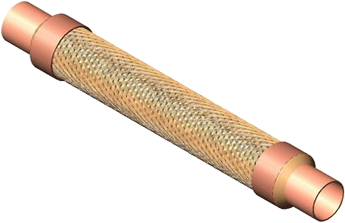

Packless VAFS-9 Vibration Absorber 1-1/8 Inch Tube 13 Inch Length 500 psi

Product Description

The Packless VAFS-9 Vibration Absorber is designed for installation in the suction and discharge lines of air conditioning and refrigeration systems to dampen the transmission of compressor-induced vibration through the system piping. It features high tensile stainless steel braid for superior strength and a 1-1/8 inch tube connection for easy installation.

• Stainless steel flexible tubing
• 1-1/8 inch tube connection
• 500 psi working pressure

Product Highlights

This vibration absorber from Packless is suited for use with all HFC, HCFC, and CFC refrigerants. It is pressure and vacuum tested and then sealed in plastic film to ensure cleanliness and dryness before installation.

Product Information

Standard Information

• Brand: Packless Industries
• Model: VAFS-9

Technical Specifications

• Length: 13 inches
• Material: Stainless steel flex and braid
• End Style: Tube
• Inside Dimensions: 1-1/8 inches
• Burst Pressure Rating: 2500 psi
• Suitable For Use With: Refrigerant
• Max Pressure: 650 psi
• Connection Type: Braze or Solder
