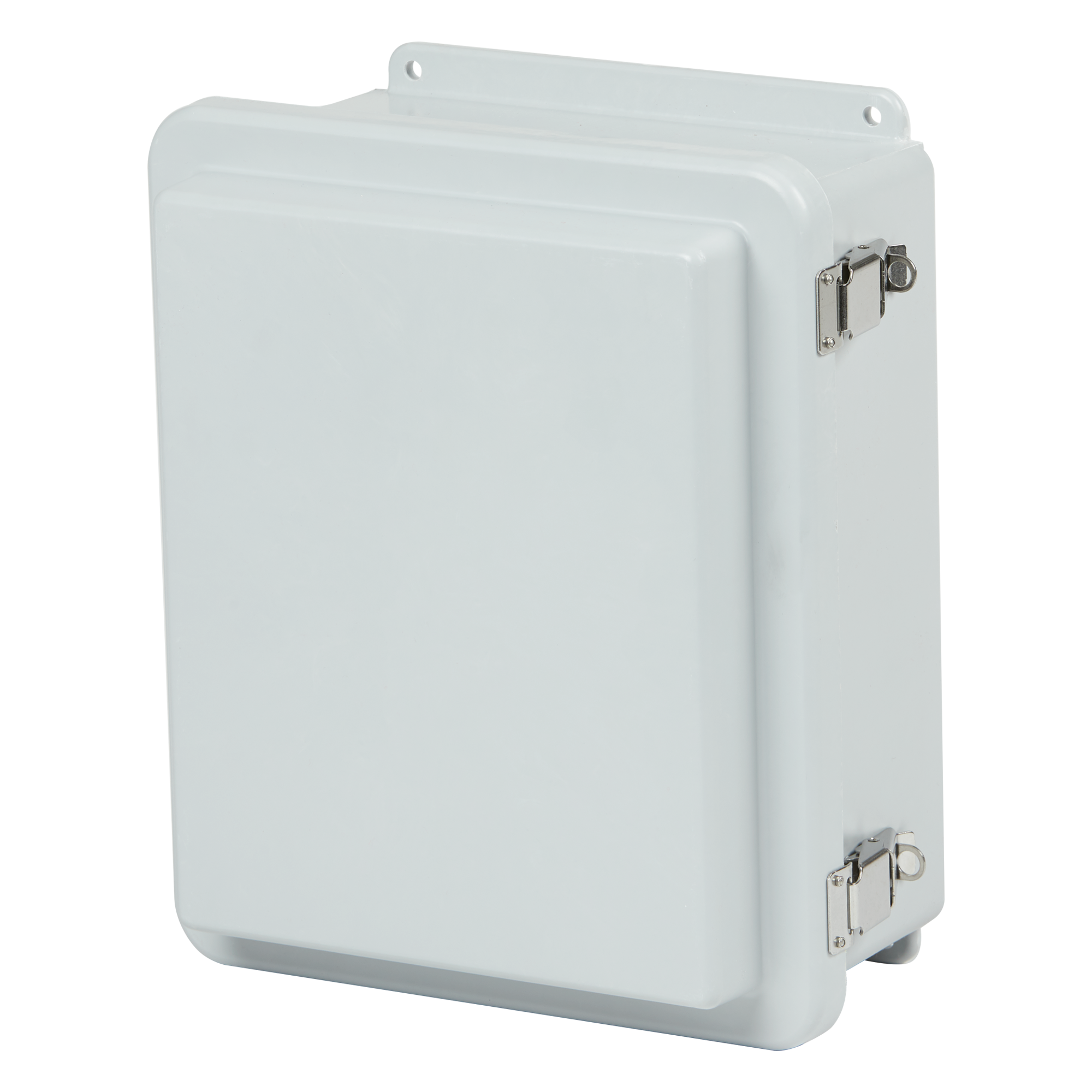

Stahlin RJ806HPL Nema12 Hinged Latch Enclosure 8 x 6 x 6 Inches

Brand: STAHLIN
SKU: RJ806HPL
Availability: Out Of Stock
$322.33
$322.33
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The STAHLIN RJ806HPL Nema12 Hinged Latch Enclosure is designed for electrical and electronic applications in harsh environments. Constructed from hot compression molded fiberglass reinforced polyester, this wall mount enclosure features a hinged, polyurethane gasketed cover with a padlock latch. It is suitable for indoor and outdoor use.

  • NEMA 1/3R/4X/6P/12 rated enclosure
  • Constructed from hot compression molded fiberglass reinforced polyester
  • Features a hinged cover with padlock latch

Product Highlights

This enclosure provides a dusttight and watertight seal, ensuring protection for your equipment in demanding conditions.

Product Information

Standard Information

  • Brand: STAHLIN
  • Manufacturer Part Number: RJ806HPL
  • Country of Origin: USA
Technical Specifications
Enclosure Type
One Door
Height
9-3/8 Inch
Width
7-15/32 Inch
Depth
6-7/32 Inch
Material
Hot Compression Molded Fiberglass Reinforced Polyester
Cover Type
Hinged Raised/Opaque Cover
Back Panel
BP86
Enclosure Rating
NEMA 1/3R/4X/6P/12
Mounting
Wall
Service Type
Indoor/Outdoor
Approval
UL 50, CUL 50, CSA C22.2
External Hardware Material
300 Stainless Steel
Application
Electrical and Electronic and Industrial
Constructional Feature
Dusttight, Watertight
Color
Glacier Gray
Mounting Type
Wall Mount
Back Panel Screw Size
#10-32 x 3/8
Back Panel Recommended Torque
16-20 in-lbs
Back Panel Screw Material
304 SS
Installation Mounting Torque
45 in-lbs Max
Metal Inserts
Brass
Hinge Material
304 SS
Latch Material
304 SS
Gasket Material
Poured In Place (PIP) Polyurethane Seamless
Height (in)
9.63
Width (in)
7.52
Depth (in)
6.2
Height (mm)
244.602
Width (mm)
191.008
Depth (mm)
157.48
Usable Depth (in)
5.49
Usable Depth (mm)
139
Temperature Range °F
-76°F to +274°F
Temperature Range °C
-60°C to +134°C
Flammability Rating
UL94-5VA
NFPA No. 101 Flame Spread
Class A(1)
Outdoor Exposure UL746c
(f1) Rated
Product Category
Enclosures
Product Family
RJ Series
Series
RJ Series
NEMA Rating
4X
Lock
Padlock
Temperature Rating
-76 to 274 deg F
Finish
Smooth
Enclosure Depth
6"
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Interior Color
Gray
Enclosure Composition
Fiberglass
Enclosure NEMA Rating
NEMA Type 6
Enclosure Width
6"
Enclosure Height
8"
Manufacturer
Stahlin
Enclosure Latch Type
Stainless Steel Latch
Enclosure Hinge Type
Stainless Steel Hinge
Line
RJ Series
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Number of Doors
1 Door
Manufacturer Part Number
RJ806HPL
Product Series
J
Family Series
Stahlin Enclosures, J Series
Composition
Non-Metallic
Number of Doors
1
Cover Design
Hinged
Window/Clear Cover
No
Latching Mechanism
Padlockable Latch
Panel Included
No
Nominal Height
8 "
Nominal Width
6 "
Nominal Depth
6 "
