Stahlin N24208HWT Nma4X Hngd Cvr Encl 24 x 20 x 8 Inches

Product Description

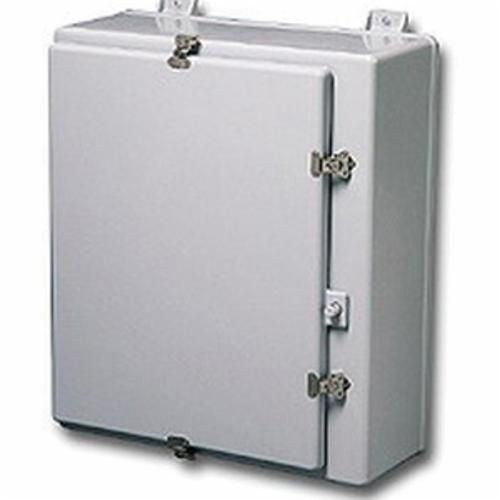

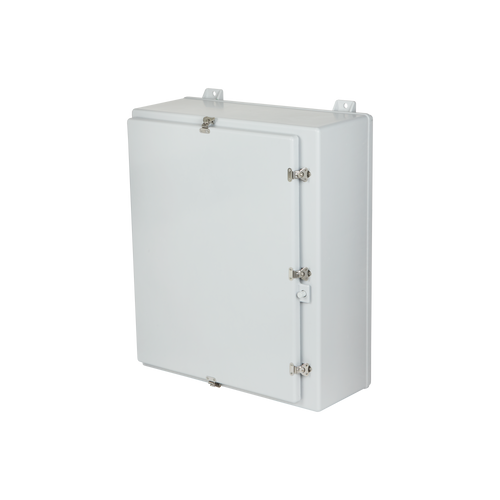

The STAHLIN N24208HWT Nma4X Hngd Cvr Encl is a wall mount enclosure made of hot compression molded fiberglass reinforced polyester. Measuring 24.894 x 21.238 x 8.437 inches, it is suitable for indoor and outdoor service. Designed for use in larger space control systems and machine tool control panels.

• Hinged cover with polyurethane gasket
• Watertight, dusttight, and raintight construction
• NEMA 1/3/3R/4X/12 enclosure rating

Product Highlights

Fiberglass reinforced polyester enclosure with hinged cover, ideal for protecting electrical components in harsh environments.

Product Information

Standard Information

• Brand: STAHLIN
• Manufacturer Part Number: N24208HWT
• Country of Origin: USA

Technical Specifications

• Height: 24.894 Inch
• Width: 21.238 Inch
• Depth: 8.437 Inch
• Material: Hot Compression Molded Fiberglass Reinforced Polyester
• Color: Glacier Gray
• Cover Type: Hinged, Polyurethane Gasketed, Latched Down
• Back Panel: BP2420
• Enclosure NEMA: 1/3/3R/4X/12
• Mounting: Wall
• Service Type: Indoor/Outdoor
• Approval: UL 50, CUL 50, CSA C22.2
• External Hardware Material: 300 Stainless Steel
• Constructional Feature: Watertight, Dusttight and Raintight
• Type: Electrical and Instrument Enclosures
• Finish: Smooth
• IP Rating: IP66
• Application: For larger space control systems and machine tool control panels, They are well suited for both indoor and outdoor environments
• Manufacturer: Stahlin
• Special Features: High temperature; flame-retardant; non corrosive; environmental designs
• Mounting Type: Wall Mount
• Back Panel Screw Size: 3/8-16 x 1/2
• Back Panel Recommended Torque: 28-32 in-lbs
• Back Panel Screw Material: 304 SS
• Installation Mounting Torque: 80 in-lbs Max
• Metal Inserts: Brass
• Hinge Material: 304 SS
• Latch Material: 304 SS
• Gasket Material: Poured In Place (PIP) Polyurethane Seamless
• Height (in): 24
• Width (in): 20
• Depth (in): 8
• Height (mm): 609.6
• Width (mm): 508
• Depth (mm): 203.2
• Usable Depth (in): 8.25
• Usable Depth (mm): 209
• Temperature Range °F: -76°F to +274°F
• Temperature Range °C: -60°C to +134°C
• IEC 62262 Impact Rating Listed: IK10 per File #E362920
• Flammability Rating: UL94-5VA
• NFPA No. 101 Flame Spread: Class A(1)
• Outdoor Exposure UL746c: (f1) Rated
• Series: N Series
• Door: Hinged
• NEMA Rating: NEMA 1, 3R, 4X, 6P, 12
• SubPanel: None
• Length: 24 in
• Temperature Rating: -76 to 274 deg F
• Standard & Approvals: UL E64358 Listed, cUL Listed, CSA File LR069014 Certified, IEC and RoHS Complaint
• Enclosure Depth: 8"
• Enclosure Environment Rating: Outdoor-Indoor
• Enclosure Interior Color: Gray
• Enclosure Composition: Fiberglass
• Enclosure NEMA Rating: NEMA Type 6
• Enclosure Width: 20"
• Enclosure Height: 24"
• Enclosure Latch Type: Stainless Steel Latch
• Enclosure Hinge Type: Stainless Steel Hinge
• Line: N Series
• Enclosure Door Type: Solid
• Enclosure Mount Type: Wall Mount
• Component: Non-Metallic Enclosure
• Enclosure Number of Doors: 1 Door
• NEMA Type 4X: NEMA Type 4X
• Lock: Draw Latch
