STA-RITE SND ProJet Series Shallow Well Jet Pump 3/4HP

Product Description

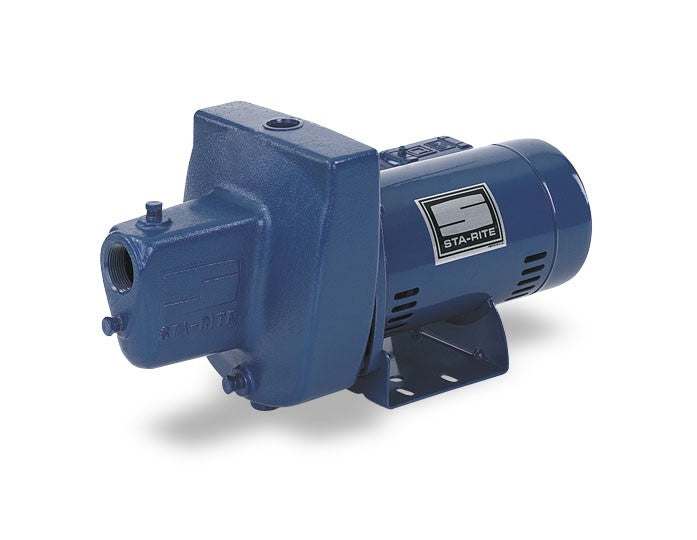

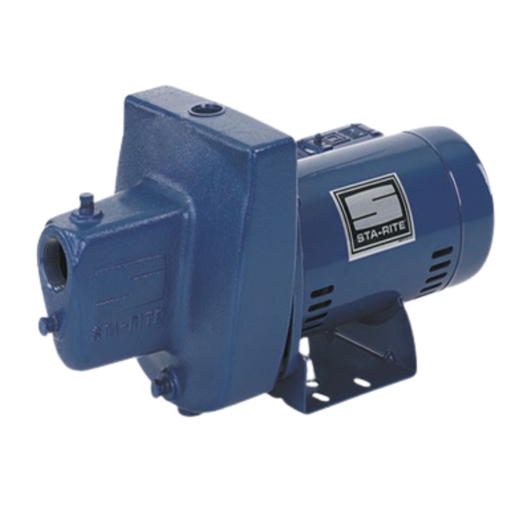

The Sta-Rite SND ProJet Series shallow well jet pump provides strong pressure suitable for wells up to twenty-five feet deep. This pump is self-priming once the priming chamber is filled with water. It features a robust cast iron body and a drain port that assists in winterizing. With its multi-port, precision-molded diffuser, the pump achieves quicker priming and improved air handling capabilities.

• Quality Construction: Close-grained cast iron body with drain port.
• Precision Molded Diffuser: Faster priming and enhanced air handling.
• Motor Windings: Superior materials protect against moisture.

Product Highlights

The Sta-Rite SND pump is designed for reliable performance in shallow well applications, making it an ideal choice for residential and light commercial use.

Product Information

Standard Information

• Brand: Sta-Rite
• Power Source: Corded Electric

Technical Specifications

• Horsepower: 3/4 HP
• Voltage: 115/230V
• Material: Cast Iron, Polypropylene
• Maximum Flow Rate: 11.4 Gallons Per Minute
• Maximum Lifting Height: 25 Feet
• Suction Size: 1-1/4 Inch NPT
• Discharge Size: 1 Inch NPT
• Maximum Temperature: 140 Deg F
• Pump Material: Cast Iron
• Shaft: 416 Stainless Steel
• Tank PSI: 30 to 50 psi
• Dimensions: 22.2 x 12.4 x 11.1 inches
