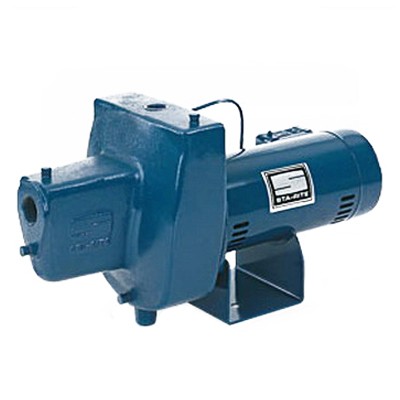

Sta Rite Industries HNE Cast-Iron Shallow Well Jet Pump, 1 HP, 21.4 gpm

Product Description

The Sta-Rite HNE is a cast-iron shallow well jet pump with a horsepower rating of 1 HP. This pump is designed for efficient water extraction from shallow wells, handling a flow rate of 21.4 gallons per minute. It operates on a voltage rating of 115/230V with an ampere rating of 19.2A, suitable for various residential applications.

• Durable cast iron construction
• Noryl impeller for enhanced performance
• Maximum temperature tolerance of 140 degrees Fahrenheit

Product Highlights

This pump features a 1-1/4 inch NPT suction size and a 1 inch NPT discharge size, providing ease of installation and connection to existing plumbing.

Product Information

Standard Information

• Brand: Sta Rite Industries
• MPN: HNE

Technical Specifications

• Ampere Rating: 19.2A
• Voltage Rating: 115/230V
• Horsepower Rating: 1 HP
• Phase: 1-Phase
• Discharge Size: 1 inch NPT
• Suction Size: 1-1/4 inch NPT
• Maximum Temperature: 140 Deg F
• Material: Cast Iron
• Shaft Material: 416 Stainless Steel
• Tank PSI Range: 30 to 50 psi
• Well Capacity: 28.5 gpm
• Length: 21.3 inches
• Width: 10.48 inches
• Standards: cCSAus Certified
