Sta-Kon RE6-14 Nylon Insulated Large Ring Terminal 6 AWG 1.65 In

Product Description

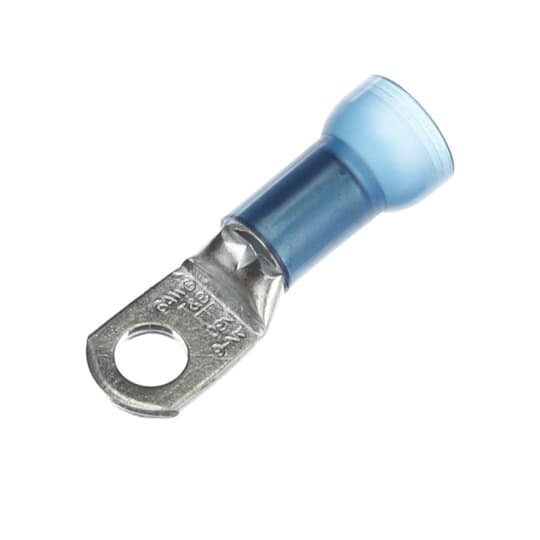

Sta-Kon RE6-14 is a nylon insulated large ring terminal. It is designed for use with six AWG conductors. The terminal has a length of one point sixty-five inches and a bolt hole size of one quarter inch. Its construction includes a brazed and overlapped seam barrel made from copper which is tin plated for corrosion resistance.

• Funnel-shaped barrel entry for easier wire insertion
• Deep internal serrations for a secure grip
• Designed for 600 VAC rating and up to 105 degrees Celsius temperature

Product Highlights

This terminal allows for a strong electrical connection with minimal effort. It is part of the RE series and features a large ring tongue that increases surface area for contact.

Product Information

Standard Information

• Brand: Sta-Kon
• Manufacturer: ABB - Installation Products

Technical Specifications

• Catalog Number: RE6-14
• Conductor Size: 6 AWG
• Stud Size: 1/4 in
• Length: 1.65 in
• Tongue Size: 0.49 in W x 0.04 in THK
• Maximum Insulation Diameter: 0.42 in
• Clearance: 0.28 in
• Voltage Rating: 600 VAC
• Temperature Rating: 105 degrees C
• Material: Copper with tin coating
