Product Description

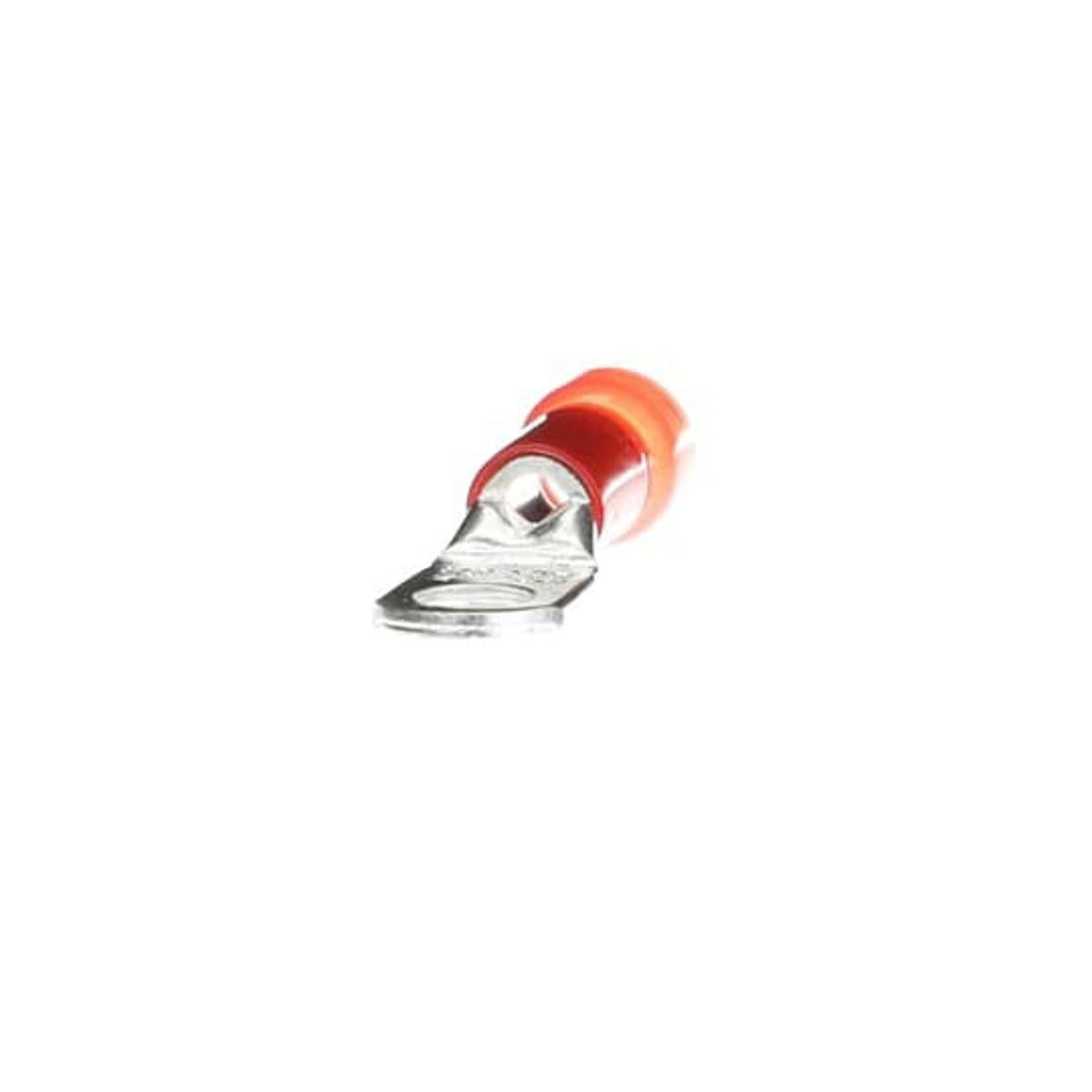

Sta-Kon RD8-14 is an insulated ring terminal designed for use with eight AWG conductors. It features a length of one point five four inches and is ideal for secure electrical connections. This terminal is made from copper and has a brazed or overlapped seam barrel, ensuring reliability in various applications.
- Made of copper with electro-tin plating for corrosion resistance
- Voltage rating of six hundred VAC

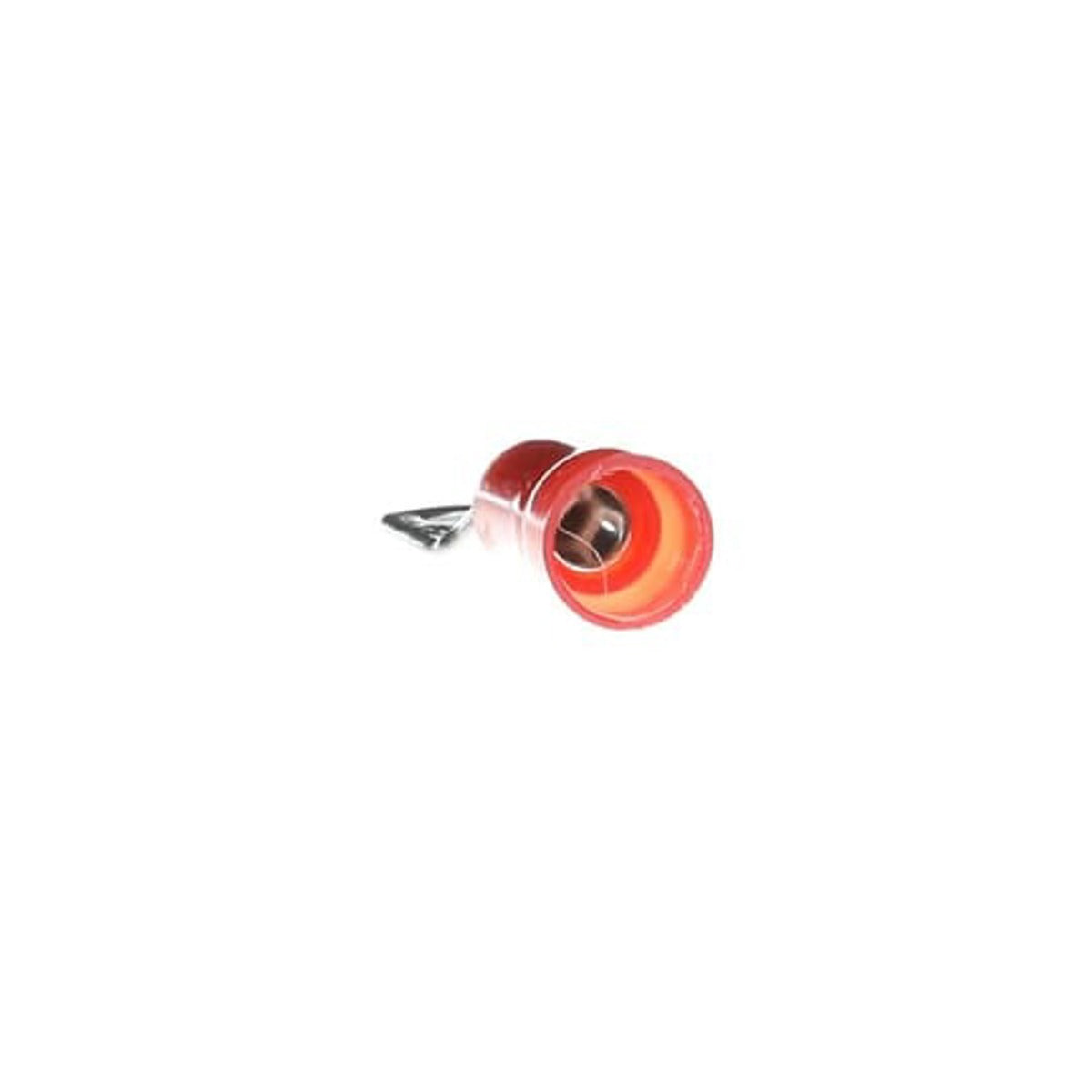

- Includes a funneled barrel entry for easier wire insertion
Product Highlights
The Sta-Kon RD8-14 is built for electrical utility, offering excellent conductivity and a durable structure. It's suitable for use in electrical installations requiring a secure terminal connection.
Product Information
Standard Information
-
Brand: Sta-Kon
-
Manufacturer Part Number: RD8-14
Technical Specifications
-
Conductor Size: 8 AWG
-
Length: 1.54 inches
-
Stud Size: 1/4 inches
-
Barrel Type: Brazed/Overlapped Seam
-
Tongue Size: 0.46 inches W x 0.04 inches THK
-
Voltage Rating: 600 VAC
-
Temperature Rating: 105 degrees C
-
Material: Copper, Tin Coated, Red
