Sta-Kon RD717 nylon insulated large ring terminal 200 pack

Product Description

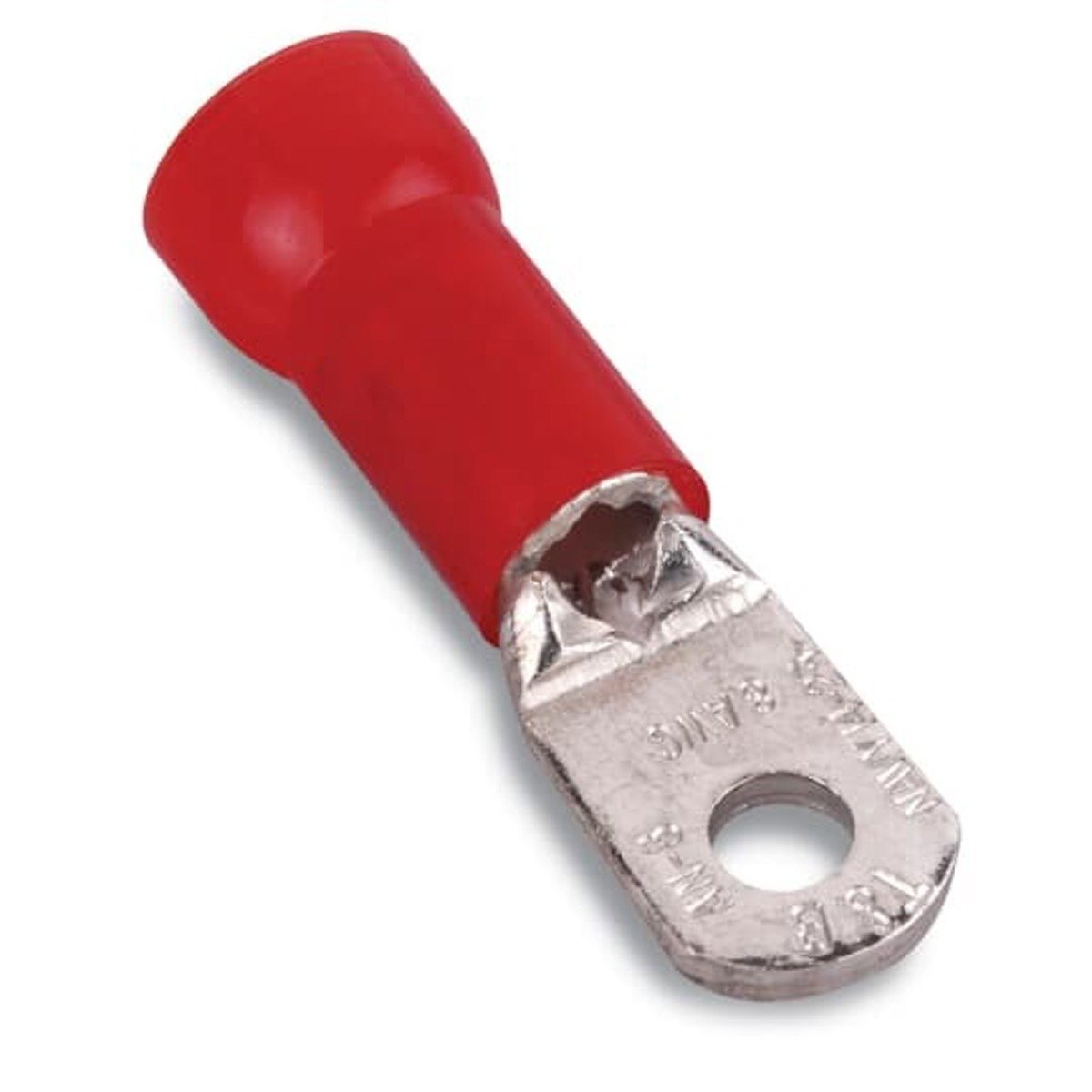

The STA-KON RD717 is a nylon insulated large ring terminal with a length of 1.54 inches and a width of .46 inches. It features a 1/4 inch bolt hole and is designed for wire range 8. The terminal is made of copper with tin plating and comes in a 200 pack. Use cases include electrical wiring and connections.

• Funneled Barrel Entry
• Deep Internal Serrations
• Brazed or overlapping seams
• Nylon Insulated

Product Highlights

Nylon insulated ring terminal with a funneled barrel entry and deep internal serrations for secure wire connections.

Product Information

Standard Information

• Brand: STA-KON
• Manufacturer Part Number: RD717
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: RD717
• Manufacturer: ABB - Installation Products
• Brand: Sta-Kon
• Country of Origin: Mexico
• Made in USA: No
• Material: Copper
• Special Features: Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams
• Standard: UL E9809
• UPC: 786210820613
• GTIN: 00786210820613
• Item Type: Nylon Insulated Ring Terminal
• Voltage Rating: 600 V
• Wire Size: 8 AWG
• Minimum Conductor Size: 9 AWG
• Maximum Conductor Size: 7 AWG
• Insulation Type: Nylon Insulated
• Stud Size: 1/4 Inch
• Temperature Rating: 105 Deg C
• Standard Package: 200
• Approval: UL 486-A, CSA 22.2
• Finish: Electro Tin Plated
• RoHS: RoHS3 Compliant
• REACH: REACH 247 Compliant
• TSCA: TSCA Section 6(h) Compliant
• ETIM: EC001052 Solderless copper terminals for copper conductors
• Flange shape: Ring shape
• Insulation: PA
• Colour insulation: Red
• Reel packaging: N
• Surface protection: Tinned
