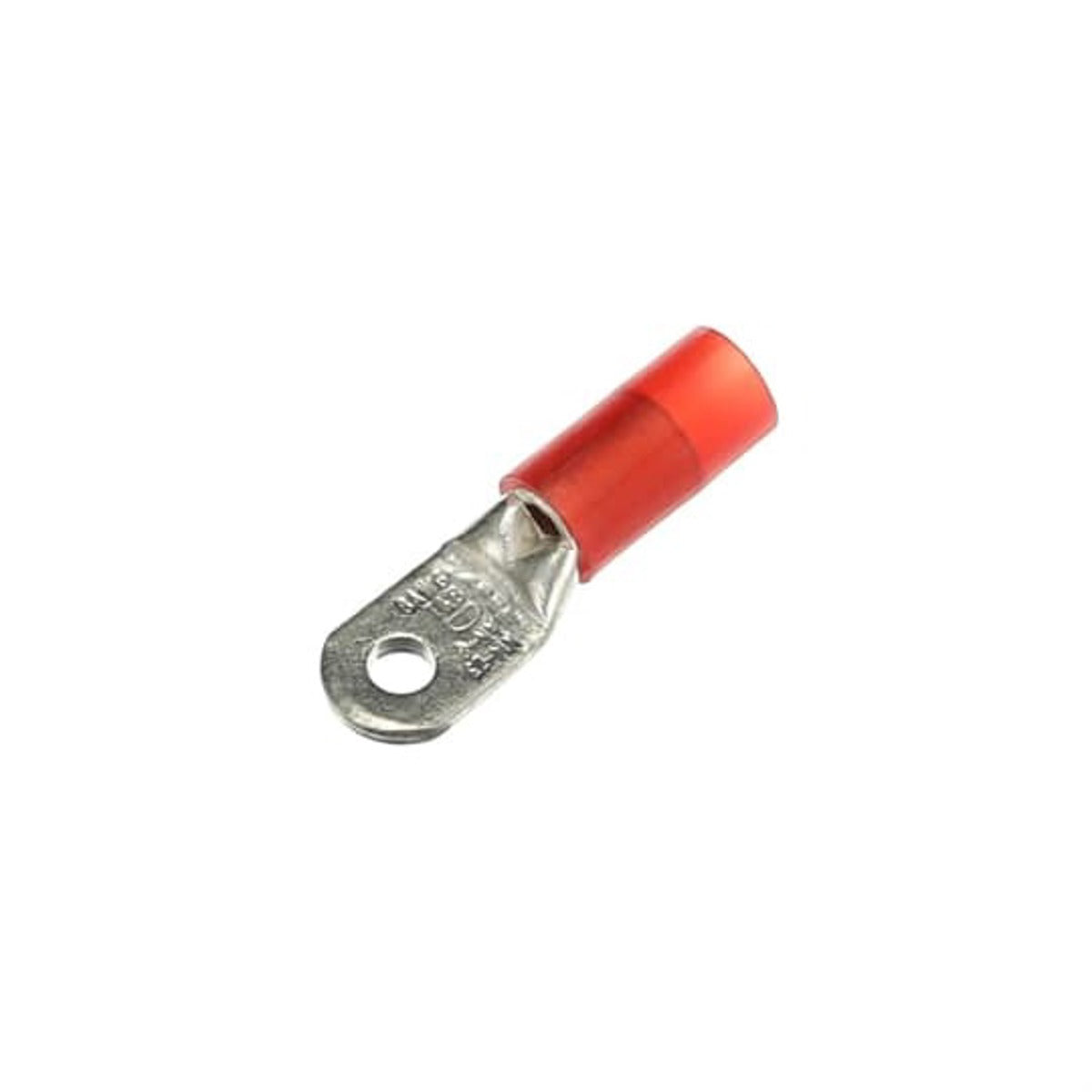

Sta-Kon RD10161 nylon insulated large ring terminal 600 V

Product Description

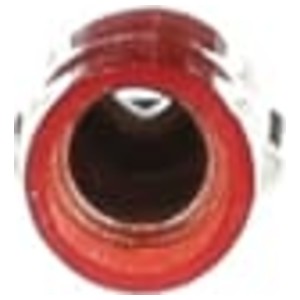

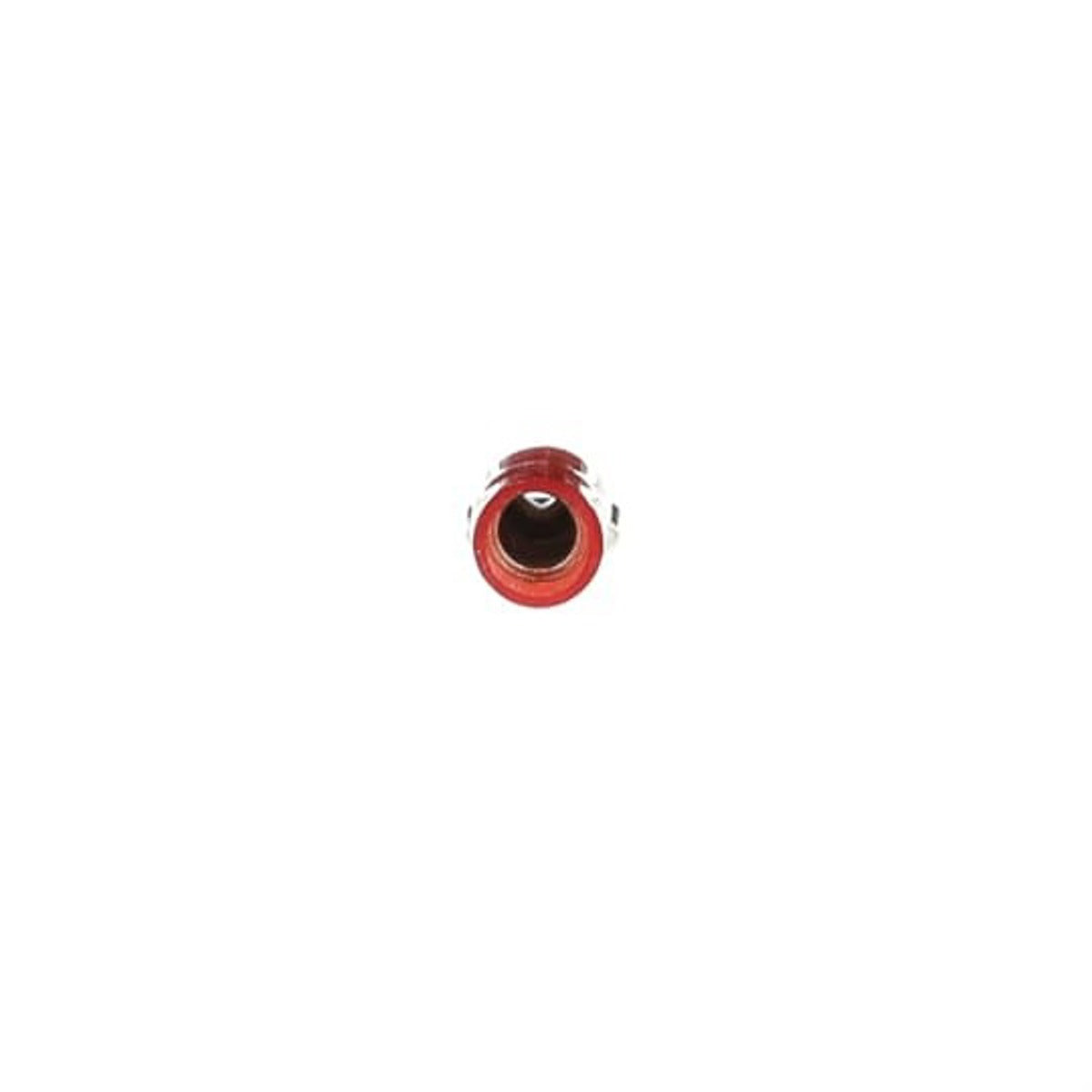

The STA-KON RD10161 is a nylon insulated large ring terminal. This ring terminal features a funneled barrel entry and deep internal serrations. It is constructed of copper with brazed or overlapping seams and is rated for 600V. It accommodates a wire size of 8AN and is designed for use with a #8 bolt hole.

• Funneled Barrel Entry
• Deep Internal Serrations
• Brazed or overlapping seams

Product Highlights

Nylon insulated ring terminal with copper construction, funneled barrel entry, and deep internal serrations for secure connections.

Product Information

Standard Information

• Brand: STA-KON
• Manufacturer Part Number: RD10161
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: RD10161
• Manufacturer: ABB - Installation Products
• Brand: Sta-Kon
• Country of Origin: Mexico
• Made in USA: No
• Material: Copper/Nylon
• Special Features: Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams
• Standard: UL E9809
• UPC: 786210830339
• GTIN: 00786210830339
• Item Type: Nylon Insulated Ring Terminal
• Voltage Rating: 600 V
• Wire Size: 8AN
• Insulation Material: Nylon
• Type: Standard, Funnel Entry
• Minimum Conductor Size: 9 AWG
• Maximum Conductor Size: 7 AWG (Aircraft)
• Insulation Type: Nylon Insulated
• Stud Size: #8
• Temperature Rating: 105 Deg C
• Approval: UL 486-A, CSA 22.2
• Finish: Electro Tin Plated
• RoHS: RoHS3 Compliant
• REACH: REACH 240 Compliant
• TSCA: TSCA Section 6(h) Compliant
• Flange shape: Ring shape
• Insulation: PA
• Colour insulation: Red
• Reel packaging: N
• Surface protection: Tinned
• Stud size (imperial): 8
• Rated Voltage: 600V
• Barrel Type: Brazed/Overlapped Seam
• Conductor Size: 8 AN
• Series: RD Series
• Tongue Type: Large Ring
