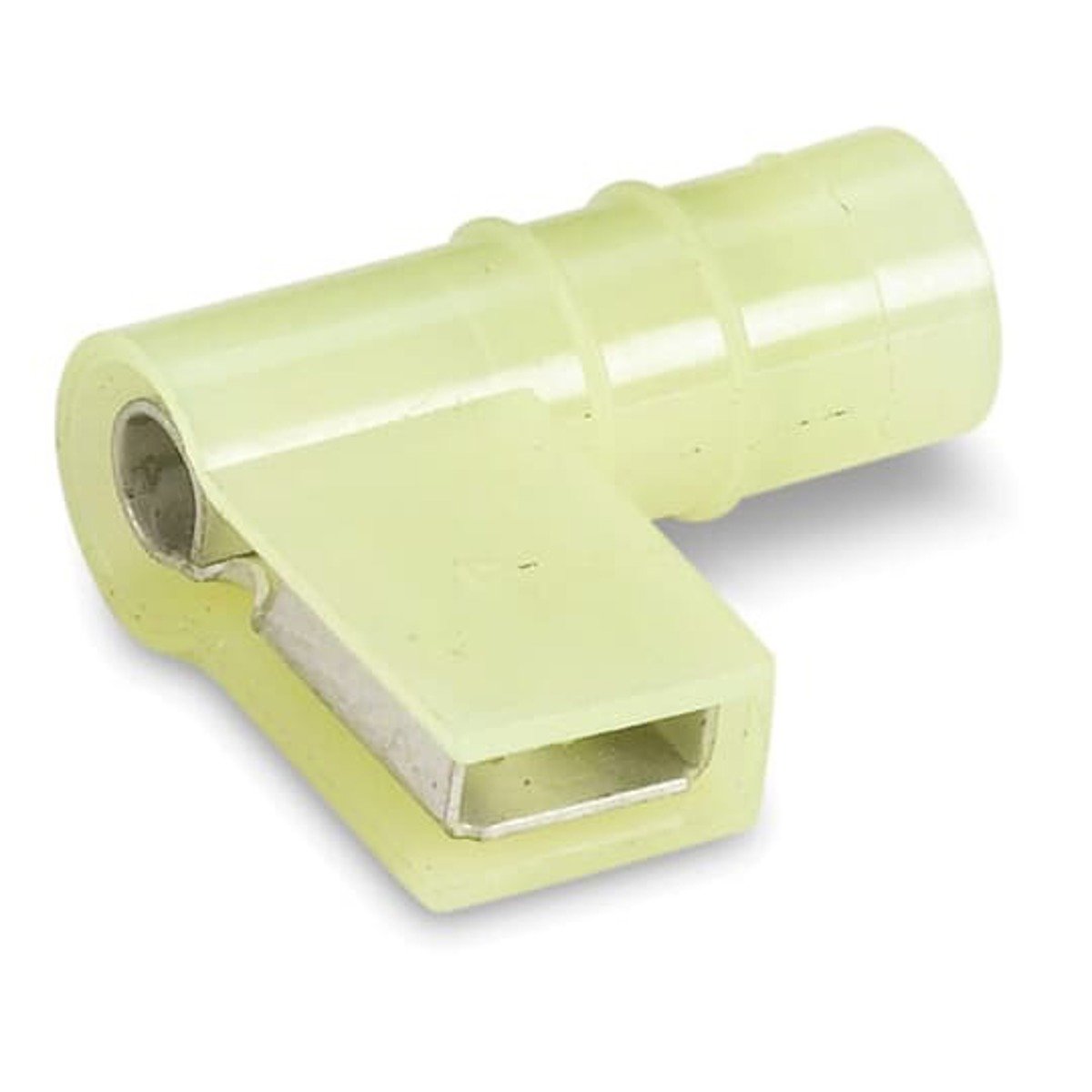

Sta-Kon RC10-250A Nylon Insulated Open Top 90 Degree Flag Female Disconnect Terminal 50 per Pack

Product Description

The STA-KON RC10-250A is a nylon insulated open top 90 degree flag female disconnect terminal. It is designed for wire range #12-#10 AWG and features a brazed seam serrated barrel for maximum tensile strength. The disconnect terminal has a length of 0.80 inch and a width of 0.88 inch with a maximum insulation of 0.245.

• Brazed seam serrated barrel provides maximum tensile strength
• Unique construction offers long-term dependability
• Tab size of 0.250x0.032 inches

Product Highlights

This nylon insulated disconnect terminal features a 90-degree flag design and is suitable for 12-10 AWG wire.

Product Information

Standard Information

• Brand: STA-KON
• Manufacturer Part Number: RC10-250A
• Country of Origin: United States

Technical Specifications

• Catalog Number: RC10-250A
• Manufacturer: ABB - Installation Products
• Brand: Sta-Kon
• Country of Origin: United States
• Made in USA: Yes
• Color: Yellow
• Finish: Tin Plated
• Insulation: Nylon/Polyamide
• Material: Brass
• Special Features: Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength
• Standard: UL E66716
• UPC: 786210894478
• GTIN: 00786210894478
• Item Type: Nylon Insulated Open Top 90 Degree Flag Female Disconnect
• ECCN: EAR99
• UNSPSC: 39121447
• Type: Brazed Seam, Serrated Barrel, Right Angle Flag
• Tab Size: 0.25 Inch x 0.032 Inch
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Temperature Rating: 105 Deg C
• Approval: UL, CSA
• Item: Female Flag Disconnect
• Seam: Brazed
• Standards: UL E66716
• Tab Width: 0.25 in
• Insulation Coverage: Full Coverage
• Max. Temp.: 221 Degrees F
• Seam Style: Brazed
• Wire Range: 12 to 10 AWG
• Barrel Size: Long
• Barrel Style: Funnel Entry
• Max. Voltage: 600 V
• For Wire Size: 10 AWG, 12 AWG
• Tab Thickness: 0.032 in
• Terminal Type: Socket
• Contact Finish: Tin
• Overall Length: 0.8 in
• RoHS Compliant: No
• Terminal Types: Female Socket
• Connection Type: Crimp
• Maximum Voltage: 600 V
• Wire Size Range: 12 AWG - 10 AWG
• Contact Material: Brass
• Disconnect Style: 90 Degree
• Insulation Color: Yellow
• Termination Style: Crimp
• Barrel Inside Dia.: 0.133 in
• Connection Material: Tin-Plated Copper
• Insulation Material: Nylon
• Barrel Inside Diameter: 0.133 in
• Connection Orientation: 90 Degrees Angled
• UL 94 Flammability Rating: Not Rated
• Maximum Operating Temperature: 221 Degrees F
• Country of Origin (subject to change): United States
• Category: Wire terminal disconnect
• RoHS: RoHS3 Compliant
• REACH: REACH 240 Compliant
• TSCA: TSCA Section 6(h) Compliant
• Colour insulation: Yellow
• Material insulation: PA
• AWG-range: 12-10
• MPN: RC10250A
• Gauge: 10 AWG
