Sta-Kon RB873M Terminal Belt Assembly 1000 Pack

Product Description

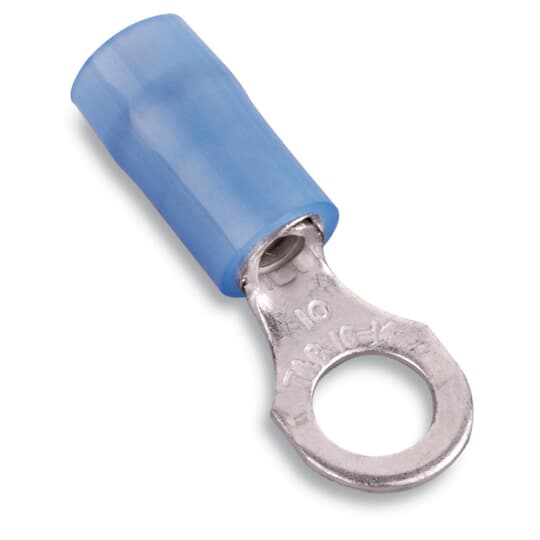

The STA-KON RB873M terminal belt assembly features a nylon insulated ring terminal. It has a length of 0.89 inches and a width of 0.31 inches with a maximum insulation of 0.162. Designed for bolt hole #10 and wire range #18-#14 AWG. Copper, tin plated, and supplied on Mylar tape in a 1,000 pack.

• Nylon Insulated Ring Terminal
• Wire Range #18-#14 AWG
• Supplied on Mylar Tape

Product Highlights

Nylon insulated ring terminal for wiring terminations or connections in automotive, panelboard, and telecommunications applications.

Product Information

Standard Information

• Brand: STA-KON
• Manufacturer Part Number: RB873M

Technical Specifications

• Type: Nylon Insulated Ring Terminal
• Brand: Sta-Kon
• Color: Blue
• Finish: Electro Tin Plated
• Voltage Rating: 600 V
• Material: Copper
• Standard: UL E9809
• Wire Size: 18-14 AWG
• Applications: Wiring terminations or connections for applications such as wiring harness, panelboard, telecommunications, and automotive.
• Conductor Size: 18-14 AWG
• Insulation Type: Insulated Nylon
• Temperature Rating: 105 degrees C
• Stud Size: #10
• Approval: UL 486-A, CSA 22.2
• Includes: Mylar Tape
• Category: Electrical terminals
• RoHS: RoHS3 Compliant
• ETIM: EC001052 Solderless copper terminals for copper conductors
• Flange shape: Ring shape
• Insulation: PA
• Colour insulation: Blue
• Reel packaging: Y
• AWG-range: 18-14
• Surface protection: Tinned
• Stud size (imperial): 10
• Barrel Type: Insulation Grip Sleeve
• Series: RB
• Tongue Type: Ring
• Specifications: 0.162 in Maximum Insulation Dia, 1/4 in Clearance
