Sta-Kon RB2573 Nylon Fully Insulated Female Disconnect 1,000 Pack

Product Description

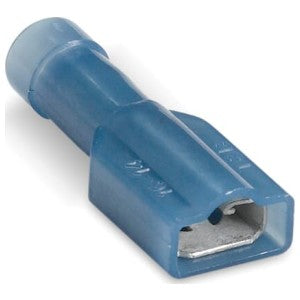

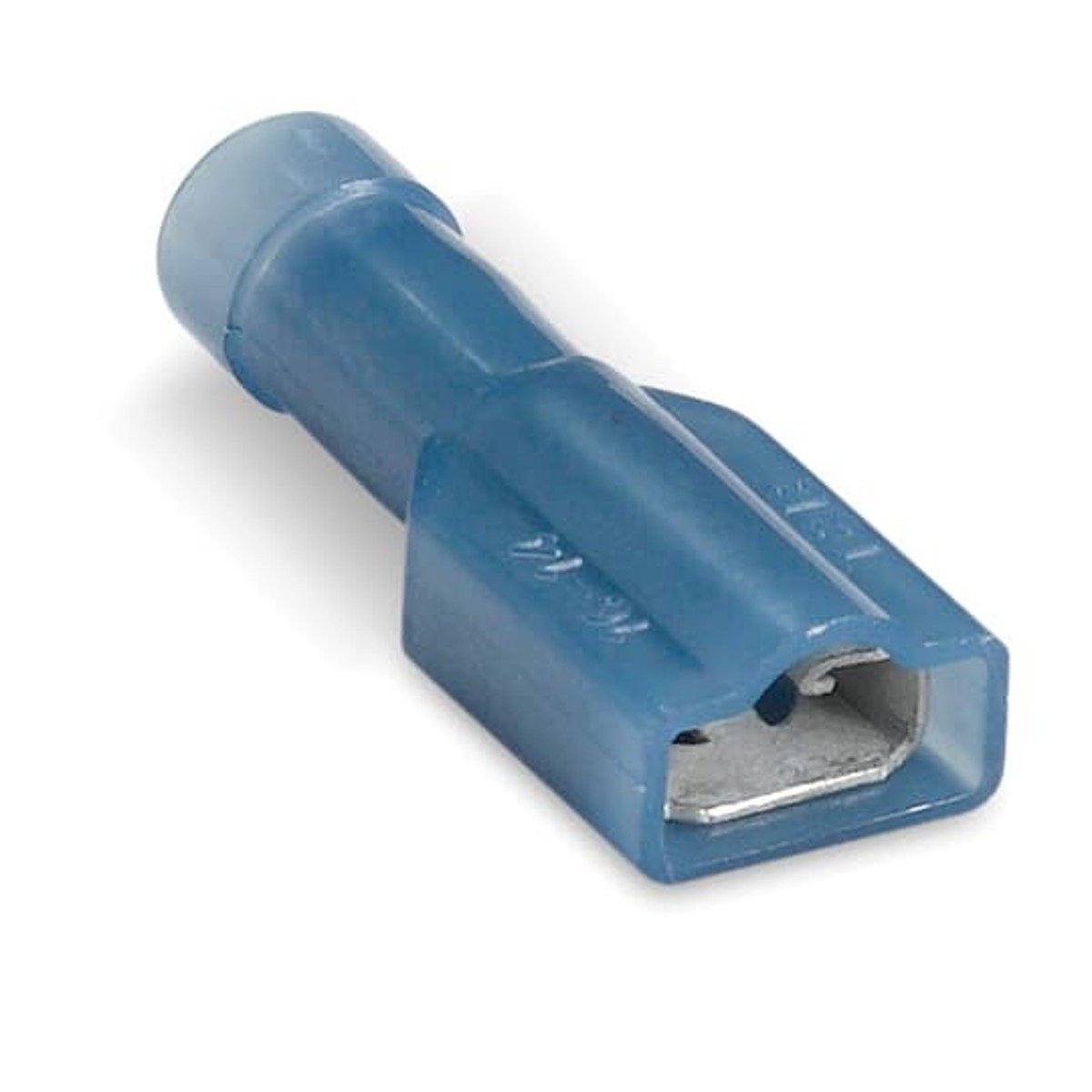

The STA-KON RB2573 is a nylon fully insulated female disconnect. This disconnect features a brazed seam serrated barrel providing maximum tensile strength and is suitable for wire range #16-#14 AWG. The unique construction offers long-term dependability. It has a length of 1.01 inches and a width of 0.38 inches with a maximum insulation of 0.185 inches.

• Brazed seam serrated barrel provides maximum tensile strength
• Wire range: #16-#14 AWG
• Tab Size .250x.032

Product Highlights

Nylon fully insulated female disconnect with brazed seam serrated barrel for long-term dependability and maximum tensile strength.

Product Information

Standard Information

• Brand: STA-KON
• Manufacturer Part Number: RB2573
• Country of Origin: United States

Technical Specifications

• Catalog Number: RB2573
• Manufacturer: ABB - Installation Products
• Brand: Sta-Kon
• Country of Origin: United States
• Made in USA: Yes
• Color: Blue
• Finish: Tin Plated
• Insulation: Nylon/Polyamide
• Material: Brass
• Special Features: Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength
• Standard: UL E66716
• UPC: 786210856803
• GTIN: 00786210856803
• Item Type: Nylon Fully Insulated Female Disconnect
• ECCN: EAR99
• UNSPSC: 39121447
• Insulation Material: Nylon
• Type: Brazed Seam, Serrated Barrel
• Tab Size: 0.25 Inch x 0.032 Inch
• Minimum Conductor Size: 16 AWG
• Maximum Conductor Size: 14 AWG
• Temperature Rating: 105 Deg C
• Category: Wire terminal disconnect
• RoHS: RoHS3 Compliant
• REACH: REACH 240 Compliant
• TSCA: TSCA Section 6(h) Compliant
• ETIM: EC000516 Round or flat plug/receptacle
• Colour insulation: Blue
• Material insulation: PA
• AWG-range: 16-14
