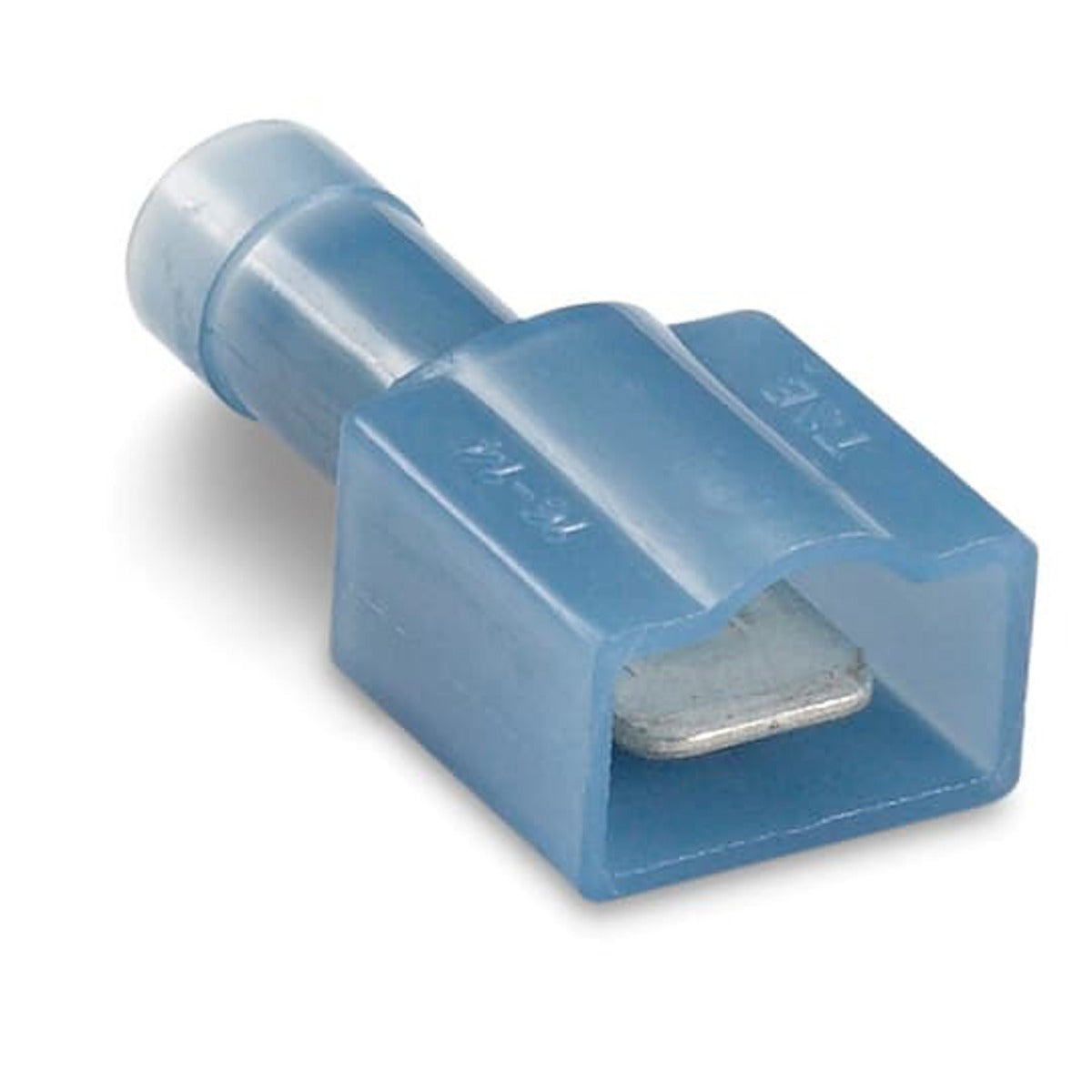

Sta-Kon RB25177M nylon insulated male tab 1,000 Pack

Product Description

The STA-KON RB25177M is a nylon insulated male tab designed for secure wire terminations. This disconnect features a length of 1.13 inches and a width of 0.45 inches, with a maximum insulation of 0.170 inches. It is suitable for wire sizes ranging from #16 to #14 AWG and has a tab size of 0.250x0.032 inches. Comes in a pack of 1,000.

• Nylon insulated for electrical protection
• Suitable for 16-14 AWG wire range
• UL and CSA approved

Product Highlights

This nylon insulated male tab ensures reliable electrical connections for various applications, featuring a durable construction and easy installation.

Product Information

Standard Information

• Brand: STA-KON
• Manufacturer Part Number: RB25177M
• Country of Origin: United States

Technical Specifications

• Catalog Number: RB25177M
• Manufacturer: ABB - Installation Products
• Brand: Sta-Kon
• Country of Origin: United States
• Made in USA: Yes
• Color: Blue
• Material: Brass
• Standard: UL E66716
• UPC: 786210900407
• GTIN: 00786210900407
• Item Type: Nylon Fully Insulated Male Disconnect
• Voltage Rating: 300 V
• Wire Size: 16-14 AWG
• Type: Tab Style
• Tab Size: 0.25 Inch x 0.032 Inch
• Minimum Conductor Size: 16 AWG
• Maximum Conductor Size: 14 AWG
• Insulation Type: Nylon Insulated
• Temperature Rating: 105 Deg C
• Approval: UL, CSA
• Finish: TiN Coated
• Series: 250
• Product Subgroup: Disconnects
• Product Type: Nylon Fully Insulated Male Disconnect
• Standards: UL E66716
• Department: Electrical
• Product Group: Wire Termination
