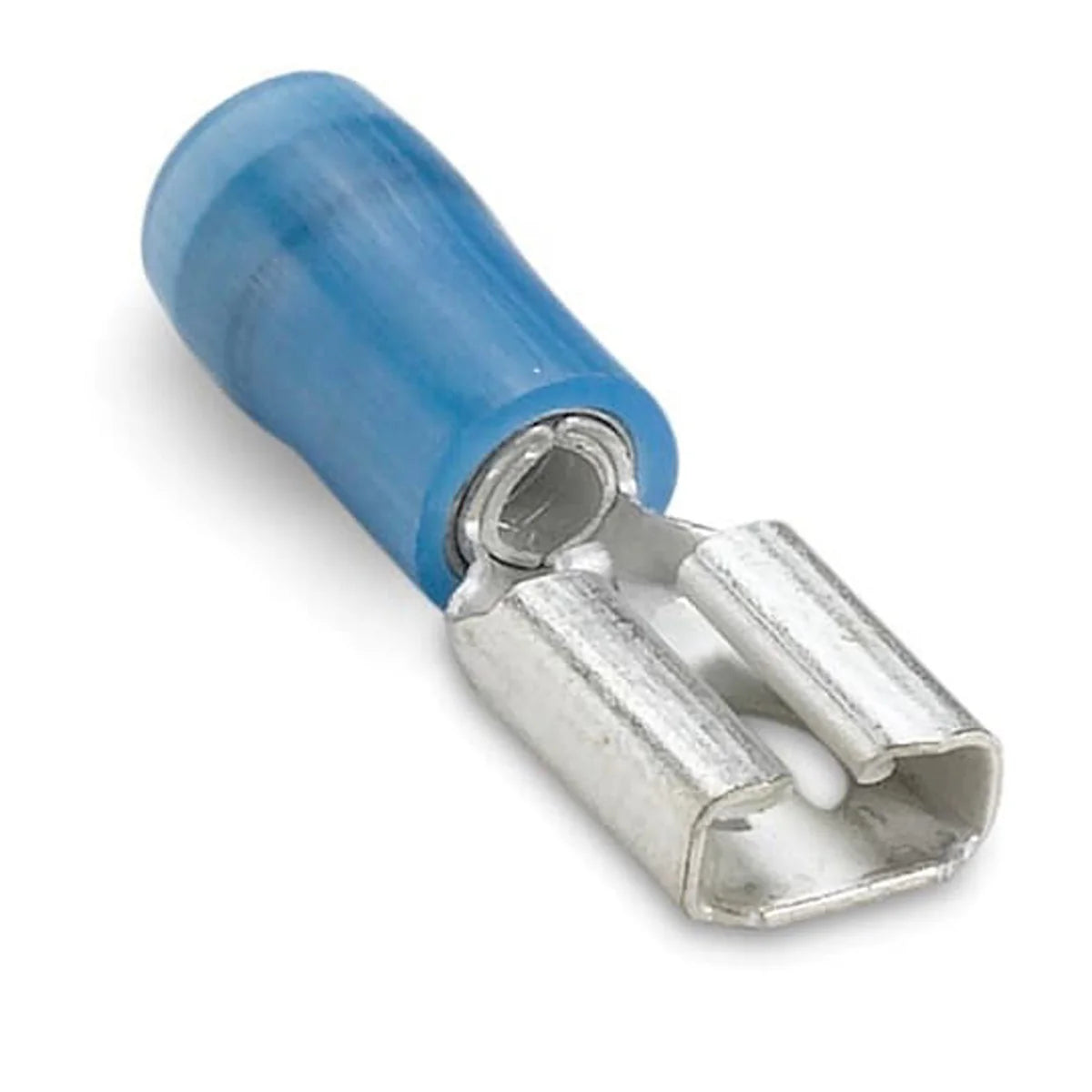

Sta-Kon RB14-250F Female Disconnect 16 to 14 AWG Tab Size 0.25in x 0.032in

Product Description

Sta-Kon RB14-250F is a female disconnect suited for 16 to 14 AWG conductors. This terminal features a brazed seam barrel design for enhanced strength. It is ideal for use in various electrical applications requiring reliable connections.

• Constructed from brass with tinned contacts for better conductivity
• Designed for easy wire insertion with funnel entry
• Uses nylon insulation for added safety and durability

Product Highlights

The Sta-Kon RB14-250F offers a secure fit for 16 to 14 AWG wire sizes. Its robust construction ensures long-lasting performance under demanding conditions.

Product Information

Standard Information

• Brand: Sta-Kon
• MPN: RB14-250F

Technical Specifications

• Conductor Size: 16 to 14 AWG
• Tab Size: 0.25 in W x 0.032 in THK
• Dimensions: 0.91 in L x 0.29 in W
• Voltage Rating: 600 VAC
• Temperature Rating: 105 deg C
• Material: Brass with Electroplated Tin
• Special Features: Brazed seam for maximum tensile strength
• Insulation Type: Nylon
