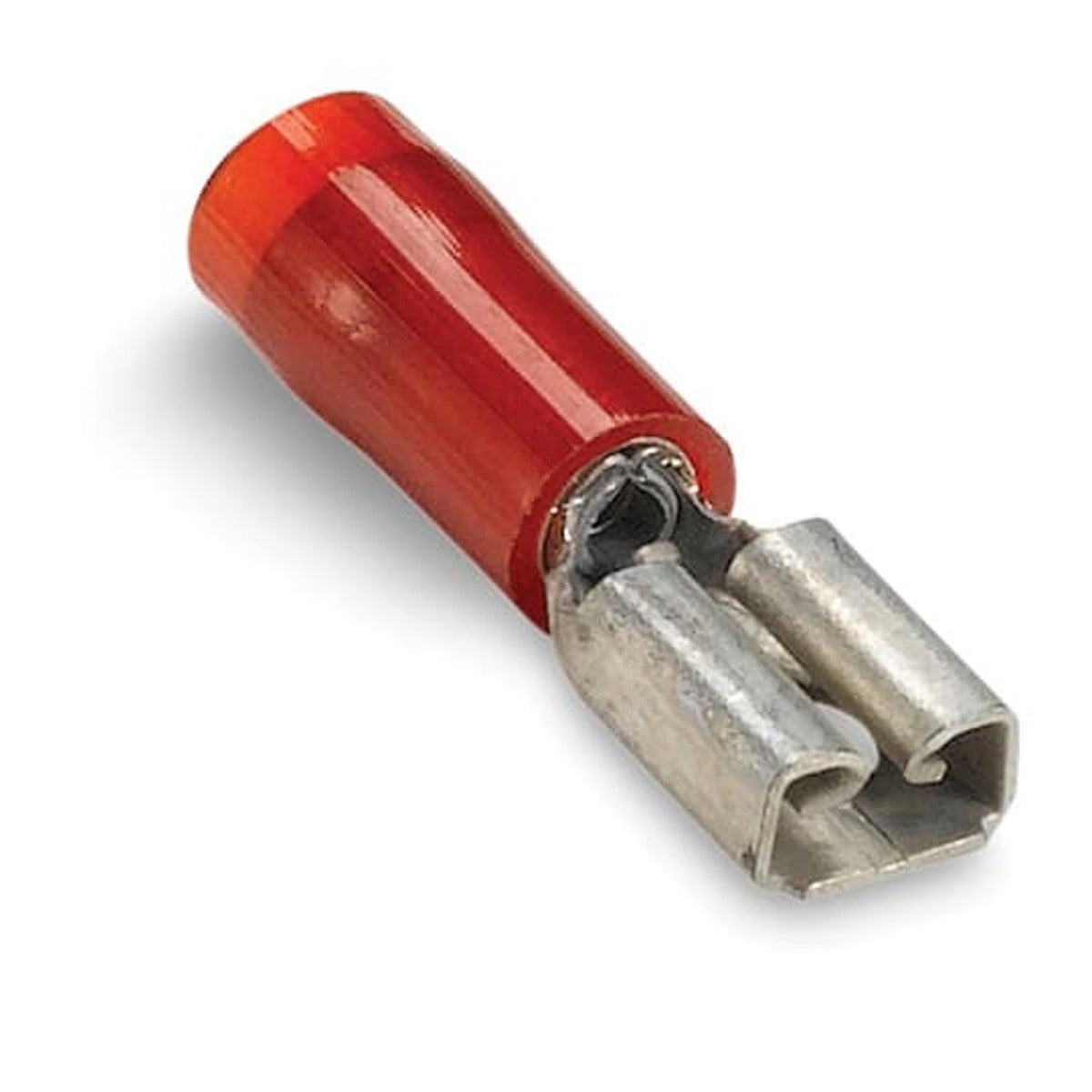

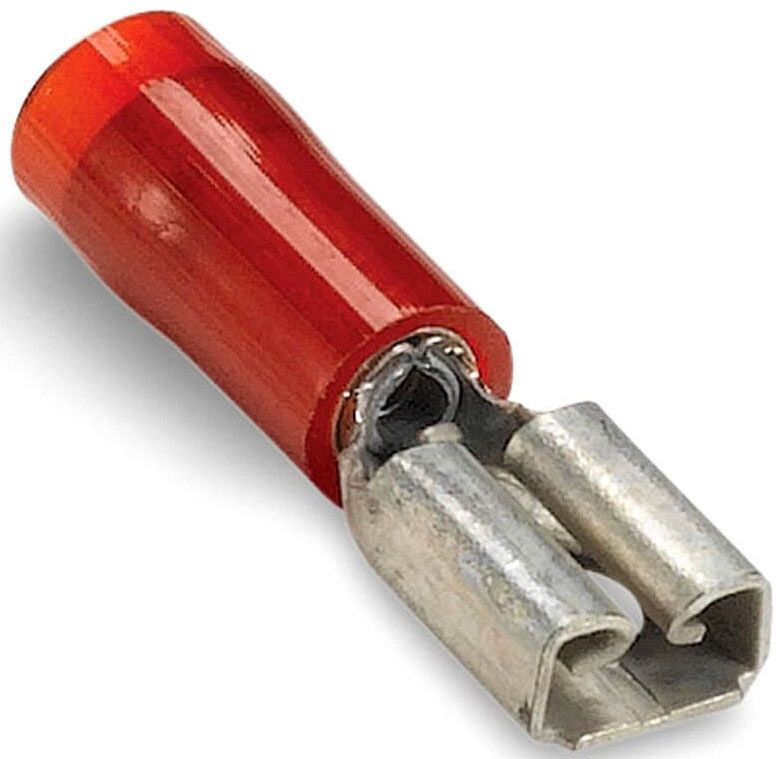

Sta-Kon RAD18-183 Nylon Insulated Female Disconnect 0.83 Inches x 0.23 Inches

Product Description

The Sta-Kon RAD18-183 is a nylon insulated female disconnect suitable for wire sizes ranging from twenty-two to eighteen AWG. It has a length of point eighty-three inches and a width of point twenty-three inches. This disconnect features a maximum insulation diameter of point one three six inches and a tab size of point one eight seven by point zero three two inches.

• Designed for quick connection to terminal blocks.
• Made from brass with a tin-plated finish.
• Standard compliance: UL E66716.

Product Highlights

This female disconnect provides a reliable connection without the need for tools. Its unique construction ensures long-term durability.

Product Information

Standard Information

• Brand: Sta-Kon
• Manufacturer: ABB - Installation Products

Technical Specifications

• Catalog Number: RAD18-183
• Color: Red
• Material: Brass
• Insulation Material: Nylon/Polyamide
• Finish: Tin Plated
• Made in USA: Yes
• Country of Origin: United States
• Special Features: Quick connection method with long-term reliability
