Sta-Kon RA853M Terminal Belt Assembly 22-16 AWG

Brand: STA-KON
SKU: RA853M
Availability: Out Of Stock
$72.42
$72.42
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

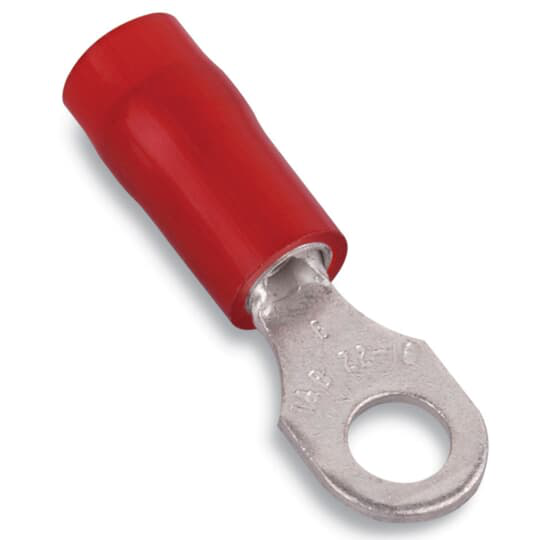

The STA-KON RA853M is a nylon insulated ring terminal with a length of 0.86 inches and a width of 0.26 inches. Accommodating wire sizes from #22-#16 AWG, it features a maximum insulation of 0.136 inches and is designed for a #6 bolt hole. Constructed from copper with tin plating, it is supplied on Mylar tape for ease of use. Suitable for wiring harness, panelboard, telecommunications, and automotive applications.

  • Nylon Insulated
  • Ring Terminal
  • On Mylar Tape

Product Highlights

Nylon insulated ring terminal made from copper with tin plating, suitable for 22-16 AWG wiring.

Product Information

Standard Information

  • Brand: STA-KON
  • Manufacturer Part Number: RA853M
  • Country of Origin: US - United States
Technical Specifications
Type
Insulated
Brand
Sta-Kon
Color
Red
Finish
Electro Tin Plated
Voltage
600 Volt
Material
Copper
Standard
UL E9809
Wire Size
22-16 AWG
Applications
Wiring terminations or connections for applications such as wiring harness, panelboard, telecommunications, and automotive.
Conductor Size
22-16 AWG
Insulation Type
Insulated Nylon
Temperature Rating
105 degrees C
ECCN
EAR99
Country of Origin
US - United States
UNSPSC
39121432
Stud Size
6
Minimum Conductor Size
22 AWG
Maximum Conductor Size
16 AWG
Approval
UL 486-A, CSA 22.2
Includes
Mylar Tape
Category
Electrical terminals
Special Features
Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.
Voltage Rating
600 V
RoHS
RoHS3 Compliant
REACH
REACH 240 Compliant
TSCA
TSCA Section 6(h) Compliant
ETIM
EC001052 Solderless copper terminals for copper conductors
Flange shape
Ring shape
Insulation
PA
Colour insulation
Red
Reel packaging
Y
AWG-range
22-16
Surface protection
Tinned
Stud size (imperial)
6
Length
0.86 in
Barrel Type
Insulation Grip Sleeve
Series
RA
Tongue Type
Ring
Application
For Automotive, Panelboard, Telecommunications, Wiring Harness and Wiring Terminations or Connections
Standard & Approvals
CSA Certified, RoHS compliant, UL listed, UL 94 V-2 Flammability Rating
Catalog ID
T-BRA853M
Dia Maximum Insulation
0.136 in
Clearance
1/4 in
