Product Description

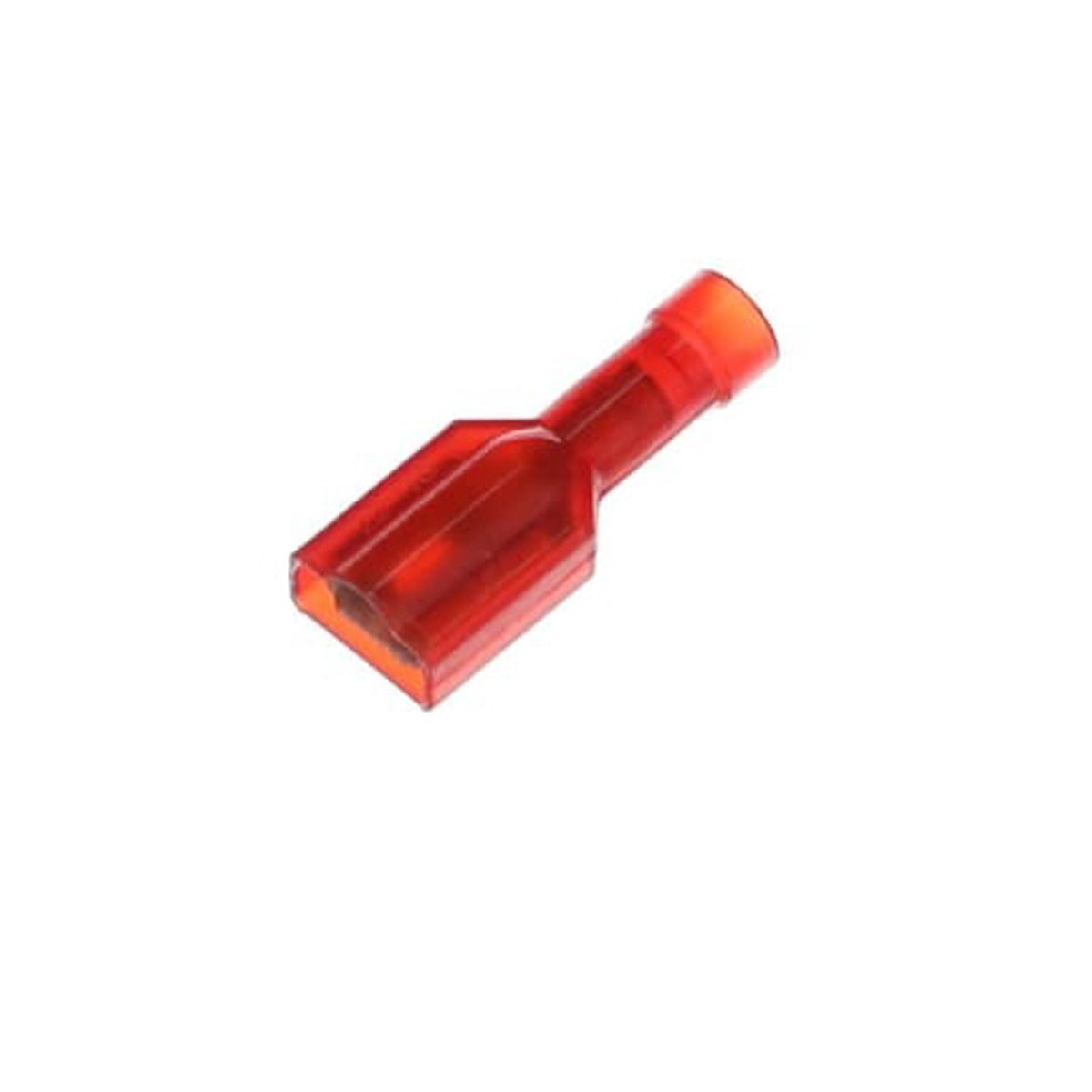

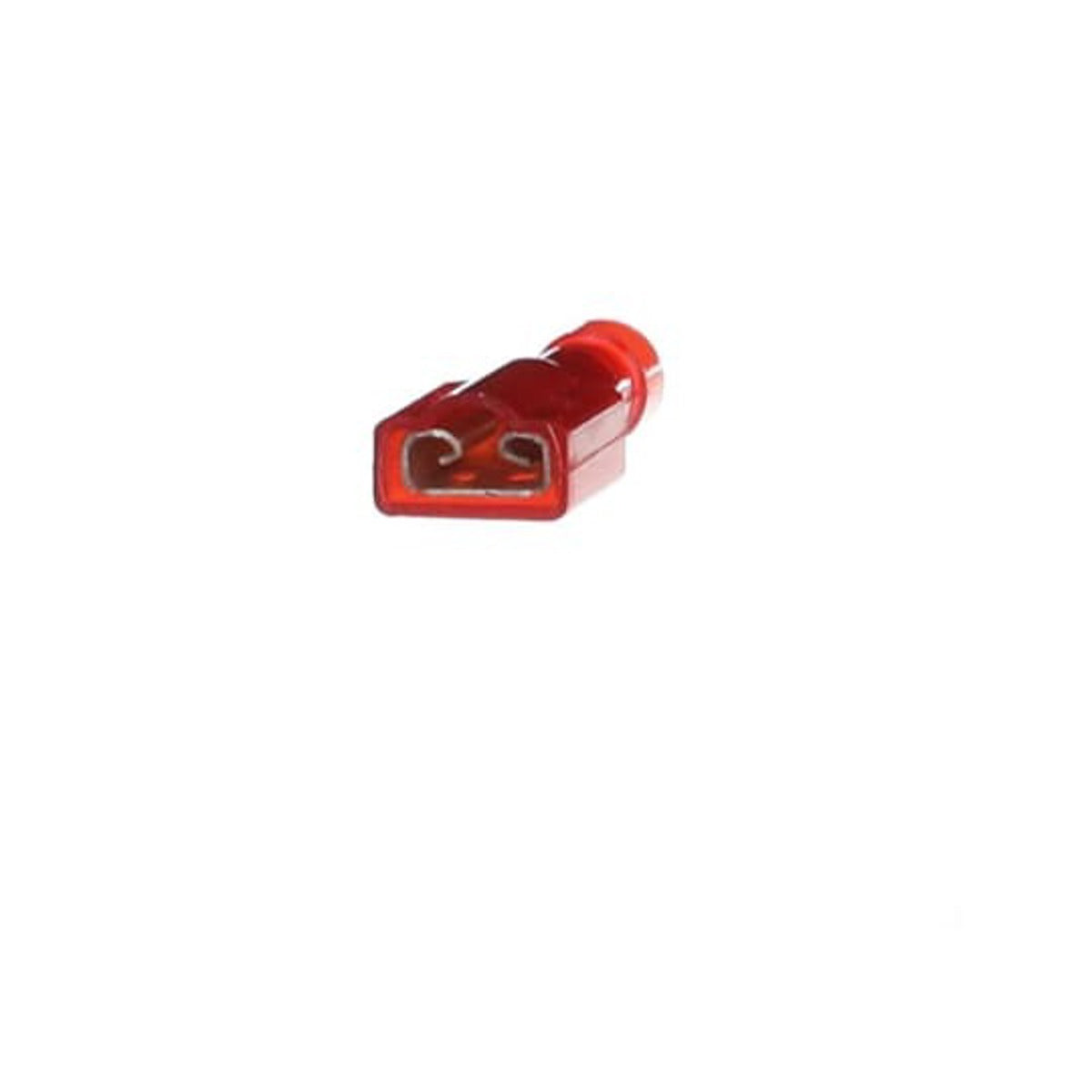

The STA-KON RA2573 is a nylon fully insulated female disconnect. The unique construction of the female disconnect offers long-term dependability. Its brazed seam serrated barrel provides maximum tensile strength and accommodates wire range #22-#18 AWG. It is UL E66716 certified.
- Unique construction offers long-term dependability
- Brazed seam serrated barrel provides maximum tensile strength
- Accommodates wire range #22-#18 AWG
Product Highlights
Nylon fully insulated female disconnect with brazed seam serrated barrel for maximum tensile strength and long-term dependability.
Product Information
Standard Information
-
Brand: STA-KON
-
Manufacturer Part Number: RA2573
-
Country of Origin: United States
Technical Specifications
-
Catalog Number: RA2573
-
Manufacturer: ABB - Installation Products
-
Brand: Sta-Kon
-
Country of Origin: United States
-
Made in USA: Yes
-
Finish: Tin Plated
-
Insulation: Nylon/Polyamide
-
Material: Brass
-
Special Features: Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength
-
Standard: UL E66716
-
UPC: 786210856698
-
GTIN: 00786210856698
-
Item Type: Nylon Fully Insulated Female Disconnect
-
ECCN: EAR99
-
UNSPSC: 39121447
-
Tab Size: 0.25 Inch x 0.032 Inch
-
Minimum Conductor Size: 22 AWG
-
Maximum Conductor Size: 18 AWG
-
Insulation Type: Nylon Fully Insulated
-
Temperature Rating: 105 Deg C
-
Standard Package: 1000 Bulk
-
Approval: UL, CSA
-
Category: Wire terminal disconnect
-
RoHS: RoHS3 Compliant
-
REACH: REACH 240 Compliant
-
TSCA: TSCA Section 6(h) Compliant
-
ETIM: EC000516 Round or flat plug/receptacle
-
Colour insulation: Red
-
Material insulation: PA
-
AWG-range: 22-18
